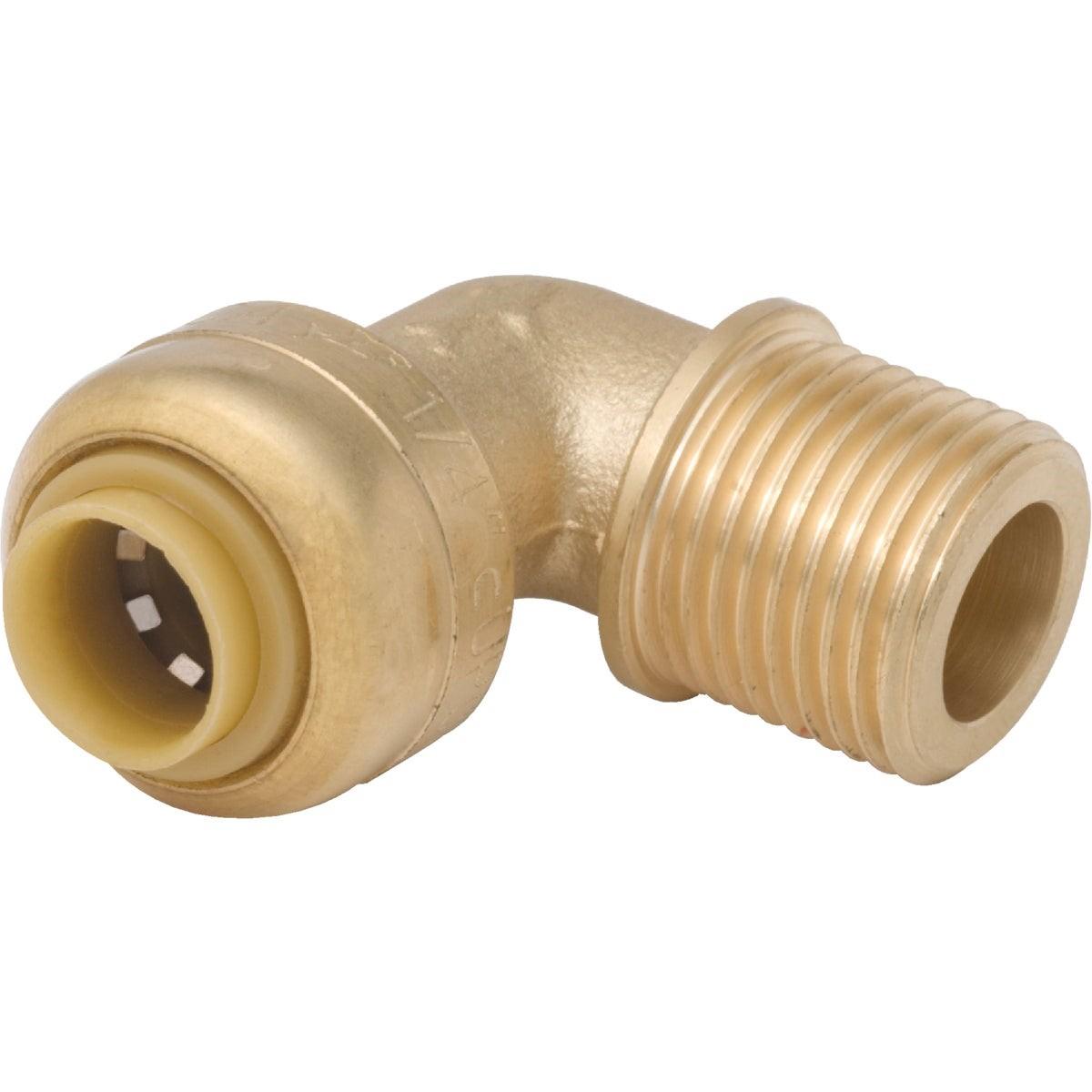

Rwc U276LFA Brass 90 Degree Male Dishwasher Elbow

Product Description

The RWC U276LFA is a push-fit brass 90-degree male elbow designed for dishwasher supply connections and similar close-quarter plumbing applications. The fitting accepts 1/4-inch pipe on one end and 3/8-inch on the other, allowing a direct 90-degree turn without soldering, crimping, or gluing. Push-fit technology seats the pipe securely and can be disconnected with a release collar when service or replacement is required. Rated to 200 psi and 200 degrees F, the fitting is certified for potable water and hydronic systems. Lead content on wetted surfaces is held to no more than 0.25 percent weighted average, meeting current safe-drinking-water standards.

This elbow suits residential and light commercial plumbing installations where a quick, reliable transition fitting is needed at a 90-degree angle. It is particularly common in dishwasher supply line hookups where the supply stub must turn sharply to meet the appliance inlet. The fitting works with copper, CPVC, and PEX pipe in any combination, making it useful for mixed-material installations or repairs without the need to match pipe type.

Key Features

• Push-fit connection requires no solder, glue, or clamps
• Compatible with copper, CPVC, and PEX pipe in any combination
• Rated to 200 psi and 200 degrees F for reliable pressure and temperature performance
• Certified for potable water and hydronic systems per ASSE 1061 and NSF 61
• Removable and reusable with standard push-fit disconnect collar
• Wetted surface lead content no more than 0.25 percent weighted average

Compatibility

Designed for use with copper, CPVC, and PEX pipe in any combination. Suitable as a 1/4-inch x 3/8-inch 90-degree male elbow fitting in residential dishwasher supply and general push-fit plumbing applications.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople. Shut off the water supply and relieve system pressure before making or breaking any fitting connection. Cut pipe square and deburr the end before inserting into the push-fit collar to ensure a full, leak-free seat. Work must comply with applicable local plumbing codes and IPC requirements for push-fit fittings in the intended service environment.

Technical Specifications

• Inlet Size: 1/4 inches
• Outlet Size: 3/8 inches
• Angle: 90 degrees
• Material: Brass
• Maximum Pressure Rating: 200 psi
• Maximum Temperature Rating: 200 degrees F
• Lead Content (Wetted Surfaces): 0.25 percent weighted average maximum
• Certifications: ASSE 1061, NSF 61
• Weight: 0.161 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U276LFA
