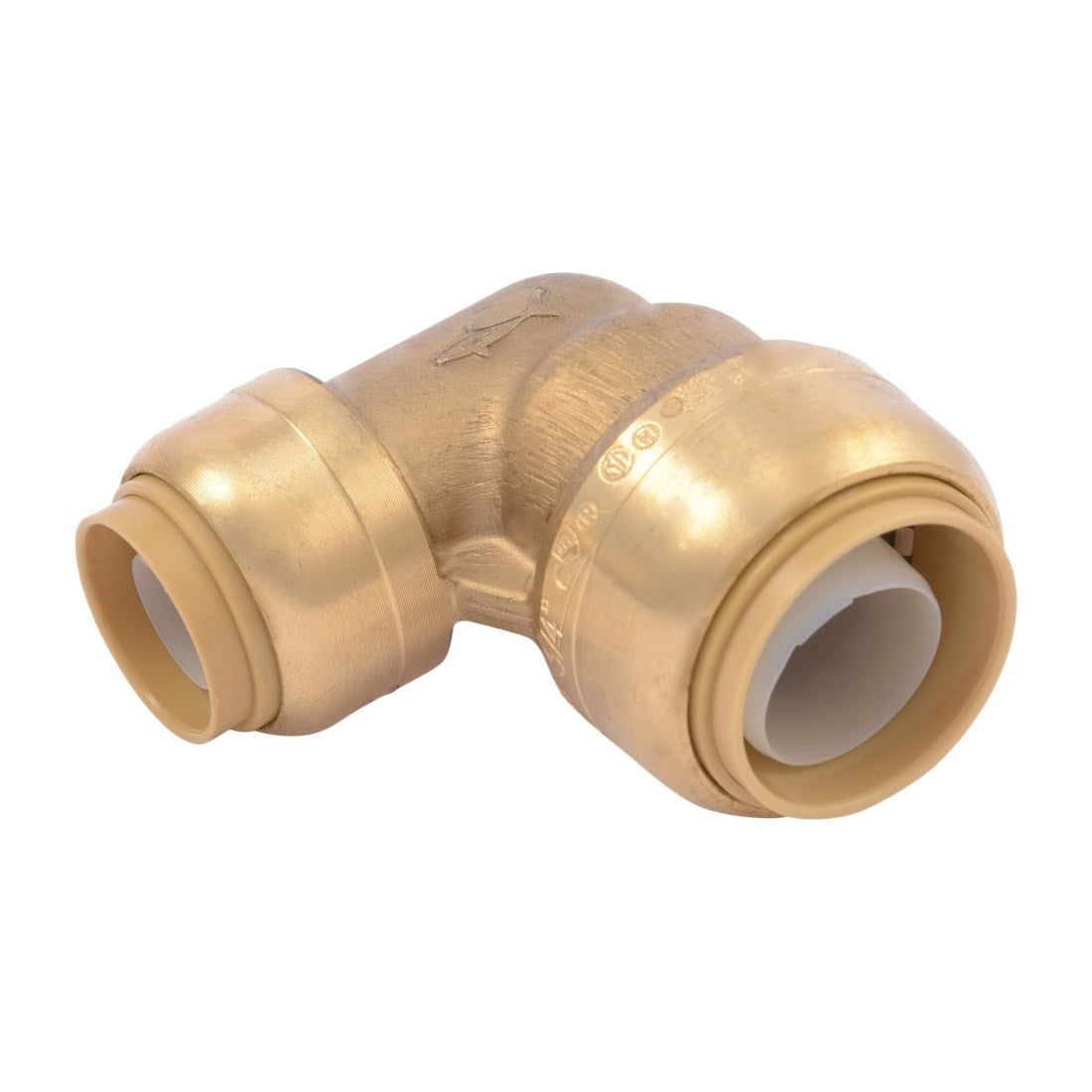

Rwc U274LF Pipe Reducing Elbow 3/4 X 1/2 Inch Push-fit

Product Description

The RWC U274LF is a brass push-fit pipe reducing elbow designed to transition between 3/4-inch and 1/2-inch nominal pipe in a 90-degree change of direction. The push-fit end style allows for tool-free, solderless connections, making it a fast and reliable option for water distribution systems. The lead-free brass construction meets potable water requirements. Licensed plumbers install this fitting in residential and light commercial plumbing applications where a direction change and pipe size reduction are needed in a single component.

This reducing elbow is suited for residential and light commercial water supply lines. It is commonly used where a main 3/4-inch supply run needs to reduce to a 1/2-inch branch line while also changing direction. The push-fit design works with copper, CPVC, and PEX pipe, eliminating the need for soldering, crimping, or special tooling at the connection point.

Key Features

• Push-fit end style allows tool-free, solderless installation
• Reduces 3/4-inch nominal to 1/2-inch nominal in a single fitting
• 90-degree elbow geometry combines direction change and reduction
• Lead-free brass construction suitable for potable water systems
• Compatible with copper, CPVC, and PEX pipe types

Compatibility

Designed as an OEM-style replacement or direct-install push-fit reducing elbow for residential and light commercial potable water supply systems using 3/4-inch and 1/2-inch nominal pipe.

Installation Notes

Installation is performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) or local code requirements. Shut off the water supply and depressurize the line before making any connections. Ensure pipe ends are cut cleanly and deburred before inserting into the push-fit fitting to achieve a proper seal. Do not exceed the pressure or temperature ratings for the fitting or the connected pipe material.

Technical Specifications

• Inlet Size: 3/4 inches nominal
• Outlet Size: 1/2 inches nominal
• End Style: Push-Fit
• Material: Brass
• Lead-Free: Yes
• Configuration: 90-Degree Reducing Elbow

Standard Information

• Brand: RWC
• Manufacturer Part Number: U274LF
