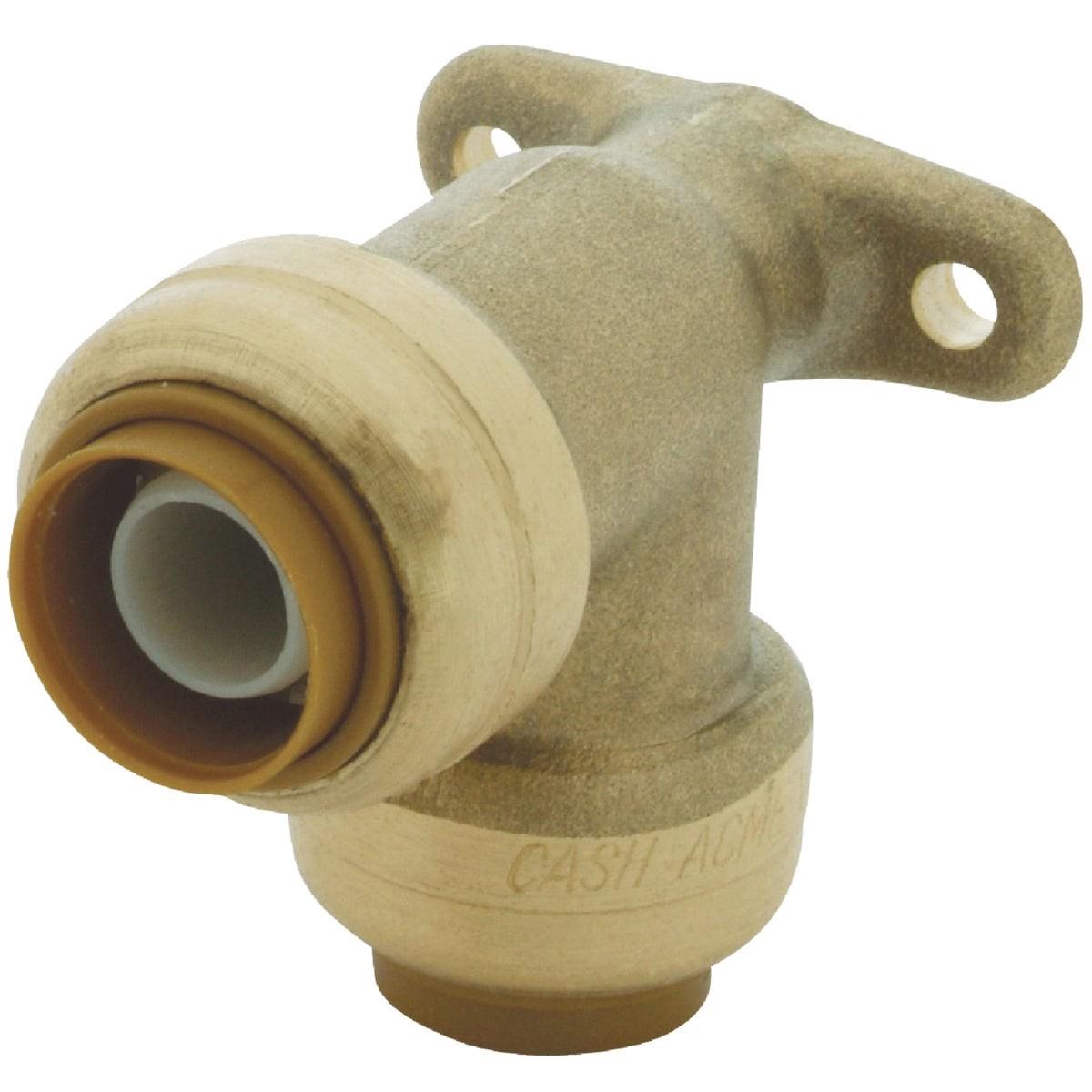

Rwc U249LFA 1/2 in Push-to-connect 90 Deg Drop Ear Elbow

Product Description

The RWC U249LFA is a 1/2-inch push-to-connect drop ear brass elbow designed for fast, tool-free connections in residential and light commercial plumbing systems. This 90-degree fitting is constructed from one-piece DZR brass and is rated for service up to 200 degrees F and 200 psi. The drop ear configuration provides a wall-mount anchor point, making it a practical solution for shower arm stubs, tub spout drops, and similar fixture tie-ins. Licensed plumbers and experienced tradespeople install this fitting without soldering, crimping, or compression tools. It ships individually bagged and weighs 0.242 pounds.

This fitting is suitable for potable water distribution in residential and commercial applications. It connects directly to copper, PEX, and CPVC pipe without adapters or transition fittings. The drop ear design mounts to framing or blocking before drywall installation, making it well suited for new construction rough-in and remodel work where wall-outlet positioning is required. Because fittings can be buried and placed behind drywall, installers can complete rough-in with confidence in long-term joint integrity.

Key Features

• Push-to-connect design installs without soldering, crimping, or special tooling
• One-piece DZR brass construction resists dezincification corrosion
• Rated to 200 degrees F and 200 psi for reliable performance in demanding service conditions
• Compatible with copper, PEX, and CPVC pipe — no transition fittings required
• Drop ear configuration provides integral wall-mount flange for fixture stub-out applications
• Removable and reusable, reducing waste during inspection or system changes
• Lead content held to no more than 0.25% weighted average on wetted surfaces, meeting low-lead requirements

Compatibility

Compatible with 1/2-inch copper, PEX, and CPVC pipe. Fittings can be buried in walls and placed behind drywall. Approved for potable water service per UPC, IAPMO, and NSF-61 certification.

Installation Notes

Installation is performed by a licensed plumber in accordance with the applicable plumbing code, including IPC and UPC requirements. Before installing or removing the fitting, shut off the water supply and depressurize the line. Ensure pipe ends are cut square, deburred, and clean before insertion to the depth mark. The fitting is removable with a disconnect clip or tool; never force the collet without releasing it properly, as this can damage the internal grab ring.

Technical Specifications

• Inlet Size: 1/2 inches push-to-connect
• Outlet Size: 1/2 inches push-to-connect
• Angle: 90 degrees (1/4 bend)
• Fitting Type: Drop Ear Elbow
• Material: One-piece DZR brass
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 degrees F
• Compatible Pipe Types: Copper, PEX, CPVC
• Lead Content: No more than 0.25% weighted average on wetted surfaces
• Weight: 0.242 pounds
• Certifications: UPC, IAPMO, NSF-61
• Sold As: Each, individually bagged

Standard Information

• Brand: RWC
• Manufacturer Part Number: U249LFA
