Rwc U118LFA Brass Push-to-connect Male Adapter 3/8x1/2

Product Description

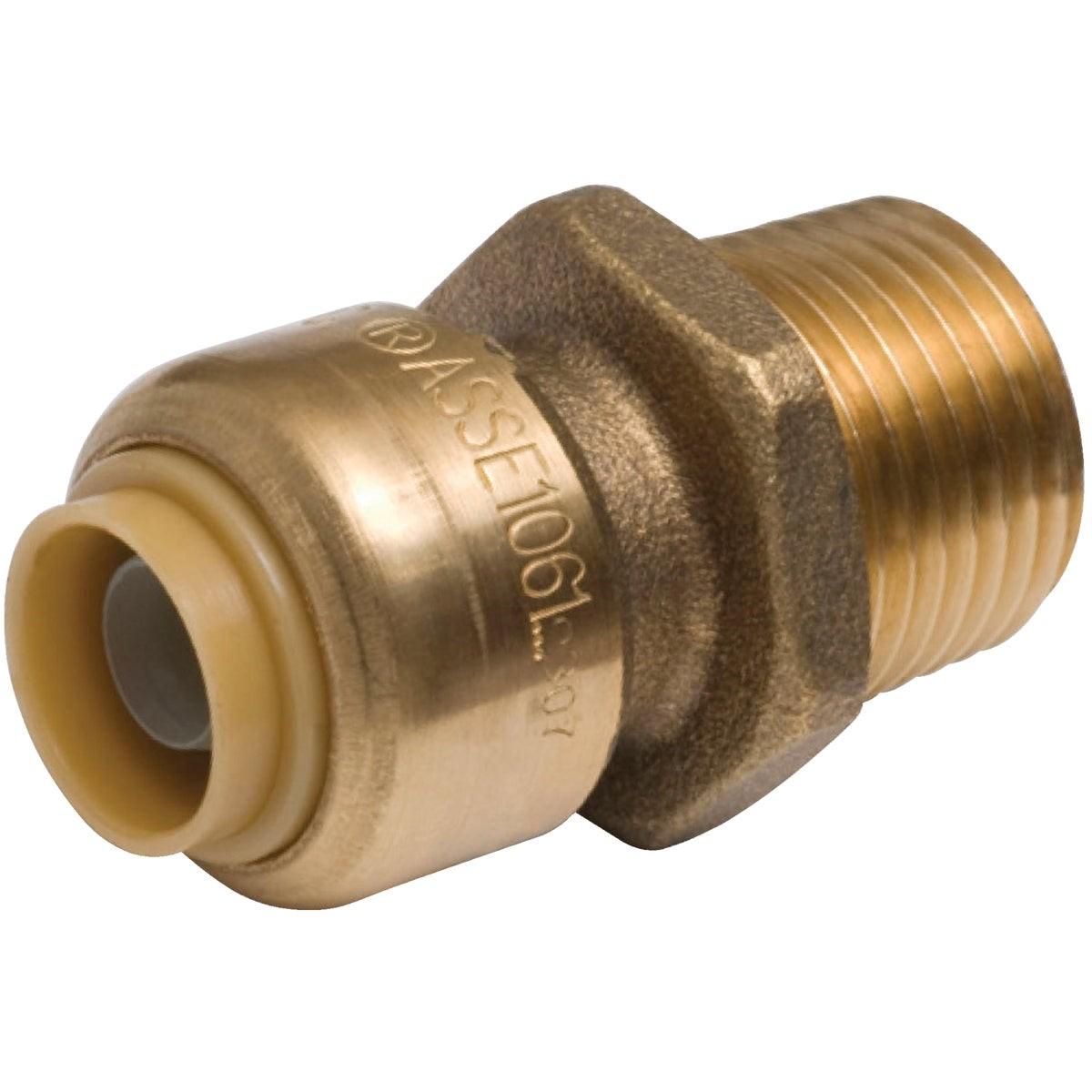

The RWC U118LFA is a reducing brass push-to-connect male adapter designed for fast, tool-free connections in residential and light commercial plumbing systems. It connects 3/8-inch CTS (1/2-inch OD) tubing to a 1/2-inch male iron pipe thread (MNPT) fitting end. Built from one-piece DZR (dezincification-resistant) brass, this adapter is rated for temperatures up to 200 degrees F and pressures up to 200 psi. The push-to-connect design requires no solder, glue, unions, or specialty tools, making it a practical choice for plumbers and pipefitters working in tight spaces or retrofit applications.

This adapter is suited for use in residential and commercial potable water distribution systems. It is compatible with copper, PEX, and CPVC tubing and can be installed in concealed locations including behind drywall and in direct-burial applications. The fitting is removable and reusable when used with a standard disconnect clip, adding flexibility for service and modification work. Each unit is individually bagged and sold as a single piece.

Key Features

• Tool-free push-to-connect installation — no solder, glue, or unions required
• One-piece DZR brass construction for corrosion resistance in potable water service
• Rated to 200 degrees F and 200 psi
• Compatible with copper, PEX, and CPVC tubing
• Removable and reusable with a disconnect clip
• Approved for concealed and direct-burial installations
• Lead content limited to no more than 0.25% weighted average on wetted surfaces

Compatibility

Compatible with 3/8-inch CTS (1/2-inch OD) copper, PEX, and CPVC tubing; male pipe end connects to 1/2-inch MNPT fittings and valves.

Installation Notes

Installation is performed by licensed plumbers in accordance with the UPC and applicable local codes. Shut off the water supply and depressurize the line before making or removing connections. Tubing must be cut square and deburred before insertion to ensure a proper seal. To remove the fitting, use a manufacturer-approved disconnect clip — do not attempt to pull the fitting free without the clip, as this can damage the internal grab ring.

Technical Specifications

• Inlet Size: 3/8 inches CTS (1/2-inch OD)
• Outlet Size: 1/2 inches MNPT
• Material: One-piece DZR Brass
• Max Temperature: 200 degrees F
• Max Pressure: 200 psi
• Lead Content (Wetted Surfaces): 0.25% weighted average maximum
• Weight: 0.175 pounds
• Certifications: UPC, IAPMO, NSF-61
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U118LFA
