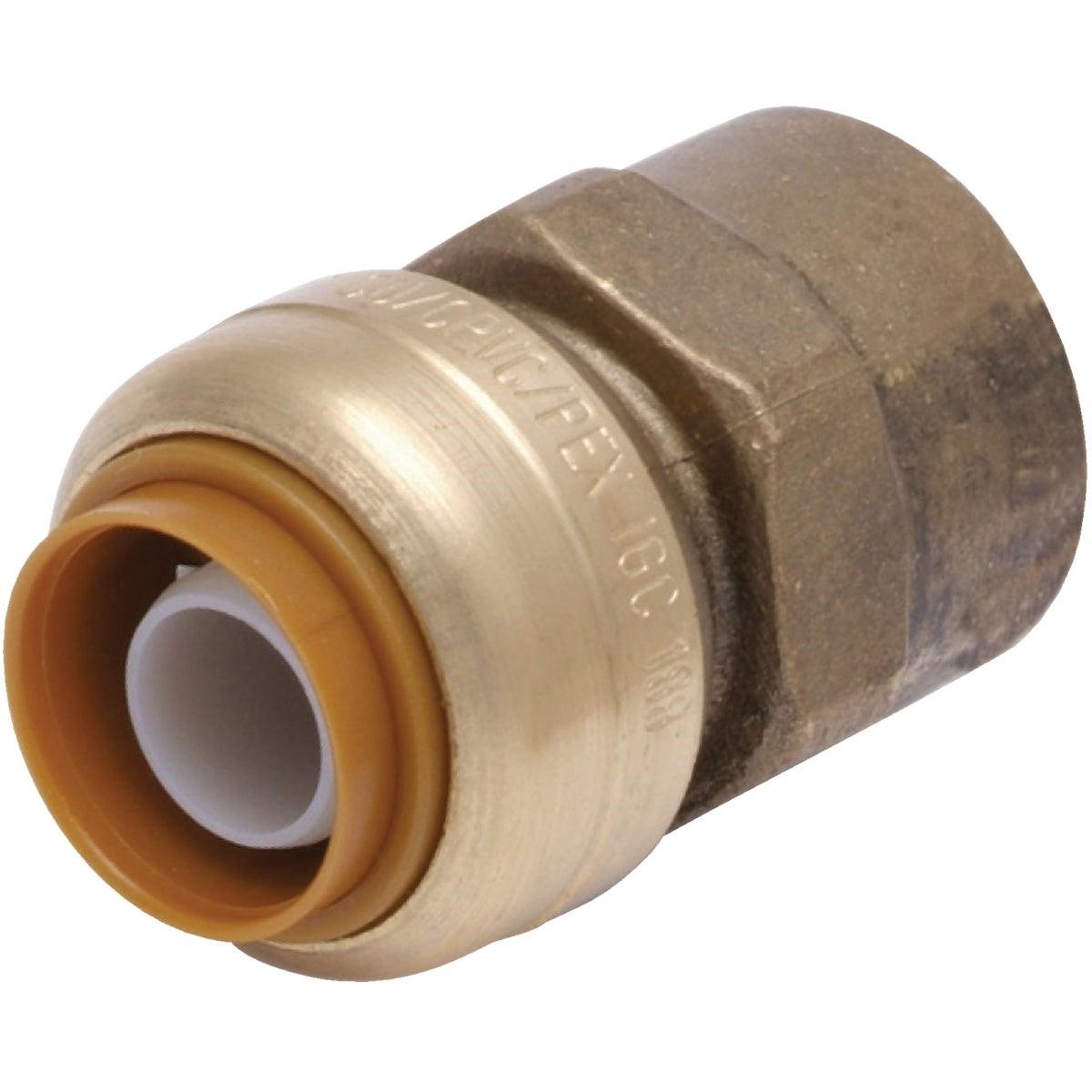

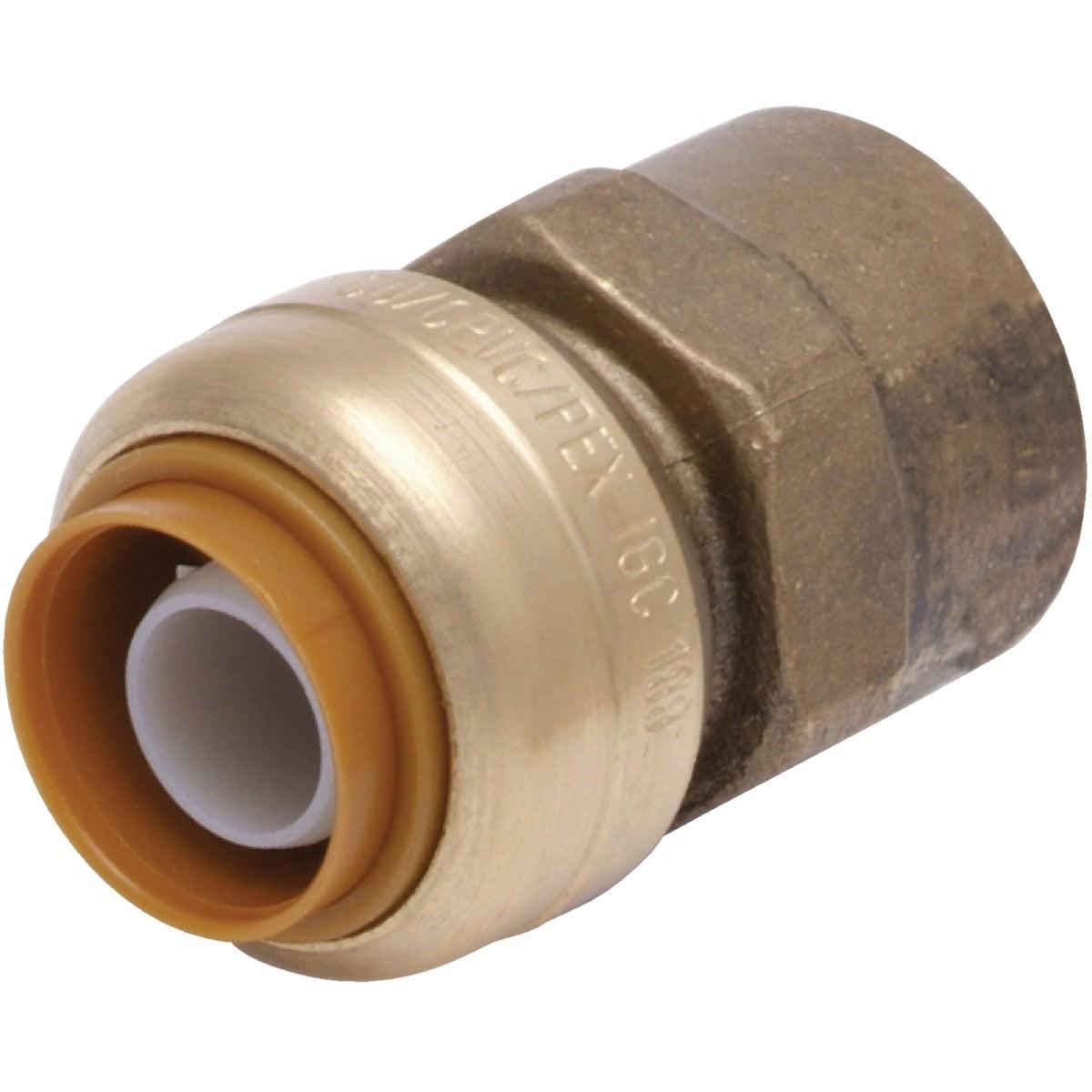

Rwc U094LFA 1 in X 1 in Fnpt Brass Push-to-connect Adapter

Product Description

The RWC U094LFA is a 1-inch by 1-inch female NPT straight push-to-connect adapter made from one-piece DZR brass. It connects a push-fit pipe end to a female iron pipe thread (FNPT) port without solder, glue, or specialized tools. The fitting is rated for 200 degrees F and 200 psi, making it suitable for a wide range of residential and light commercial plumbing applications. Lead content on wetted surfaces is held to no more than 0.25% weighted average, meeting current lead-free requirements. The fitting arrives individually bagged and ready for installation.

This adapter is designed for use with copper, PEX, and CPVC pipe in potable water supply systems. It is appropriate for residential and commercial plumbing where a quick, reliable transition from a push-fit line to a threaded female port is needed. The fitting can be installed in concealed locations, including burial and behind drywall, making it useful in rough-in and retrofit work. Licensed plumbers and qualified pipefitters are the typical installers for this type of fitting in code-governed installations.

Key Features

• Push-to-connect design requires no solder, glue, unions, or specialty tools
• Rated to 200 degrees F and 200 psi for demanding supply-line service
• One-piece DZR brass construction resists dezincification in aggressive water conditions
• Removable and reusable with a disconnect clip (clip sold separately)
• Approved for buried installations and concealed locations behind drywall
• Low-lead compliant — no more than 0.25% weighted average lead on wetted surfaces

Compatibility

Compatible with copper, PEX, and CPVC pipe in 1-inch nominal size. Suitable for potable water systems requiring an FNPT threaded port connection at 1-inch nominal pipe size.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before connecting or disconnecting the fitting. Ensure the pipe end is cut cleanly and squarely and is free of burrs or debris before insertion to achieve a proper seal. To remove the fitting, use a SharkBite disconnect clip or equivalent removal tool — do not attempt to pull the fitting off without the clip.

Technical Specifications

• Connection Type: Push-to-Connect x Female NPT (FNPT)
• Pipe Size: 1 inch x 1 inch
• Maximum Pressure Rating: 200 psi
• Maximum Temperature Rating: 200 degrees F
• Material: One-piece DZR brass
• Compatible Pipe Types: Copper, PEX, CPVC
• Lead Content (Wetted Surfaces): 0.25% weighted average maximum
• Certifications: UPC, IAPMO, NSF-61
• Weight: 0.434 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U094LFA
