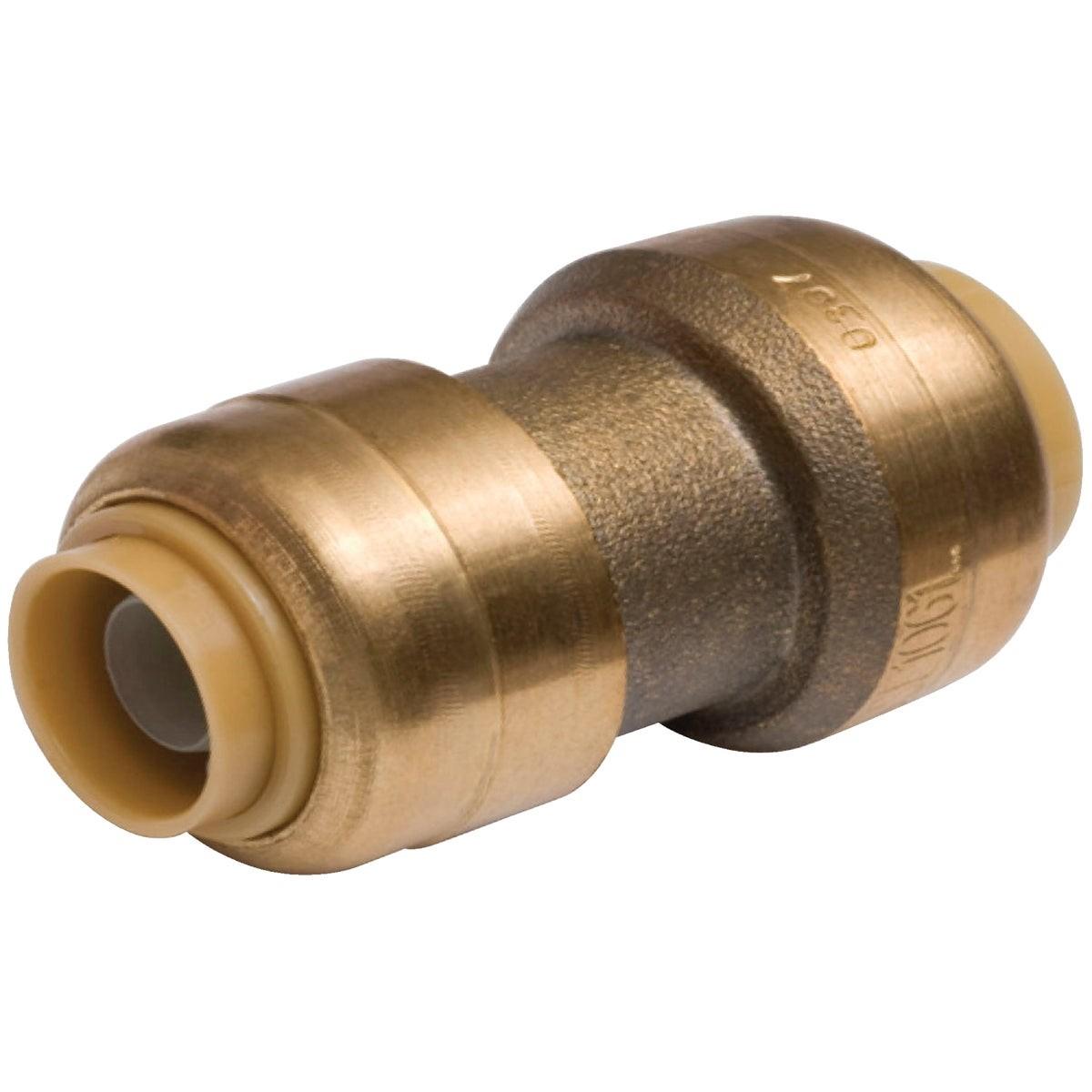

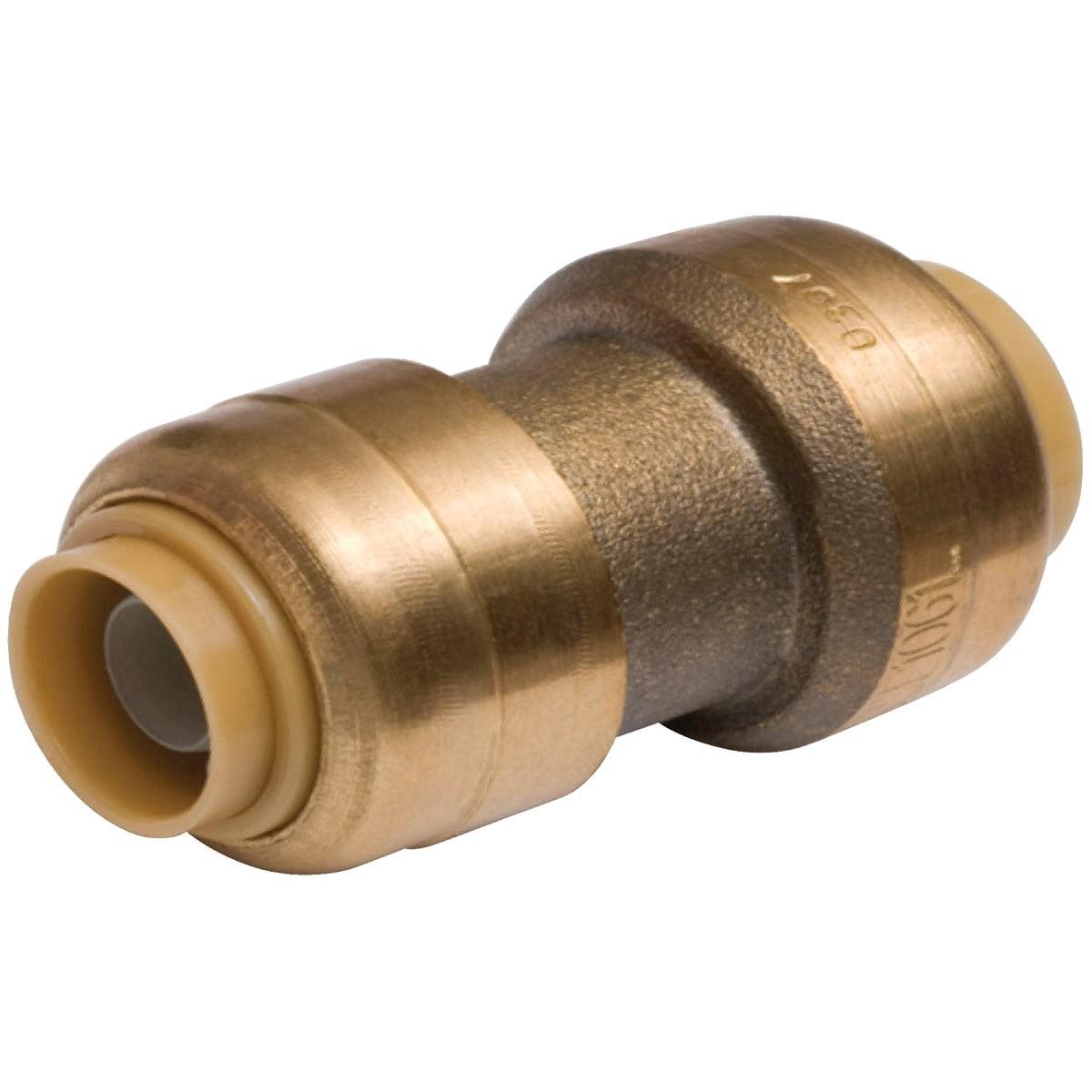

Rwc U009LFA Sharkbite Brass Reducing Coupling 3/8x1/2

Product Description

The RWC U009LFA is a 3/8-inch by 1/2-inch push-to-connect reducing coupling made from one-piece DZR brass. It is designed for fast, tool-free connections in residential and light commercial plumbing systems. The fitting accepts copper, PEX, and CPVC tubing and is rated for service up to 200 degrees F and 200 psi. The push-to-connect mechanism allows a licensed plumber or experienced installer to make a secure connection without soldering, crimping, or threading. Wetted surfaces contain no more than 0.25% weighted average lead content, meeting current low-lead compliance requirements.

This fitting is suited for water supply line repairs, remodeling work, and new construction where mixed tubing types meet or a size transition is needed. Because it can be buried in soil and concealed behind drywall, it works in both accessible and in-wall locations. Its removable and reusable design makes it a practical choice for service calls where a fitting may need to be repositioned or recovered after installation.

Key Features

• Push-to-connect design requires no solder, crimp rings, or special tools
• One-piece DZR brass construction resists dezincification in aggressive water conditions
• Rated to 200 degrees F and 200 psi for demanding service conditions
• Compatible with copper, PEX, and CPVC tubing
• Can be buried or installed behind drywall without access concerns
• Removable and reusable fitting reduces material waste on the job
• Low-lead compliant with no more than 0.25% weighted average lead content on wetted surfaces

Compatibility

Compatible with copper, PEX, and CPVC tubing in 3/8-inch and 1/2-inch nominal sizes. Suitable for potable water systems where UPC, IAPMO, and NSF-61 certification is required.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off the water supply and relieve system pressure before making or breaking any connection. Tubing ends must be cut square and deburred, and the full insertion depth mark should be confirmed before pressurizing. To disconnect, use a SharkBite disconnect clip or disconnect tongs to depress the collet before pulling the tube free.

Technical Specifications

• Inlet Size: 3/8 inches
• Outlet Size: 1/2 inches
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 degrees F
• Material: One-piece DZR brass
• Lead Content (Wetted Surfaces): 0.25% weighted average maximum
• Weight: 0.159 pounds
• Certifications: UPC, IAPMO, NSF-61
• Sold As: Each, individually bagged

Standard Information

• Brand: RWC
• Manufacturer Part Number: U009LFA
