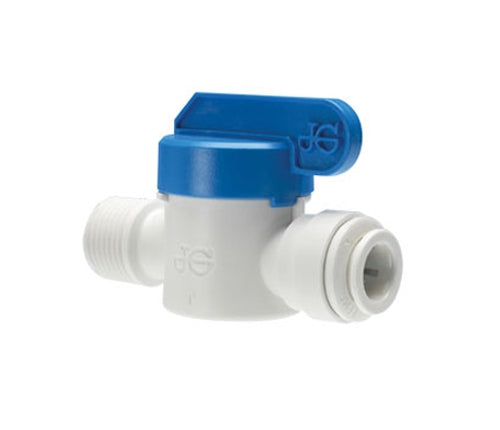

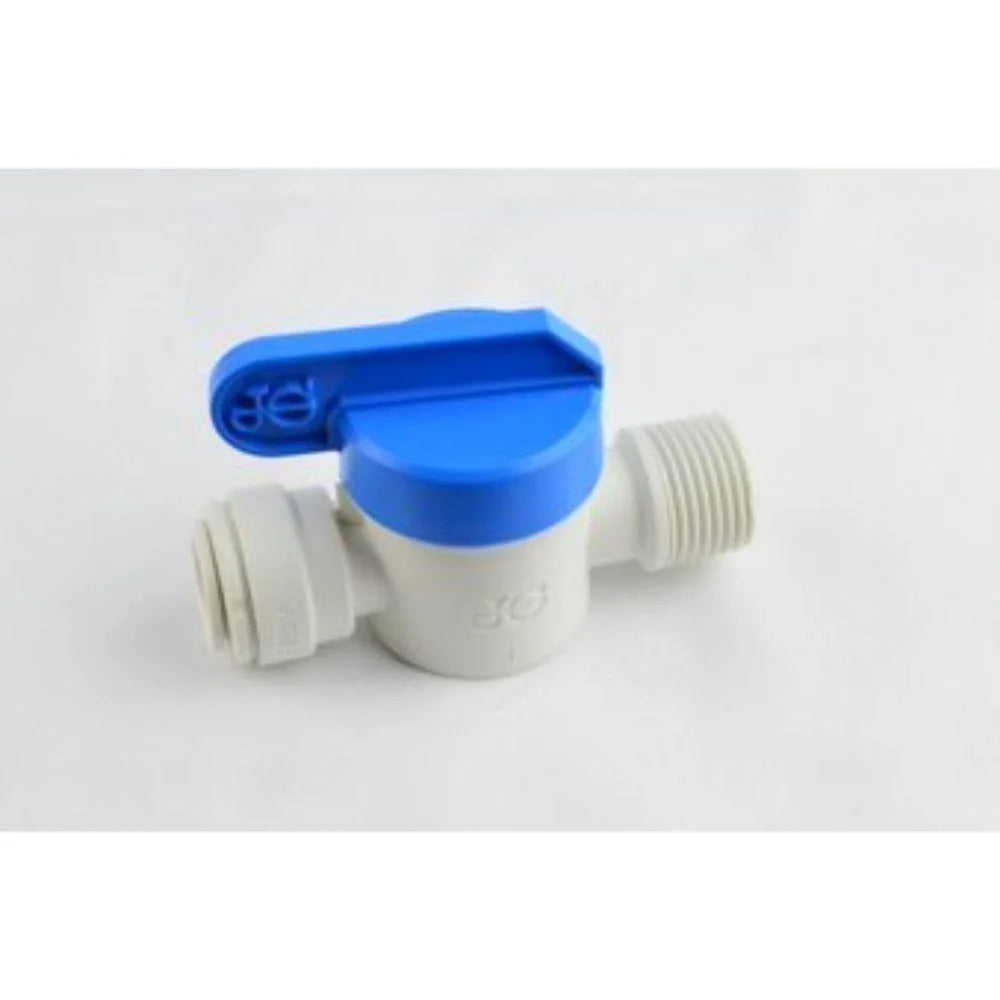

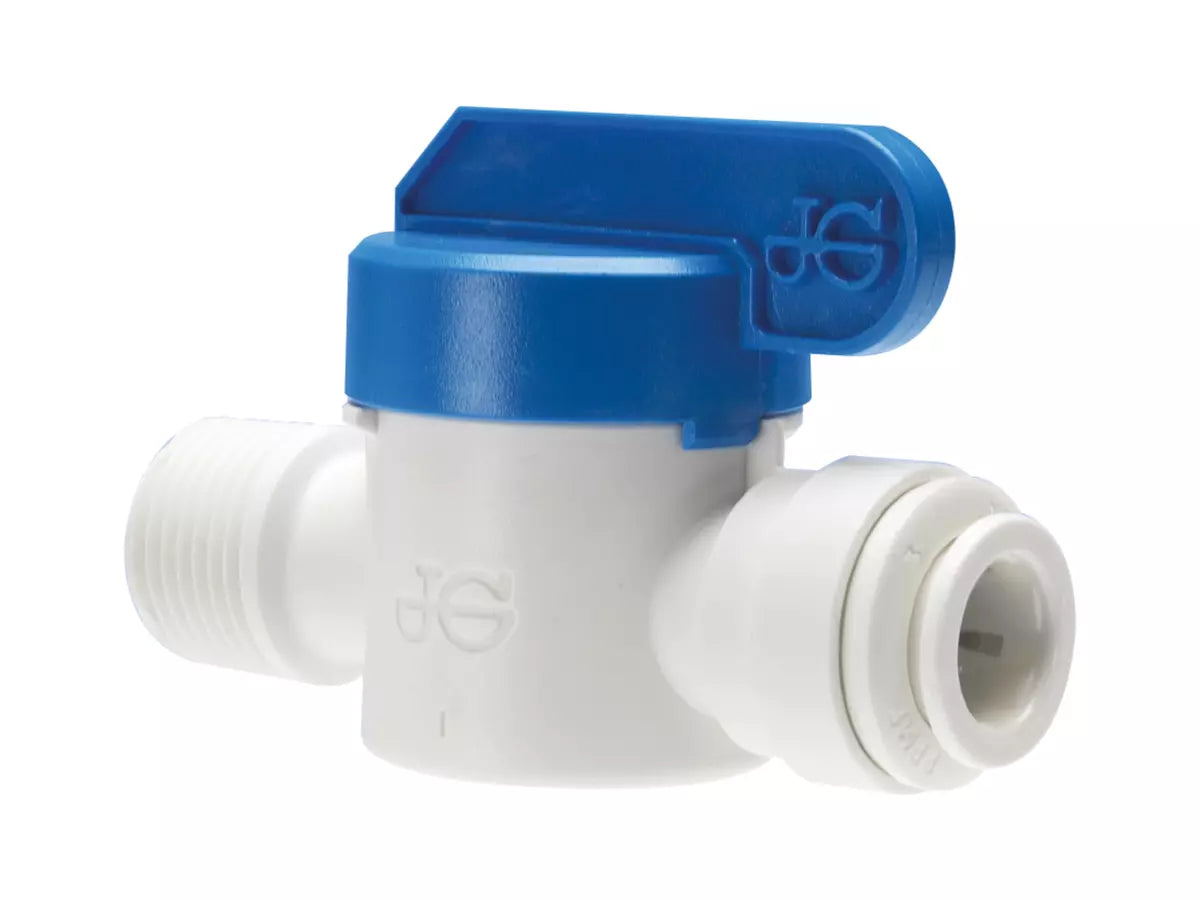

Rwc PPSV011223W John Guest Male Shut-Off Valve 3/8 inches Tube OD x 3/8 inches NPTF

Product Description

The RWC PPSV011223W John Guest male shut-off valve easily incorporates a shut off valve into a system to isolate the supply for service and maintenance. JG Push-fit technology makes connecting tubing quick and easy. Shut-off valves are manufactured in white polypropylene with food grade EPDM seals.

• For use with plastic or copper OD sized tubing
• Quarter turn to open or close
• White Polypropylene body, EPDM seals

Product Highlights

This valve features quick and easy connection/disconnection and is NSF61 listed. It is suitable for potable liquid, intermittent hot water, water treatment and purification applications.

Product Information

Standard Information

• Brand: RWC
• Manufacturer Part Number: PPSV011223W

Technical Specifications

• Tube OD: 3/8"
• Thread: 3/8" NPTF
• Brand: John Guest SpeedFit-ProLock
• Material: Polypropylene
• Part Number: PPSV011223W
• SKU: PPSV011223W
• Accreditations: BSI, WRAS
• Application: Suitable for potable liquid, intermittent hot water and water treatment applications. Not suitable for compressed air, vacuum, explosive gases, petroleum spirit or other fuel or heating systems.
• Purpose: Quickly and safely isolates a fixture or appliance via an integrated 1/4 turn isolation valve
• Compatibility: Suitable for use with soft metal or plastic tubing
• Technology: Standard
• Collet Material: White Polypropylene
• Tube Outer Diameter: 3/8 inch
• Thread Size: 3/8 inch
• Thread Type: NPTF
• Primary Material: White Polypropylene
• O Ring Material: EPDM
• Operating Pressure in bar at plus 20 degrees C: 10 bar
• Conflict Minerals Compliant: YES
• ROHS Compliant: YES
• REACH Compliant: YES
• Size: 3/8" Tube OD x 3/8" NPTF
