Rwc 40-SWHP-WM Wall Mounted Equipment Platform 20 Gal

Product Description

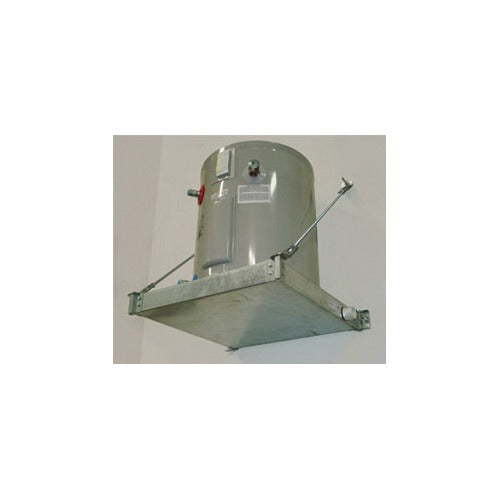

The RWC 40-SWHP-WM is a wall mounted equipment platform designed to support domestic water heaters in residential and light commercial installations. The platform measures 21.25 inches long by 21.25 inches wide by 2.5 inches high, providing a stable, elevated mounting surface. It is rated to hold water heaters up to 20 gallons and a maximum load of 375 pounds. Plumbers and mechanical contractors install this bracket to keep water heaters off the floor, meet local clearance requirements, and simplify service access in tight utility spaces.

This platform is suited for domestic water heater installations where wall mounting is required or preferred. It is commonly used in residential utility closets, garages, and mechanical rooms where floor space is limited or where local codes mandate elevated equipment placement. The 21.25 by 21.25 inch footprint accommodates standard small-capacity tank water heaters up to 20 gallons.

Key Features

• Wall mounted design keeps water heater off the floor and supports code-compliant installations
• Rated load capacity of 375 pounds for secure, long-term support
• Platform dimensions of 21.25 x 21.25 x 2.5 inches fit standard small-tank water heaters up to 20 gallons
• Low-profile 2.5 inch height minimizes projection from the wall
• Intended for domestic water heater applications in residential and light commercial settings

Compatibility

Designed as an OEM-style wall mounting solution for domestic tank water heaters with a capacity of up to 20 gallons and a maximum weight of 375 pounds.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with local plumbing codes and the water heater manufacturer's instructions. Shut off the water supply and disconnect power or gas to the water heater before removing or repositioning the unit. Ensure wall anchors and fasteners are appropriate for the wall construction type and are rated to support the combined weight of the platform and the filled water heater. Verify local code requirements for equipment elevation and seismic strapping before completing the installation.

Technical Specifications

• Length: 21.25 inches
• Width: 21.25 inches
• Height: 2.5 inches
• Maximum Load Capacity: 375 pounds
• Compatible Water Heater Capacity: Up to 20 gallons
• Mounting Type: Wall mounted
• Application: Domestic water heater

Standard Information

• Brand: RWC
• Manufacturer Part Number: 40-SWHP-WM
