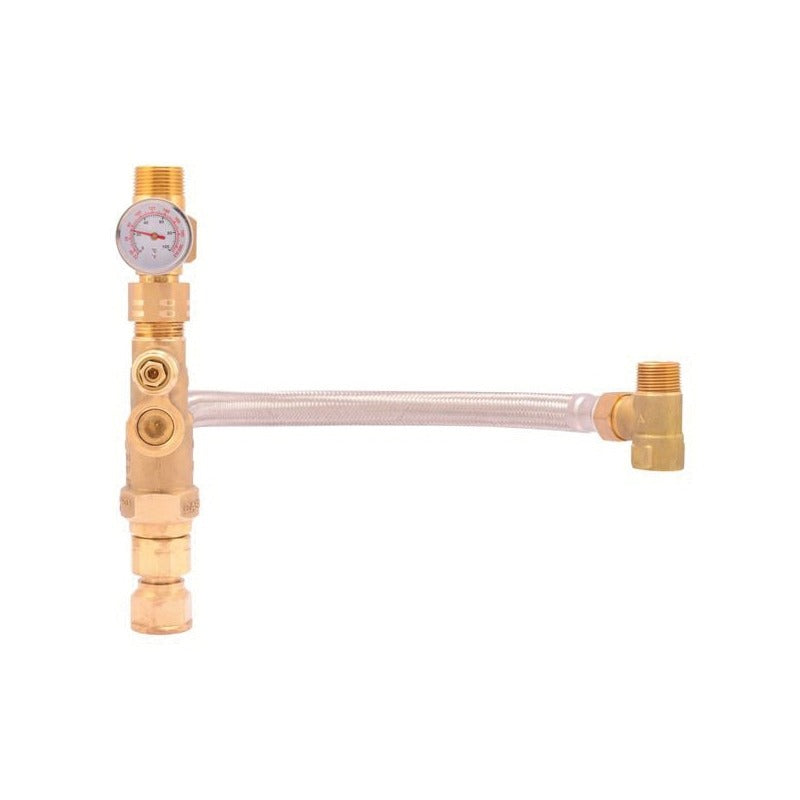

Rwc 24644 Tank Booster 3/4 in Mnpt Fnpt Npsh 150 Psi Brass

Product Description

The RWC 24644 is a brass-body tank booster designed to maintain adequate pressure at water heater storage tanks in residential and light commercial plumbing systems. The 24644 connects inline between the supply line and the storage tank, compensating for pressure drop across check valves or backflow preventers that can otherwise cause sluggish hot water delivery. Key specs include a 3/4 inch connection size, a maximum working pressure of 150 psi, and a brass body construction suited for potable water service. Licensed plumbers install this fitting during water heater service calls or new installations.

The 24644 is applied in residential and light commercial domestic hot water systems where a check valve or backflow preventer on the cold supply line creates a closed system condition. In these installations, thermal expansion raises tank pressure and reduces effective flow. The tank booster addresses this by allowing the tank to maintain working pressure without requiring an expansion tank in certain configurations. It is commonly installed at the cold water inlet of storage-style water heaters.

Key Features

• Brass body construction for durability in potable water service
• 3/4 inch connection size with MNPT x FNPT x NPSH porting
• Rated to 150 psi maximum working pressure
• Inline design fits standard water heater cold-inlet plumbing configurations
• Compatible with residential and light commercial hot water storage systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial storage water heater supply lines requiring a tank booster at the cold water inlet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the cold water supply and relieve system pressure before removing any existing fittings. Use appropriate thread sealant rated for potable water on all threaded connections. Verify that the installed assembly does not exceed the 150 psi maximum working pressure rating of the fitting.

Technical Specifications

• Connection Size: 3/4 inches
• Connection Type: MNPT x FNPT x NPSH
• Maximum Working Pressure: 150 psi
• Body Material: Brass

Standard Information

• Brand: RWC
• Manufacturer Part Number: 24644
