Rwc 24635LF 3/4 in Push-to-connect Brass Gate Valve

Product Description

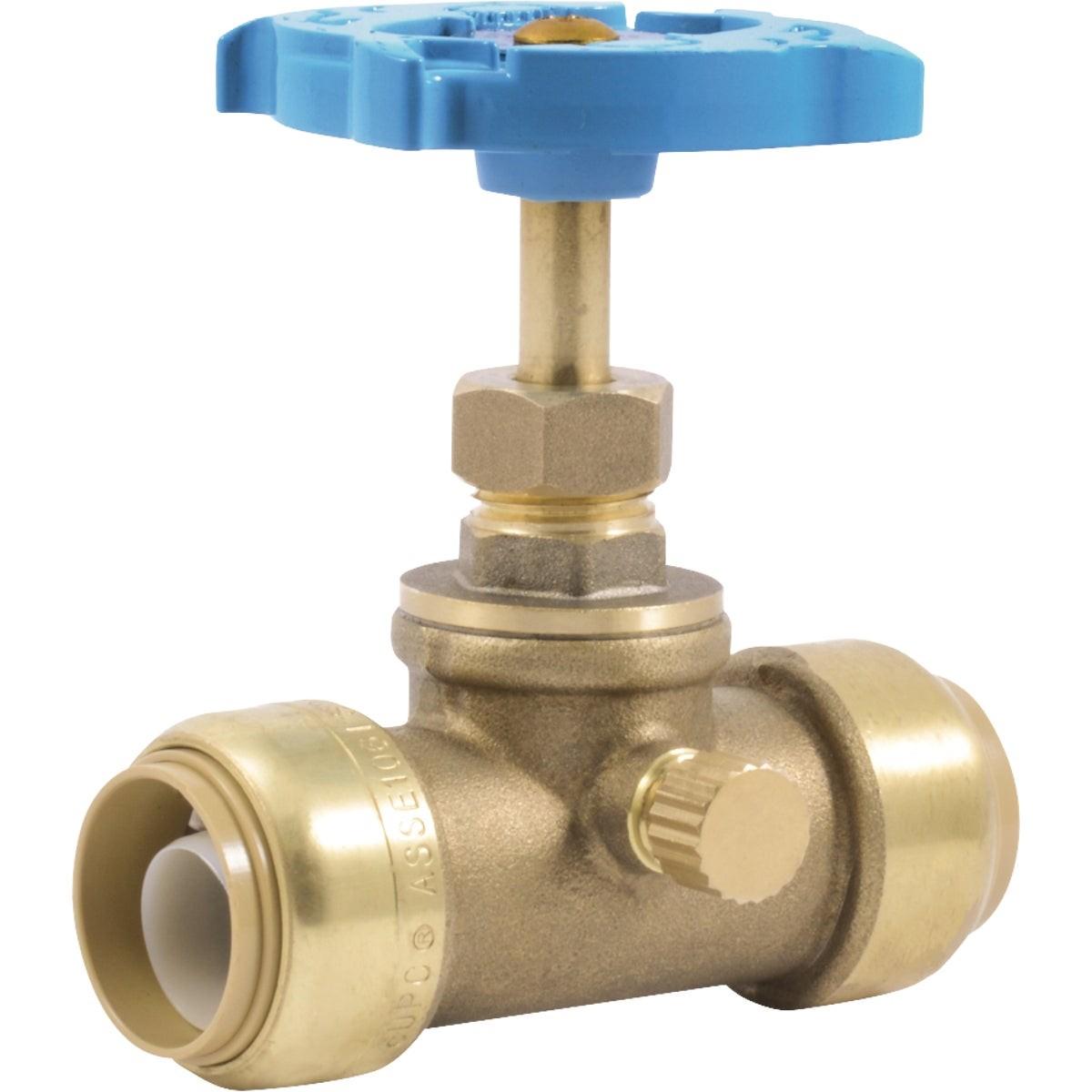

The RWC 24635LF is a 3/4-inch SharkBite-style push-to-connect gate valve constructed with a one-piece forged brass body. It is designed for use in residential and light commercial water distribution systems where a shutoff or flow-regulation valve is needed without soldering or the use of specialized tools. The multi-turn gate valve design allows precise regulation of water flow, and an integrated drain vent supports cold-weather maintenance and freeze protection. Licensed plumbers and knowledgeable service techs install this valve directly onto compatible pipe with no additional fittings required.

This valve is suited for residential potable water supply lines, in-wall or accessible shutoff locations, and retrofit installations where soldering is not practical. The push-to-connect ends accept 3/4-inch pipe and are compatible with any combination of copper, PEX, CPVC, or PE-RT pipe. The integrated drain vent makes it a practical choice for installations in unconditioned spaces or seasonal systems subject to freezing.

Key Features

• Push-to-connect ends require no solder, glue, unions, or additional tools
• Compatible with copper, PEX, CPVC, and PE-RT pipe in any combination
• One-piece forged brass body for structural durability
• Multi-turn gate valve design allows regulated water flow control
• Integrated drain vent for cold-weather maintenance and freeze protection

Compatibility

Compatible with any combination of 3/4-inch copper, PEX, CPVC, or PE-RT pipe. Designed as an OEM-style push-to-connect replacement or new-installation gate valve for residential and light commercial water supply systems.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Shut off the water supply and relieve system pressure before connecting or disconnecting the valve. Ensure pipe ends are cut cleanly and deburred before inserting into the push-to-connect fittings. Follow all applicable local plumbing codes and IPC requirements for potable water shutoff valve placement.

Technical Specifications

• Connection Size: 3/4 inches x 3/4 inches
• Connection Type: Push-to-Connect (SB x SB)
• Valve Type: Gate Valve
• Body Material: Forged Brass
• Compatible Pipe Types: Copper, PEX, CPVC, PE-RT
• Weight: 0.596 pounds

Standard Information

• Brand: RWC
• Manufacturer Part Number: 24635LF
