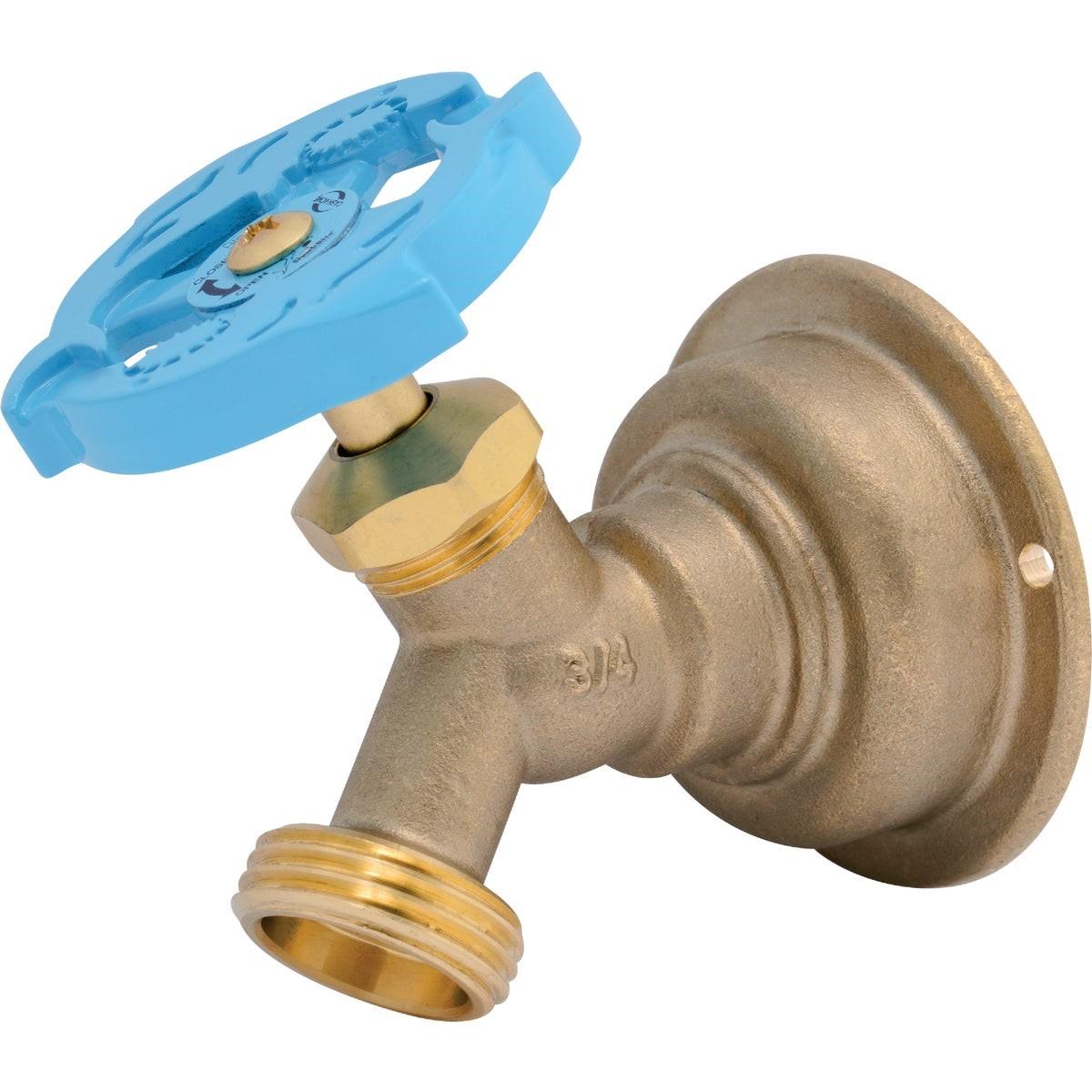

Rwc 24633LF Sharkbite 3/4 in Push-connect Hose Bibb 45 Deg

Product Description

The RWC 24633LF is a SharkBite No-Kink 45 Degree Hose Bibb designed for residential and light commercial plumbing applications. The 45-degree body angle positions the outlet downward to reduce hose kink at the connection point, extending hose life and maintaining consistent flow. The inlet uses SharkBite push-to-connect technology, eliminating the need for soldering, glue, unions, or additional tools. The body is a one-piece forged brass construction for long-term durability. A multi-turn handle allows precise regulation of water flow. An integrated mounting flange is included to secure the valve to the wall or mounting surface during installation.

This hose bibb is suited for outdoor hose connections on residential and light commercial buildings. It is appropriate for new construction and retrofit applications where a quick, tool-free push-to-connect inlet is preferred over a sweat or threaded fitting. The 3/4 inch male hose thread outlet accepts standard garden hose fittings. The push-to-connect inlet is compatible with copper, PEX, CPVC, and PE-RT pipe, making it adaptable across common residential pipe systems without additional transition fittings.

Key Features

• 45-degree angled body reduces hose kink at the outlet connection
• Push-to-connect inlet requires no solder, glue, or special tools
• One-piece forged brass body for strength and corrosion resistance
• Multi-turn handle provides precise water flow regulation
• Integrated mounting flange for secure wall attachment
• Compatible with copper, PEX, CPVC, and PE-RT pipe

Compatibility

The push-to-connect inlet is compatible with copper, PEX, CPVC, and PE-RT pipes in 3/4 inch diameter. The 3/4 inch male hose thread outlet is compatible with standard garden hose fittings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water supply and depressurize the line before inserting pipe into the push-to-connect fitting. Ensure pipe ends are cut cleanly and deburred before insertion to achieve a proper seal. Do not exceed the rated working pressure for the push-to-connect connection.

Technical Specifications

• Inlet Size: 3/4 inch
• Outlet Size: 3/4 inch
• Inlet Connection Type: Push-to-Connect (SharkBite)
• Outlet Connection Type: Male Hose Thread (MHT)
• Body Angle: 45 degrees
• Operation Type: Multi-Turn
• Body Material: Forged Brass
• Compatible Pipe Types: Copper, PEX, CPVC, PE-RT
• Weight: 0.602 pounds
• Sold As: Each
• UPC: 00697285246331

Standard Information

• Brand: RWC
• Manufacturer Part Number: 24633LF
