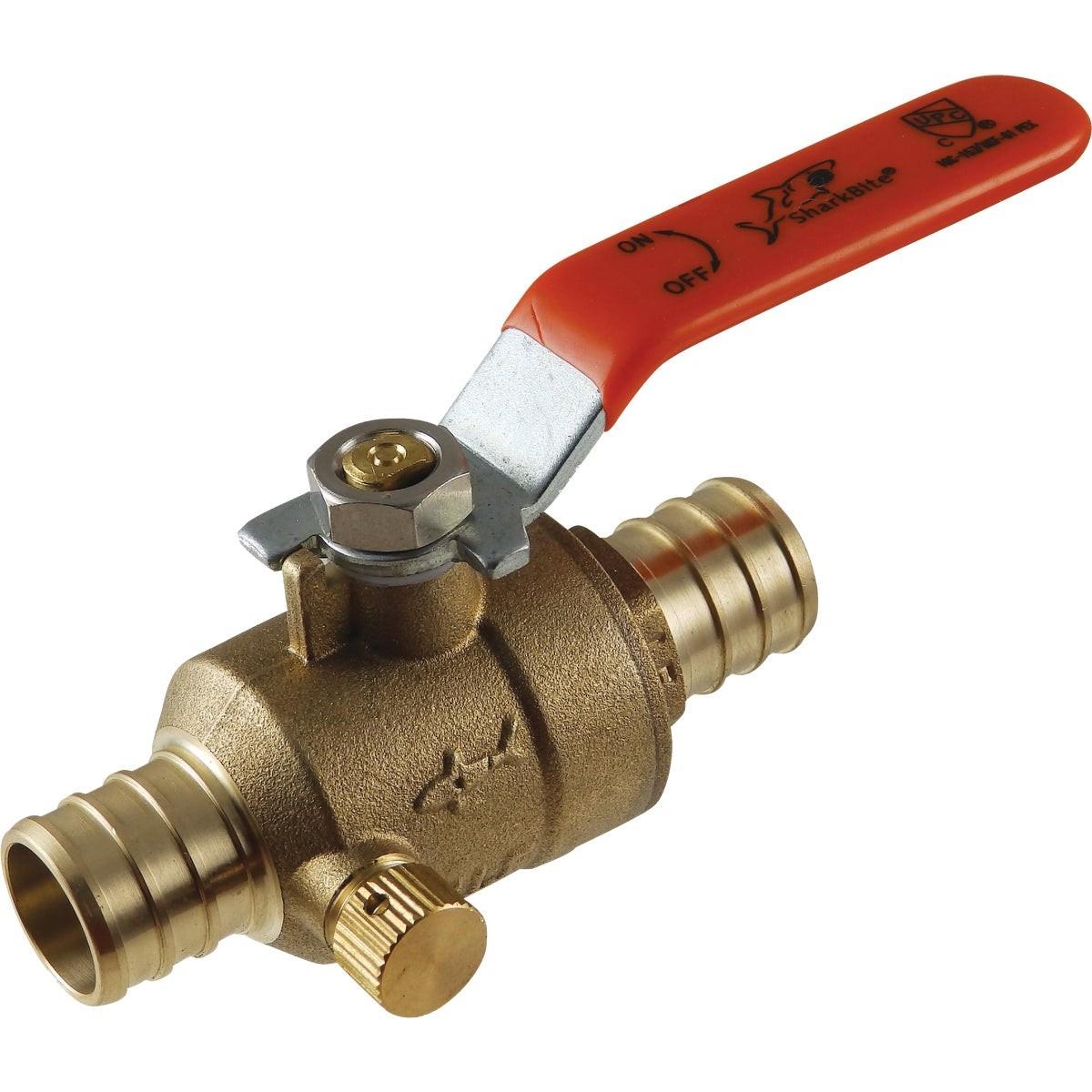

Rwc 24613LFA 3/4 in Brass Barb Ball Valve with Drain

Product Description

The RWC 24613LFA is a 3/4-inch brass barb ball valve with an integrated drain port, designed for use in PEX tubing water distribution systems. Built from DZR (dezincification-resistant) brass, this valve offers strong corrosion resistance in residential and light commercial plumbing applications. The barb connection style provides a reliable, cost-effective alternative to push-to-connect or compression fittings when working with flexible PEX tubing. The drain port allows for convenient system isolation and draining without additional fittings. Licensed plumbers and plumbing contractors are the primary installers of this valve in potable water systems.

This valve is suited for residential and light commercial water distribution systems where PEX tubing is the pipe material of choice. The barb-style connection is particularly useful in new construction and retrofit plumbing work where lower material cost is a priority without sacrificing performance or code compliance. The NSF listing confirms suitability for use in potable water applications. It is sold individually and installs in-line as a shutoff and drain point within a PEX distribution system.

Key Features

• DZR brass construction provides corrosion resistance in potable water service
• Integrated drain port enables system isolation and draining at the valve location
• Barb connection style designed for use with 3/4-inch PEX tubing
• NSF listed for use in potable water distribution systems
• Full-port ball valve design supports positive shutoff

Compatibility

Designed for use with 3/4-inch PEX tubing in residential and light commercial potable water distribution systems using barb-style connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before installing or servicing this valve. Barb connections require an appropriate PEX clamp or crimp ring tool and compatible rings to secure the tubing; confirm ring type compatibility with the PEX tubing specification being used. Do not overtighten or use thread sealants on barb connections, as the barb-and-ring method provides the seal.

Technical Specifications

• Connection Type: Barb (PEX)
• Size: 3/4 inches
• Material: DZR Brass
• Certification: NSF Listed
• Weight: 0.459 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: 24613LFA
