Rwc 23064LF Sharkbite Angle Stop Valve Pex Barb Brass

Product Description

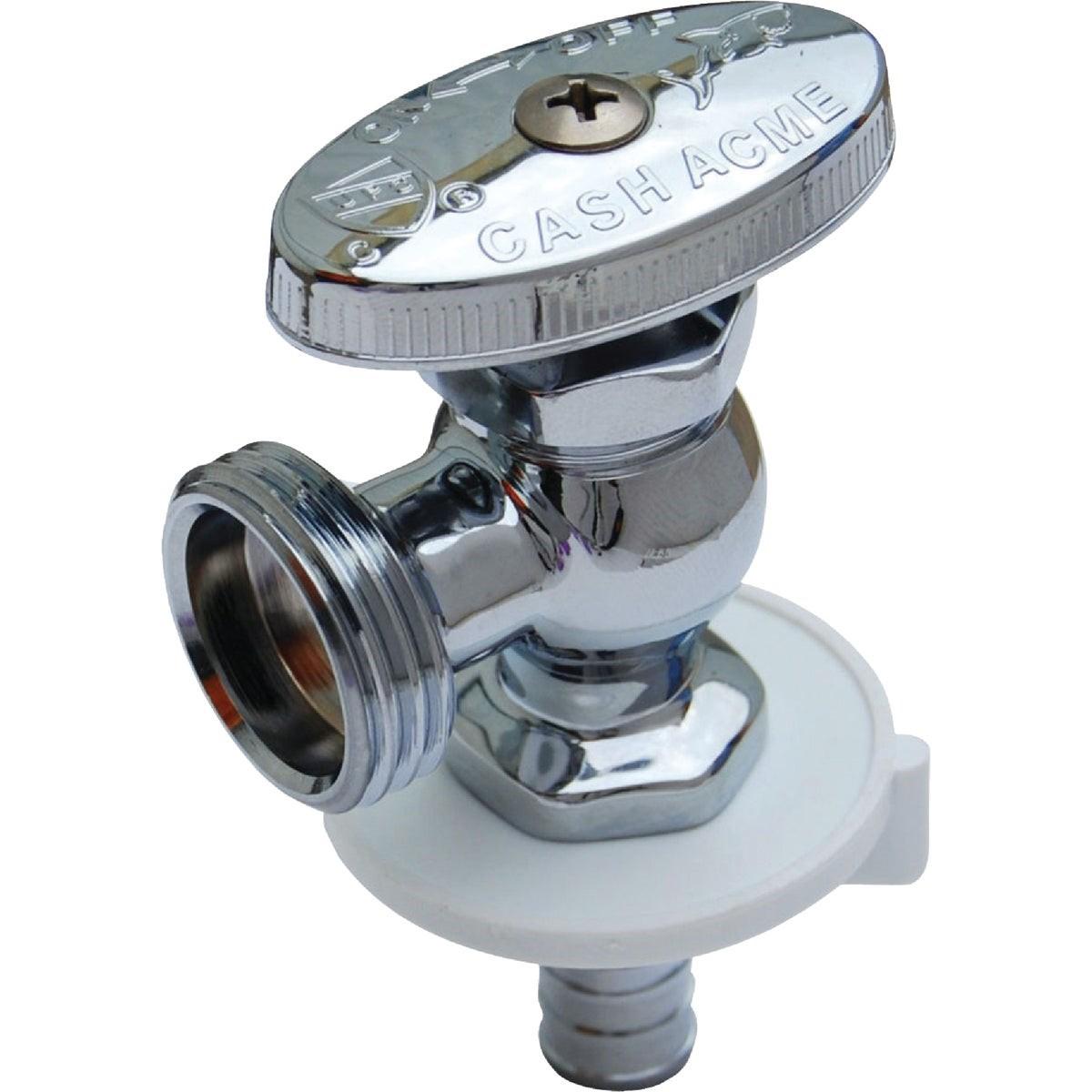

The RWC 23064LF is a SharkBite brass barb angle stop valve designed for PEX tubing water distribution systems. It features a 1/2 inch CFX (compression female cross) barb inlet and a 3/4 inch male garden hose (MGH) angle outlet with a chrome finish. The body is constructed from dezincification-resistant (DZR) brass, providing corrosion resistance in potable water applications. This valve is sold individually and is installed by licensed plumbers or qualified service technicians in residential and light commercial water supply systems where a serviceable shutoff point is required at fixture connections.

This angle stop valve is suited for residential water distribution installations where PEX tubing terminates at a fixture shutoff. The barb connection system is designed to lower material costs compared to press or push-to-connect fittings while maintaining a secure, reliable joint on PEX supply lines. Typical applications include under-sink fixture shutoffs, toilet supply connections, and similar angle-stop service points fed by PEX tubing runs.

Key Features

• DZR brass construction resists corrosion and dezincification in potable water systems
• 1/2 inch CFX barb inlet for direct connection to PEX tubing without additional fittings
• 3/4 inch MGH angle outlet with chrome finish for fixture supply connections
• NSF-certified for use in potable water distribution systems
• Sold as a single unit for precise quantity ordering

Compatibility

Designed as an OEM-style angle stop replacement for residential PEX-based water distribution systems requiring a 1/2 inch barb inlet and 3/4 inch male garden hose angle outlet configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC standards. Shut off the main water supply and relieve system pressure before beginning work. Ensure PEX tubing is cut cleanly and fully seated on the barb fitting before securing with the appropriate crimp or clamp ring using the correct installation tool. Do not overtighten the MGH outlet connection to avoid thread damage.

Technical Specifications

• Inlet Size: 1/2 inch CFX (barb)
• Outlet Size: 3/4 inch MGH
• Valve Type: Angle Stop
• Connection Type: Barb x Male Garden Hose
• Finish: Chrome
• Material: DZR Brass
• Certification: NSF
• Weight: 0.367 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: 23064LF
