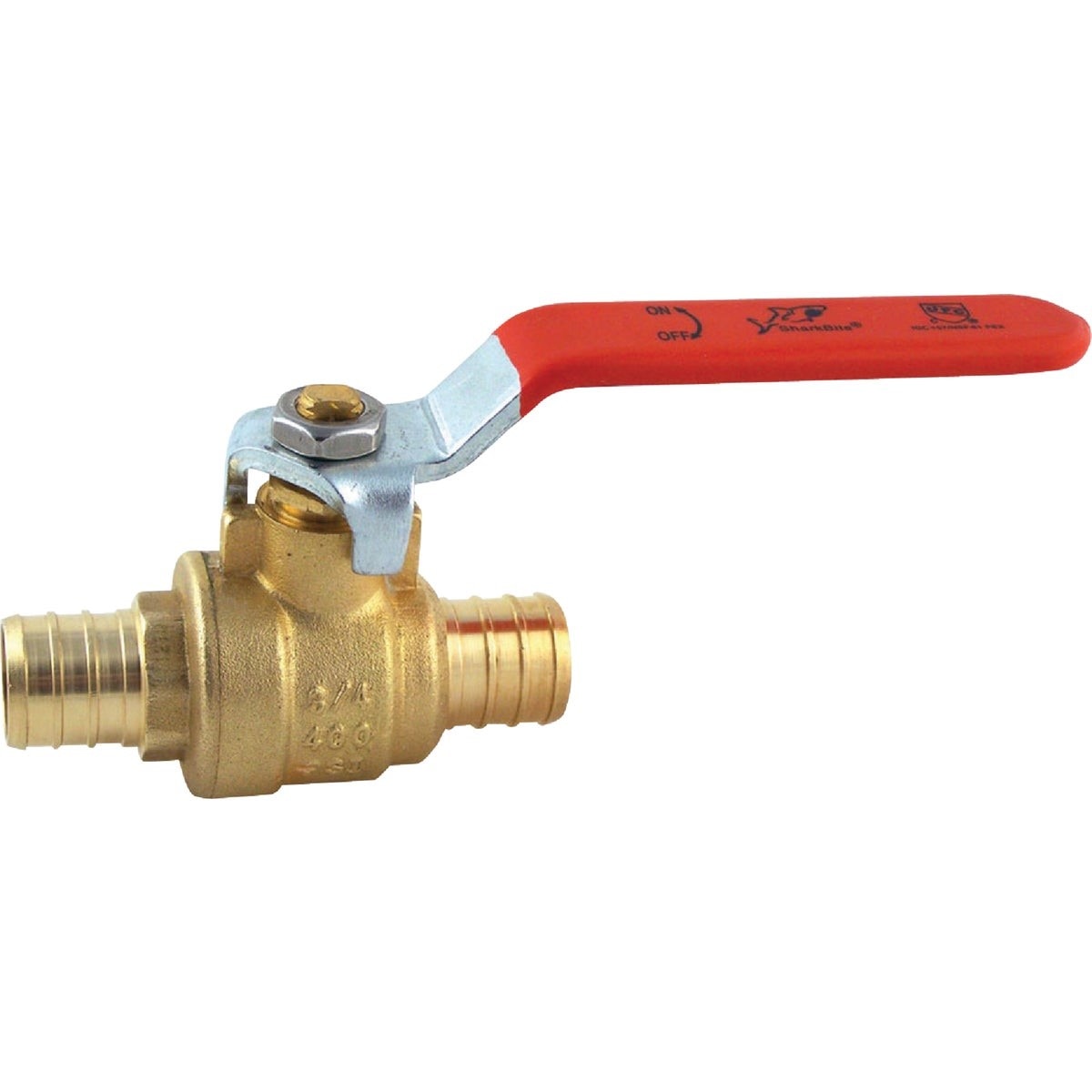

Rwc 22462LFA Sharkbite 3/4 in Brass Pex Ball Valve

Product Description

The RWC 22462LFA is a full-port brass barb ball valve designed for use with 3/4-inch PEX (cross-linked polyethylene) tubing in potable water distribution systems. It connects on both ends via SharkBite-style barb fittings, making it compatible with standard PEX tubing without the need for press tools or soldering. The valve body is constructed from DZR (dezincification resistant) brass, which resists corrosion in chlorinated water environments. The full-port design maintains unrestricted flow through the valve bore, reducing pressure drop. NSF certification confirms the valve meets standards for contact with drinking water. Plumbers and pipefitters install this valve in residential and light commercial water supply applications.

This ball valve is intended for PEX water distribution systems where barb-style connections are preferred over push-to-connect or press fittings. The barb connection method lowers material cost while maintaining a secure, reliable joint when installed with appropriate PEX clamp rings or crimp rings. Typical install scenarios include shutoff points on branch lines, fixture supply risers, and retrofit applications where copper or CPVC piping transitions to PEX tubing. Both inlet and outlet are 3/4-inch CF (crimp fitting) barb connections.

Key Features

• Full-port ball valve design for unrestricted flow and minimal pressure drop
• DZR brass construction resists dezincification and corrosion in potable water systems
• 3/4-inch barb connections on both ends for use with standard PEX tubing
• NSF-certified for use in drinking water distribution systems
• Barb connection system reduces material cost compared to press or push-fit alternatives

Compatibility

Designed for use with 3/4-inch PEX tubing in potable water distribution systems using the SharkBite barb connection system with compatible PEX clamp or crimp rings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before installation. Barb connections require a PEX clamp tool or crimp tool with the appropriate ring size — verify ring compatibility with the tubing brand before installation. Do not overtighten clamp rings beyond tool specification, and inspect the joint for proper seating before restoring water pressure.

Technical Specifications

• Connection Type: Barb (CF) x Barb (CF)
• Connection Size: 3/4 inch x 3/4 inch
• Valve Type: Full Port Ball Valve
• Body Material: DZR Brass
• Certification: NSF
• Weight: 0.412 pounds
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: 22462LFA
