RWC 103-18-701 Galvanized Bracket and Tube Clamp Kit

Product Description

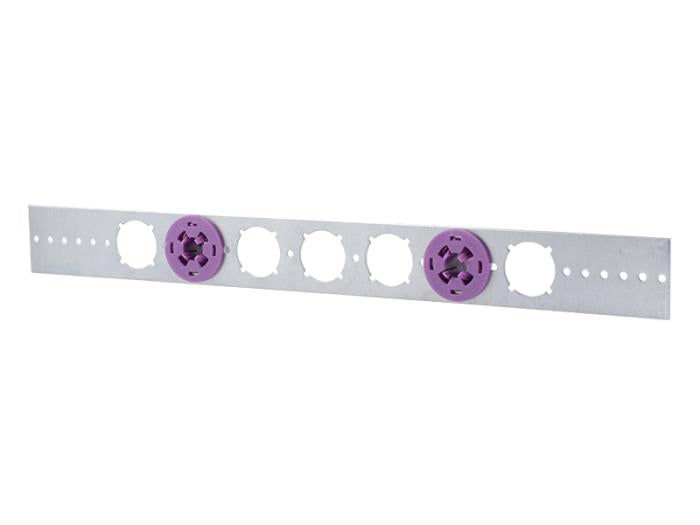

The RWC 103-18-701 is a galvanized bracket and tube clamp kit designed for secure mounting of various tubing types. This kit includes a twenty-inch long, fourteen-gauge galvanized steel bracket with 1-3/8 keyed holes spaced on two centers, suitable for 1/2, 3/4, or 1 inch copper or CPVC tubing, as well as 3/8 or 1/2 inch PEX. The kit provides a robust solution to prevent movement and is ideal for lavatory, sink, and toilet stub-outs. It is recommended for use with Holdrite inserts.

• Includes a twenty-inch galvanized steel bracket and 1/2 inch tube clamps.
• Compatible with PEX, copper, and CPVC tubing.
• Features 1-3/8 keyed holes on two centers for easy installation.

Product Highlights

This kit offers versatility for various plumbing installations, ensuring a secure fit for different pipe sizes.

Product Information

Standard Information

• Manufacturer Part Number: 103-18-701
• Material: 14 gauge CRS, galvanized

Technical Specifications

• Load Rating: 25 pounds
• Industry Standards/Certifications: UPC, IPC, IAPMO
• Pipe Size: 1/2 inch CTS
• Description: 20 inch Galvanized Bracket and 1/2 inch Tube Clamps
