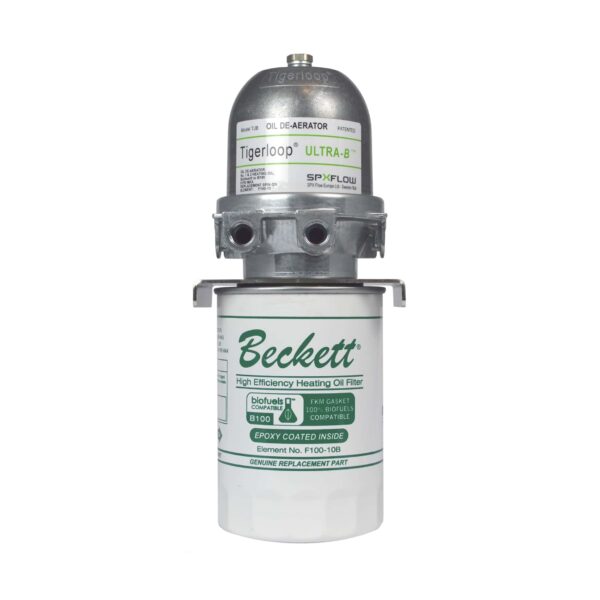

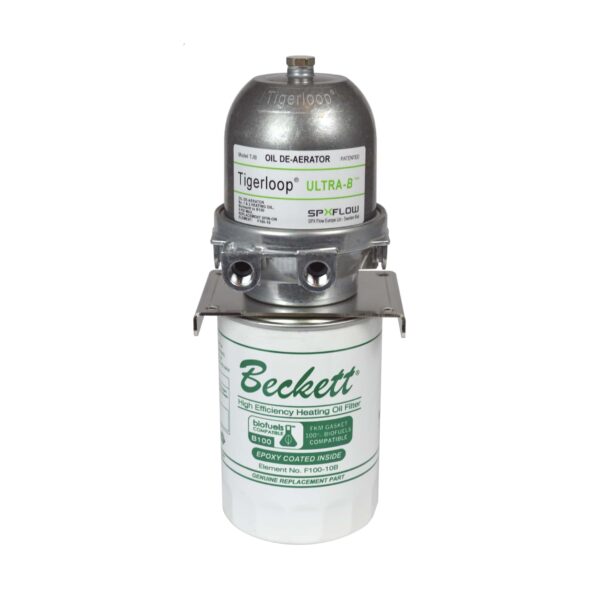

Rw Beckett S220-9 Tigerloop® Ultra-B Combination Deaerator / Filter

Product Description

The RW BECKETT S220-9 Tigerloop® Ultra-B combination Oil Deaerator / Filter combines the advantages of oil deaeration with the added benefit of an integrated 15 micron spin-on oil filter further simplifying installation. Compatible with standard heating fuels and Biodiesel up to 100% (B100).

• Reduces air in the system by up to 95%
• Reduces running vacuum
• Significantly reduces potential leak hazard

Product Highlights

Conditions oil for cleaner combustion, reduces lockouts, flameouts, and sputters, and extends filter element life. Maximum nozzle capacity of 29.0 GPH. Temperature range of 20°F to 105°F.

Product Information

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: S220-9

Technical Specifications

• Maximum Nozzle Capacity: 29.0 GPH
• Temperature Range: 20°F to 105°F
• Filter: 15 micron spin-on oil filter
• Maximum Return Oil Flow: 31.7 GPH
• Maximum Inlet Pressure: 8 PSI
• Connections: 1/4 – NPT (female)
• Replacement Element: F100-10B
• Element Media: 15 micron
• Element Canister: Epoxy Inside
• Fuel: No. 1 & 2 Heating Oil, BioFuels up to B100 BioHeat® Not for use with E-diesel or any fuel containing Ethanol (alcohol)
