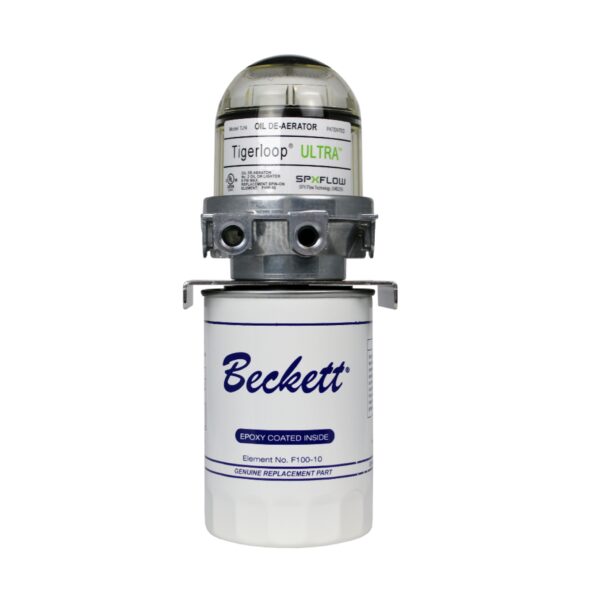

Rw Beckett S220-1 Tigerloop® Ultra Combination Oil Deaerator / Filter Replacement F100-10

Product Description

The RW BECKETT S220-1 Tigerloop® Ultra combination Oil Deaerator / Filter combines oil deaeration with an integrated 10 micron spin-on oil filter, simplifying installation. Compatible with standard heating fuels and Biodiesel up to 5% (B5). It improves efficiency and extends the life of oil heating systems by combining a single pipe system with a two pipe system.

• Reduces air in the system by up to 95%
• Reduces running vacuum
• Significantly reduces potential leak hazard

Product Highlights

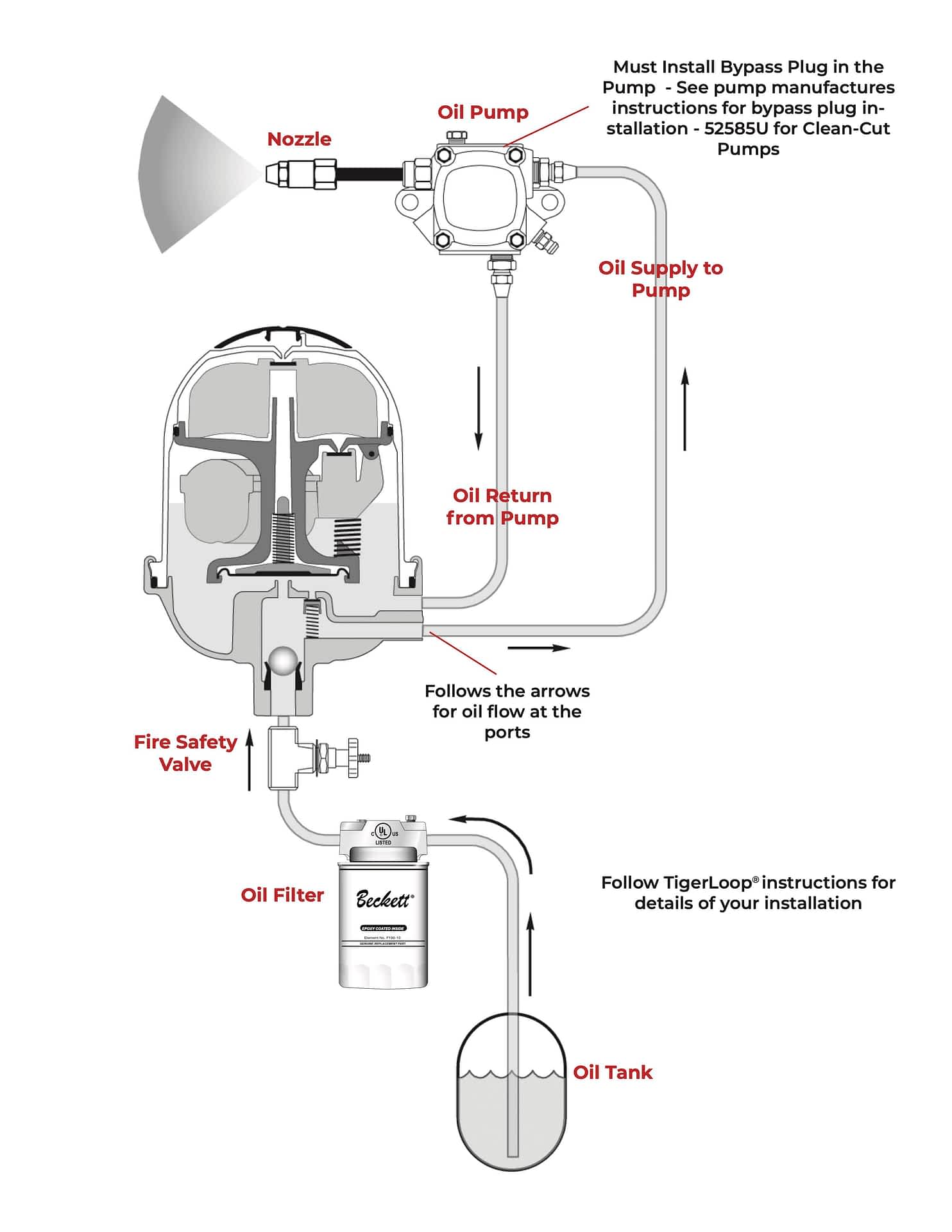

The Tigerloop Oil De-aerator improves the efficiency and extends the life of your oil heating systems. It eliminates many common oil heating problems which prevent a burner from operating at peak performance.

Product Information

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: S220-1

Technical Specifications

• Maximum Nozzle Capacity: 29.0 GPH
• Maximum Return Oil Flow: 31.7 GPH
• Temperature Range: 20 F 105 F
• Maximum Inlet Pressure: 8 PSI
• Connections: 1/4 NPT (female)
• Replacement Element: F100-10
• Element Media: 10 micron
• Element Canister: Epoxy Inside
• Fuel: No. 1 & 2 Heating Oil, B5 BioHeat
• Not for use with: E-diesel or any fuel containing Ethanol (alcohol)
