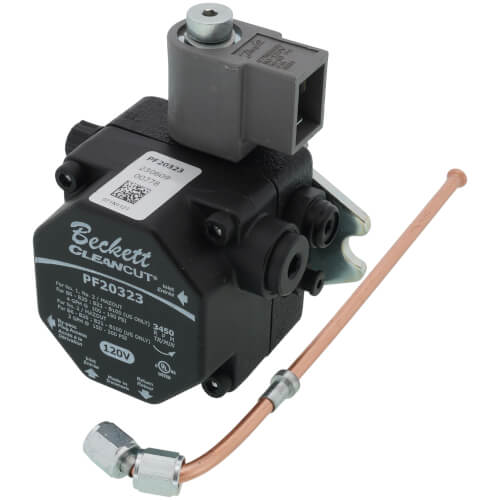

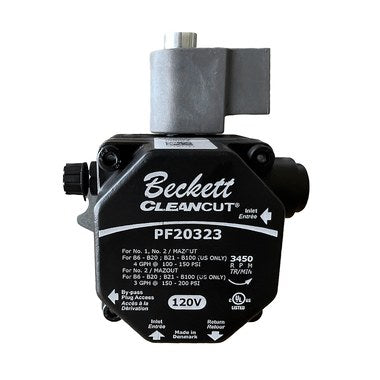

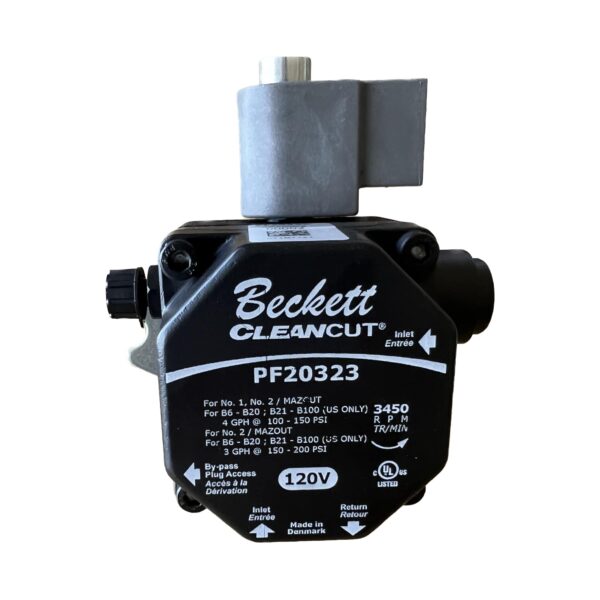

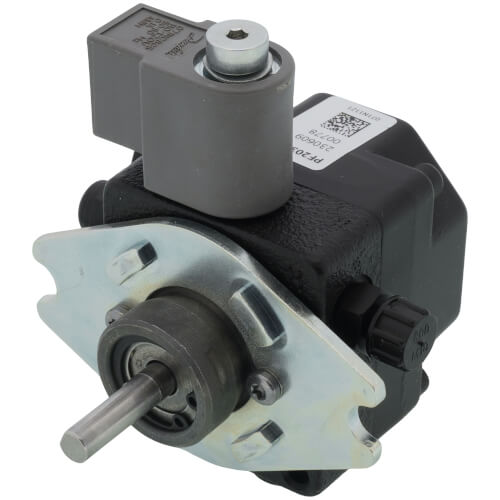

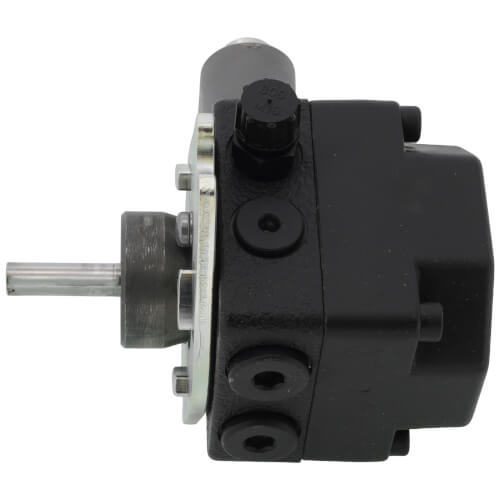

RW Beckett PF20323U RW Beckett CleanCut Oil Pump

Product Description

The RW Beckett CleanCut oil pump PF20323U is designed for reliable fuel delivery. It features a solenoid valve for accurate control of fuel flow. This pump is suitable for heavy-duty applications and operates effectively with #2 and lighter fuel oils.

• UL Listed for fuels up to 100% biodiesel (B100)
• Provides leak-through protection for safe operation
• Delivers up to 4 gallons per hour at 100 psi

Product Highlights

This oil pump is efficient in performance and ensures cleaner operation with reduced motor load. It combines both solenoid control and traditional pump capabilities for enhanced reliability.

Product Information

Standard Information

• Brand: RW Beckett
• Manufacturer Part Number: PF20323U

Technical Specifications

• Nozzle Pressure: 100 - 200 psi
• Factory Set Pressure: 100 psi
• Operating Fluids: #2 & lighter fuel oils Viscosity 1.4 - 12 cSt 0 - 25°C / 32 - 77°F in the pump
• Inlet Pressure: 10 psi max.
• Return Pressure: 10 psi max.
• Suction Height: One pipe: 8' max. Two pipe: 14' max.
• Rate Speed: 3600 rpm max.
• Breakaway Torque: 36 in.-oz. max.
• Voltage: 24, 110-120 or 200-240 VAC, 50/60 Hz, 12 VDC
• Power Consumption: 9 watts
• Ambient Temperature: 46°C / 115°F max.
• Maximum Pressure: 200 psi
• Certification: UL, CUL
• Flow Rate: 3-4 GPH
• Application: B100 BioFuel
