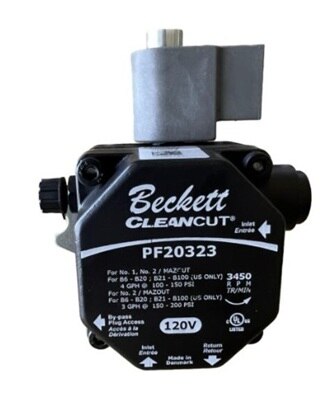

Rw Beckett PF20321U CleanCut Oil Pump 120VAC 1 Stage 3GPH B100

Product Description

The RW Beckett PF20321U CleanCut Oil Pump is a 1-stage pump designed for modern heating systems, offering superior lift capabilities and solenoid valve control. It operates with a nozzle pressure of 100-200 psi and is compatible with #2 and lighter fuel oils, including up to 100% biodiesel (B100). This 120VAC pump has a 3 GPH capacity and a power consumption of 9 watts, ensuring efficient and reliable fuel delivery.

• Cleaner Operation: Solenoid valve cuts oil flow instantly, eliminating soot formation on shut-down and ensuring smoother light-offs.
• More Reliable: Features fewer moving parts and troublesome oil fittings compared to conventional pumps, enhancing durability.
• Reduced Load on Motor: Allows oil to freely bypass the pump's piston during start-up, decreasing motor load.

Product Highlights

UL Listed for B100 fuels, ensuring reliable and efficient fuel delivery with advanced solenoid control.

Product Information

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: PF20321U

Technical Specifications

• Nozzle Pressure: 100 – 200 psi
• Factory Set Pressure: 100 psi
• Operating Fluids: #2 & lighter fuel oils
• Viscosity: 1.4 – 12 cSt, 0 – 25°C / 32 – 77°F in the pump
• Inlet Pressure: 10 psi max.
• Return Pressure: 10 psi max.
• Suction Height (One Pipe): 8′ max.
• Suction Height (Two Pipe): 14′ max.
• Rate Speed: 3600 rpm max.
• Breakaway Torque: 36 in.-oz. max.
• Voltage: 24, 110-120 or 200-240 VAC, 50*/60 Hz (*50 Hz not UL approved), 12 VDC
• Power Consumption: 9 watts
• Ambient Temperature: 46°C / 115°F max.
• Maximum Pressure: 200 psi
• Certification: UL, CUL
• Stage: 1 Stage
• GPH: 3 GPH
• Fuel Compatibility: B100
