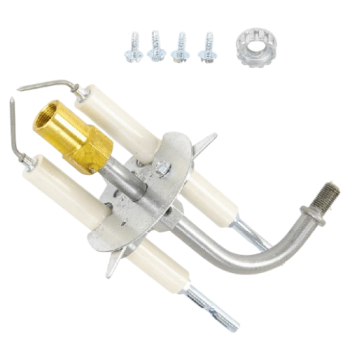

Rw Beckett NL50YB Nozzle Line Electrode Assembly

Product Description

The RW BECKETT NL50YB is a nozzle line electrode assembly designed for use in oil-fired burner systems. This component positions the ignition electrodes in precise alignment with the burner nozzle to establish a reliable spark arc that ignites the fuel-air mixture at startup. The assembly integrates the electrode tips, insulators, and mounting bracket into a single serviceable unit, reducing installation time and ensuring repeatable electrode gap geometry on every install. Licensed oil burner technicians and HVAC service professionals are the primary installers of this part.

The NL50YB electrode assembly is suited for residential and light commercial oil heating applications where the Beckett burner platform is the standard equipment. It is typically installed during routine burner tune-ups, after electrode porcelain insulator failure, or when carbon tracking causes ignition faults. Replacing the full assembly rather than individual components restores factory electrode positioning and eliminates variables that can cause nuisance lockouts or delayed ignition.

Key Features

• Integrated nozzle line design positions electrodes relative to the nozzle centerline for consistent spark placement
• One-piece assembly simplifies field replacement and reduces setup time
• Porcelain insulators resist heat and fuel contamination common in oil burner combustion chambers
• Direct OEM-style fit eliminates need for field adjustment of electrode gap on installation

Compatibility

Designed as an OEM-style replacement electrode assembly for Beckett oil-fired burner units used in residential and light commercial heating systems.

Installation Notes

This assembly is installed by licensed oil burner technicians in accordance with NFPA 31 and local authority requirements. Always shut off power to the burner and close the fuel supply valve before removing the old electrode assembly. Inspect the nozzle and nozzle adapter for wear or deposits before installing the new assembly, as combustion issues are often caused by multiple worn components. After installation, verify electrode positioning visually before restoring power and conducting a combustion analysis.
