Rw Beckett f0 Flame Retention Head 0.4-0.75 Gph Af Afg Burner

Product Description

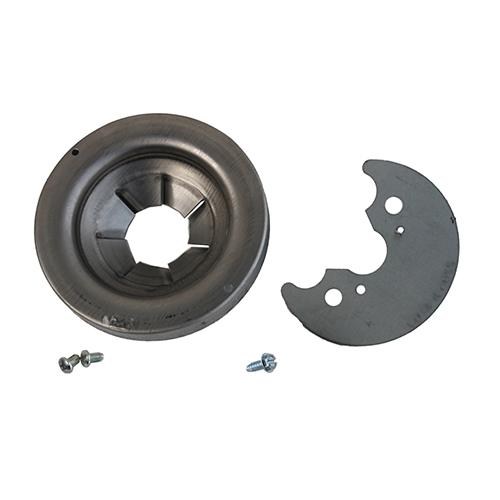

The RW BECKETT f0 is a flame retention head assembly designed for residential and light-commercial oil burner applications. This component mounts inside the burner air tube and controls the air-fuel mixing pattern to produce a stable, efficient flame. It is rated for firing rates between 0.4 and 0.75 gallons per hour (GPH), making it suitable for lower-input heating systems. Licensed oil burner technicians install and service this part during routine tune-ups, nozzle changes, or combustion efficiency adjustments. The flame retention design helps maintain consistent ignition and stable combustion across the rated firing range.

This head assembly is used on the RW BECKETT AF and AFG series oil burners, which are among the most widely installed residential oil burner platforms in North America. It is appropriate for forced-air furnaces, boilers, and water heaters equipped with these burner models operating within the 0.4 to 0.75 GPH firing rate range. Service technicians replacing worn or damaged retention heads as part of an annual burner service will find this a direct-fit component for the specified models.

Key Features

• Rated firing range of 0.4 to 0.75 GPH for precise combustion matching
• Flame retention head design promotes stable, efficient ignition
• Designed for use on AF and AFG series oil burners
• 5-year warranty from date of manufacture
• OEM-style replacement suitable for annual burner service intervals

Compatibility

Designed for use on the RW BECKETT AF and AFG series oil burners at firing rates of 0.4 to 0.75 GPH.

Installation Notes

Installation should be performed by a licensed oil burner technician in accordance with applicable local codes and NFPA 31 standards. Shut down the burner and disconnect power before removing the air tube or accessing the retention head. After installation, a combustion analysis should be performed to verify proper air-fuel ratio, CO levels, and smoke number. Do not operate the burner outside the rated firing range for this head assembly.

Technical Specifications

• Item Type: Flame Retention Head
• Compatible Burner Models: AF, AFG Oil Burner
• Firing Rate: 0.4 to 0.75 GPH
• Warranty: 5 years from date of manufacture

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: f0
