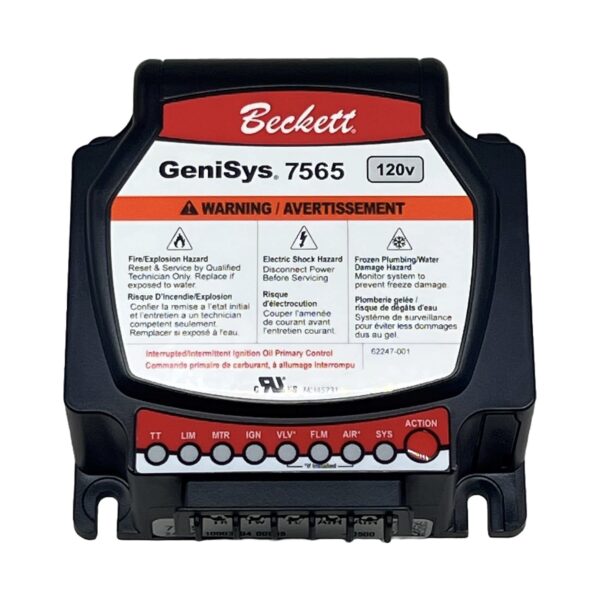

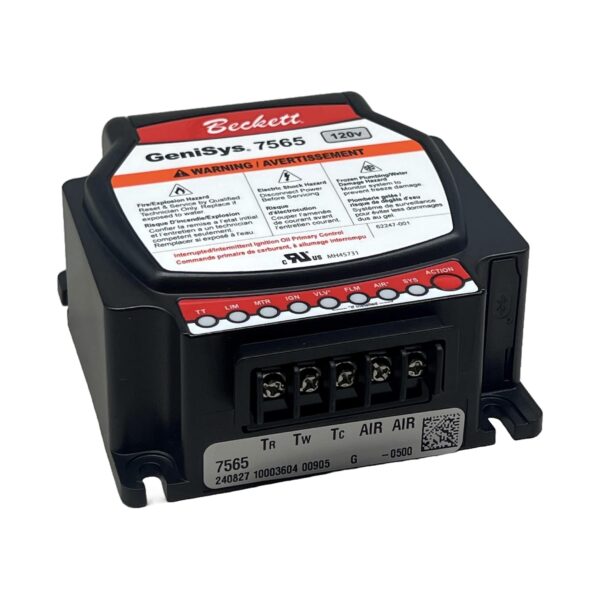

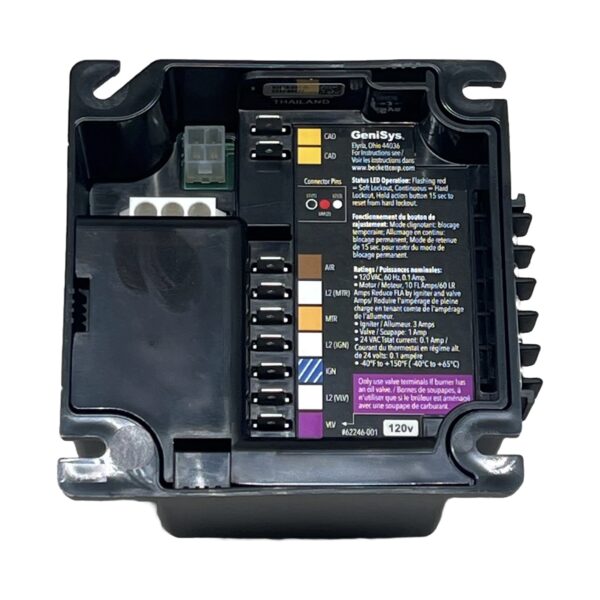

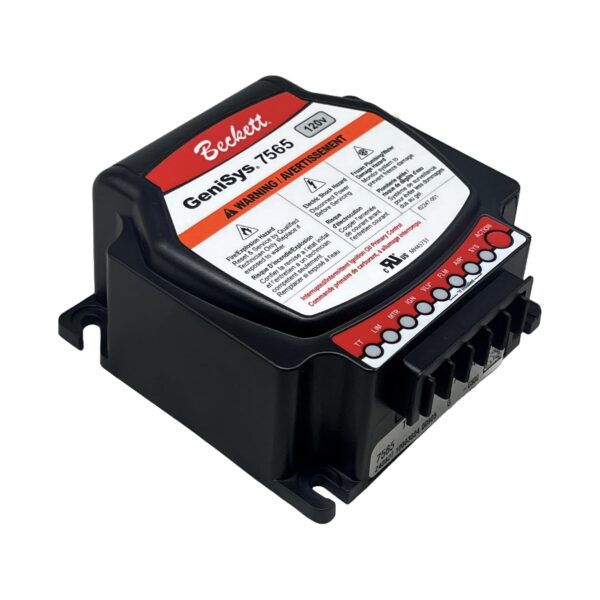

Rw Beckett 7565 GeniSys advanced oil burner control 120V

Product Description

The RW BECKETT 7565 GeniSys Advanced Oil Burner Control is a 120 Vac primary safety control for residential and light commercial oil burners, supporting applications like boilers, furnaces, and water heaters with firing rates under 20 gph. Operating at 60 Hz, it integrates with the Beckett 7006-series CAD cell or equivalent flame sensor to manage the oil burner motor, igniter, and optional solenoid valve, ensuring precise operation.

• Provides history of the last 50 cycles and 15 faults for diagnostic purposes.
• Compatible with #2 fuel oil, up to 100% biodiesel, and up to 100% renewable diesel.
• Offers enhanced diagnostics and programming capabilities through the myTechnician app.

Product Highlights

Advanced 120V oil burner control with myTechnician app compatibility, offering enhanced diagnostics and broad fuel compatibility for various heating systems.

Product Information

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: 7565

Technical Specifications

• Input Voltage: 120 Vac Nominal (102-132 Vac)
• Input Current: 100 mA plus burner motor, igniter, and valve loads
• Frequency: 60 Hz
• Combustion Air/Blocked Vent Input (Front): 10mA @ 24Vac min
• Combustion Air/Blocked Vent Input (Underside): 1.9mA @ 120Vac min
• Thermostat Anticipator Current: 0.1 A
• Thermostat Voltage: 24 Vac
• Motor Output: 120 Vac, 10 FLA, 60 LRA
• Igniter Output: 120 Vac, 3 A
• Solenoid Valve Output: 120 Vac, 1 A
• Storage Ambient Temperature: -40°F to +150°F (-40°C to +65°C)
• Operating Ambient Temperature: -40°F to +150°F (-40°C to +65°C)
• Moisture: 5 to 95% RH, non-condensing and non-crystallizing
• Approvals: UL 60730-1, UL 60730-2-5, CSA E60730-1, C22.2 NO. 60730-2-5
