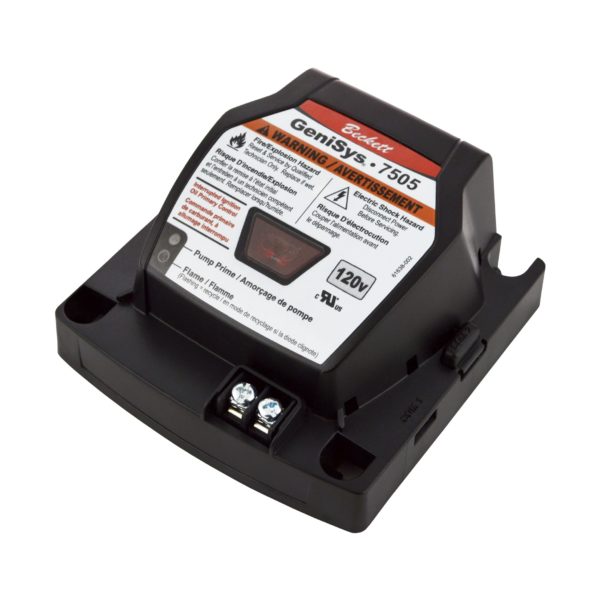

Rw Beckett 7505p1515 GeniSys 7505 120v oil burner control

Product Description

The RW BECKETT 7505P1515 GeniSys 7505 120V Oil Burner Control is a primary safety control for residential and light commercial oil burners. Operating at 120 VAC, it is suitable for boiler, furnace, and water heater applications. This control manages the oil burner's motor, igniter, and optional solenoid valve, featuring interrupted ignition with a 15-second lockout time. It includes front-mounted 24 VAC thermostat terminals for compatibility with various thermostats.

• Water Resistant design for enhanced durability in various environments.
• Compatible with both thermostat and boiler control systems.
• Offers customizable pre-time and post-time settings for operational flexibility.

Product Highlights

Advanced safety control for oil burners with diagnostic capabilities and flexible programming options.

Product Information

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: 7505P1515

Technical Specifications

• Input Voltage: 102 to 132 Vac
• Input Current: 150 mA plus burner motor, igniter, and valve loads
• Input Frequency: 60 Hz
• Output Motor: 120 Vac, 10 full load amps (FLA), 60 locked rotor amps (LRA)
• Output Igniter: 120 Vac, 3 A @ 0.7 PF min
• Output Solenoid Valve: 120 Vac, 1 A @ 0.7 PF min
• Output Thermostat Anticipator Current: 0.1 A
• Output Thermostat Voltage: 24 Vac
• Oil Burner Capacity: < 20gph
• Control Programming Standard: UL372 Group 2
• Operating Temperature: -40°F to +150°F (-40°C to +65°C)
• Humidity: 5 to 95% RH, non-condensing and non-crystallizing
• Certifications: Underwriters Laboratory Recognition per UL372 and UL1998, and CSA C22.2 No. 199
• Lockout Time: 15 sec
• Valve-On Delay Time: 15 sec
• Motor-Off Delay Time: 15 sec
