Rw Beckett 51824U Igniter 120V (S base) BKT-30678

Product Description

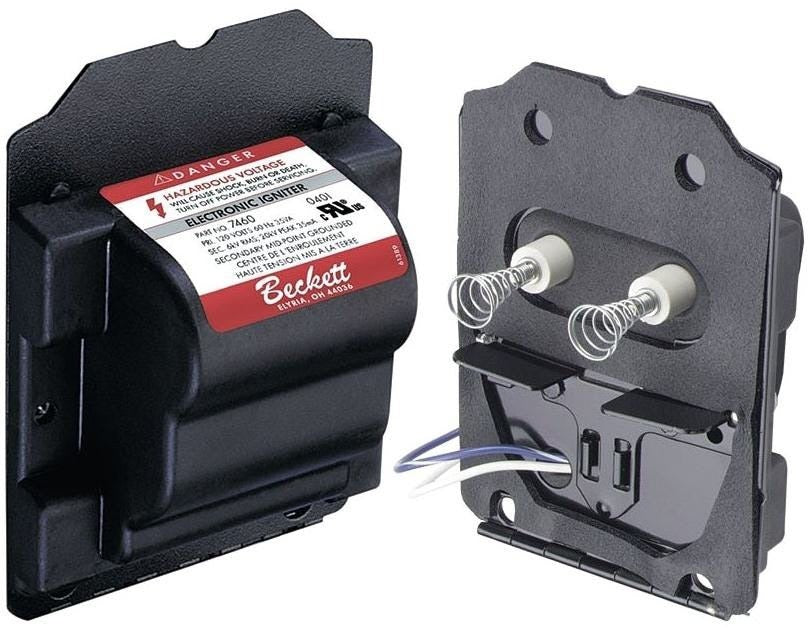

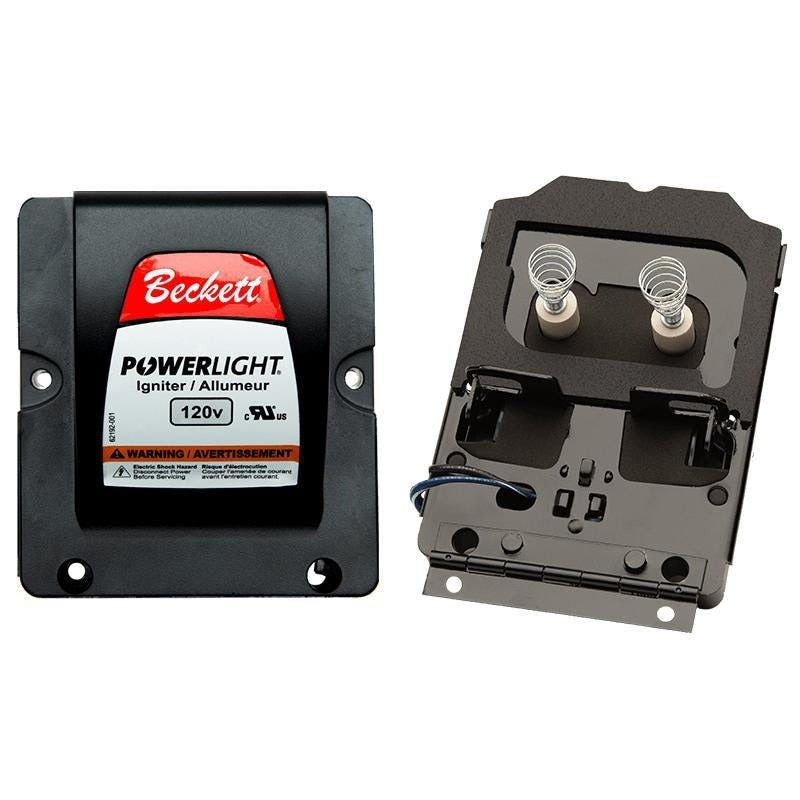

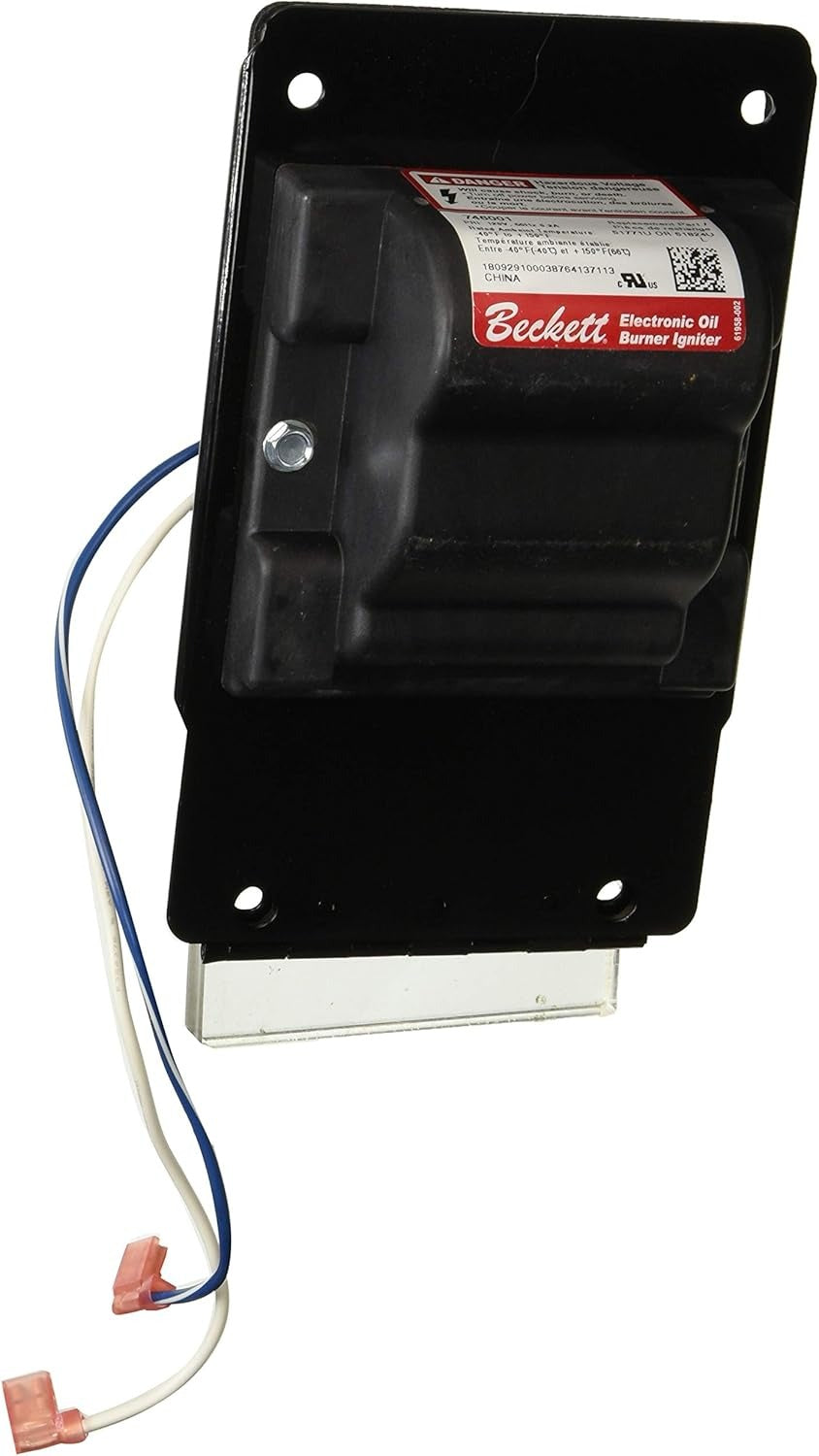

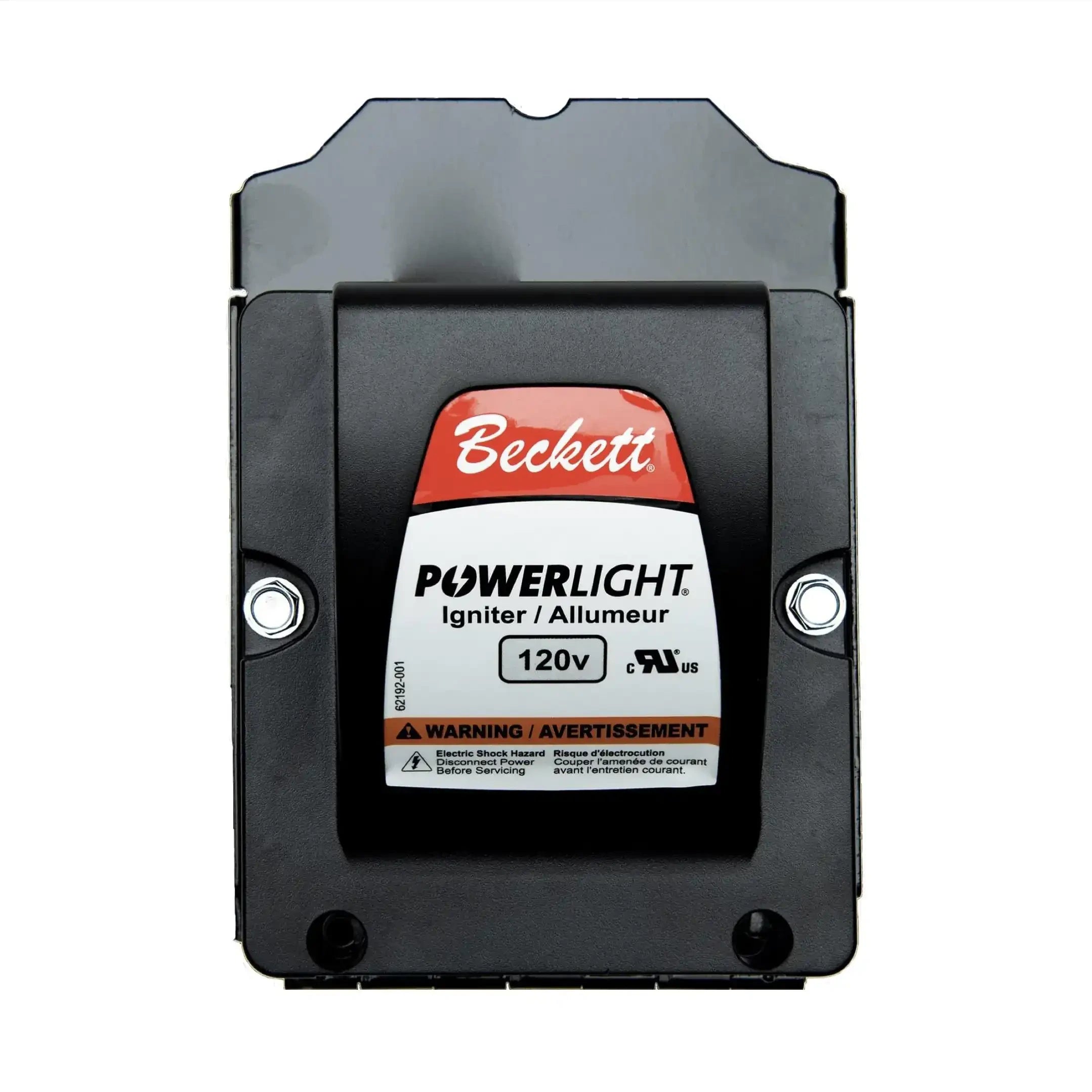

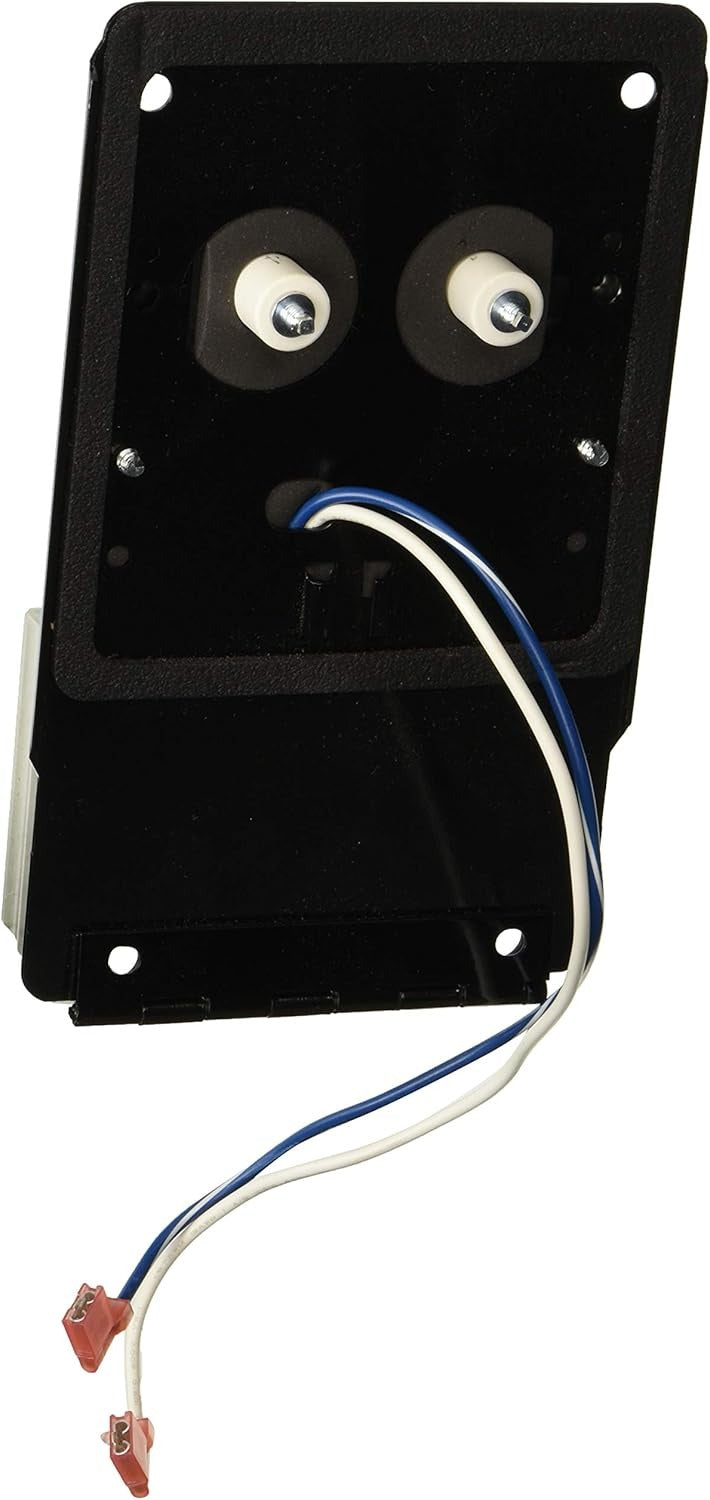

RW Beckett 51824U is an electronic oil burner igniter with an S-style base designed as a replacement for compatible Beckett burners. It operates on 120 VAC, 60 Hz and draws 35 VA to deliver 6 kV RMS (20 kV peak) output at 35 mA RMS. The unit is vacuum-encapsulated in a high-temperature thermoplastic case for moisture and heat resistance and is UL recognized for US and Canada use.

• S-style base replacement igniter compatible with multiple Beckett models (S, SF, SMG, SR, SM, CF500, CF800).
• Electrical: 120 VAC input, 60 Hz, 35 VA power consumption; output 6 kV RMS (20 kV peak), 35 mA RMS.
• Construction: vacuum-encapsulated synthetic resin, thermoplastic housing, quick-connect terminals, moisture- and vibration-resistant.

Product Highlights

Electronic 120 VAC igniter with S base, 6 kV RMS (20 kV peak) output, UL recognized, direct-fit for many Beckett burner models

Product Information

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: 51824U
• Country of Origin: United States

Technical Specifications

• Brand: RW Beckett
• MPN: 51824U
• Product Type: Electronic oil burner igniter
• Input Voltage: 120 VAC
• Frequency: 60 Hz
• Power Consumption: 35 VA
• Output Voltage: 6 kV RMS (20 kV peak)
• Output Current: 35 mA RMS
• Secondary: Mid-point ground
• Operating Temperature Range: -20 to 150 F
• Storage Temperature Range: -40 to 150 F
• Approvals: UL recognized in the US and Canada
• Certifications: CSA Certified
• Compatible With: Beckett S, SF, SMG, SR, SM, CF500, CF800
• Material: High-temperature thermoplastic housing; vacuum-encapsulated with synthetic resin
• Dimensions: 4.50 x 3.50 x 4.50 inches (L x W x H)
• Weight: 2.10 lb
• Mounting Type: Direct replacement; mounts to Beckett burner chassis
• Connection Type: Quick-connect terminals
• Operation: Solid-state electronic ignition
• Environmental Resistance: Moisture-resistant; vibration-tolerant
• Replacement MPN: BKT-30678
