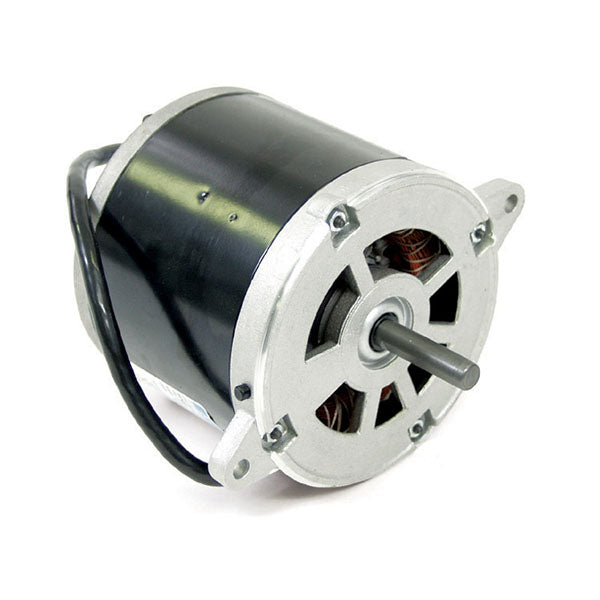

Rw Beckett 22825U AC Burner Motor 1/7 HP 3450 RPM

Product Description

The RW BECKETT 22825U AC Burner Motor is designed for AFG Series burners. This motor operates at 240V with a power of 1/7 HP and a speed of 3450 RPM. It provides combustion air and pressurized oil to the burner, suitable for Beckett AF/AFG Oil and Renewable Fuels Burner lines. It replaces 21174U.

• 1/7 HP
• 3450 RPM
• 240v

Product Highlights

This AC Burner Motor is a PSC motor with auto thermal protection, designed for Beckett AFG burners.

Product Information

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: 22825U
• Country of Origin: US

Technical Specifications

• Horse Power: 1/7 hp
• RPM: 3450 rpm
• Voltage: 240V
• Brand: R.W. Beckett
• Frequency: 50/60 Hz
• Motor Type: PSC
• Current Draw: 1.7 FLA
• Construction Type: PSC (Permanent Split Capacitor)
• Bearing System: Ball bearing
• Thermal Protector: Manual reset
• Mounting frame: NEMA 48M
• Lamination width: 3.7″
• Body length: 4.56″
• Body width: 3.93″
• Manufacturer: Beckett
• Frame: 48M
• MPN: 22825U
