Rw Beckett 12810 Fusible Link Inline Valve 3/8 Inch Fpt

Product Description

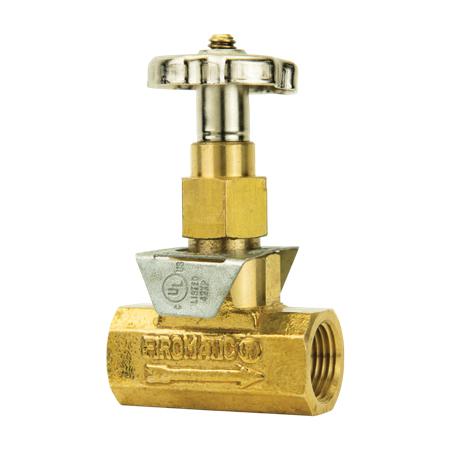

The RW BECKETT 12810 is a fusible link inline safety valve designed to shut off fuel oil flow from the storage tank in the event of a fire. Rated for a maximum working pressure of 10 psi, the valve features high-quality brass construction with a double seal washer and o-ring stem system using Viton-equivalent materials. It is compatible with No. 2 fuel oil and kerosene, making it well suited to residential oil-fired heating systems. The valve body is embossed with a directional arrow to confirm correct flow orientation during installation. A built-in manual handwheel allows it to double as a service valve.

This valve is intended for use in residential oil heating installations where local codes and NFPA 31 require a fusible link shutoff between the oil storage tank and the burner. The 3/8-inch FPT by 3/8-inch FPT straight inline configuration fits common fuel-line connections in typical boiler and furnace oil supply runs. Licensed oil heat technicians and plumbers routinely specify this type of valve during new installations, equipment changeouts, and code-compliance upgrades.

Key Features

• Fusible link design shuts off oil flow automatically when exposed to fire heat
• High-quality brass body construction for durability in fuel oil service
• Double seal washer and o-ring stem with Viton-equivalent materials resists fuel oil and kerosene
• Integrated manual handwheel functions as a service valve for routine shutoff
• Directional flow arrow embossed on valve body aids correct installation
• Listed to UL 842 for use in the United States and Canada (cULus MH 46634)

Compatibility

Approved for use with kerosene, No. 1 and No. 2 fuel oil per ASTM D396, biodiesel blends B6 through B20, and diesel fuel per ASTM D975. Designed as an OEM-style inline fusible safety valve for residential oil heating fuel supply lines where NFPA 31 compliance is required.

Installation Notes

Installation should be performed by a licensed oil heat technician or plumber in accordance with NFPA 31 and applicable local codes. Shut off the oil supply and relieve any line pressure before removing or installing the valve. Confirm the embossed flow arrow on the valve body aligns with the direction of fuel flow toward the burner. Inspect thread connections for proper sealing with approved thread sealant rated for fuel oil service before returning the system to operation.

Technical Specifications

• Connection Size: 3/8 inch FPT x 3/8 inch FPT
• Configuration: Straight inline
• Maximum Pressure Rating: 10 psi
• Body Material: Brass
• Seal Material: Viton-equivalent (double washer and o-ring)
• Closing Temperature: 165 degrees F or 200 degrees F depending on model
• Fuel Compatibility: Kerosene, No. 1 and No. 2 fuel oil (ASTM D396), B6-B20 biodiesel (ASTM D396), diesel fuel (ASTM D975)
• Listing: cULus MH 46634, UL 842
• Code Compliance: NFPA 31

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: 12810
