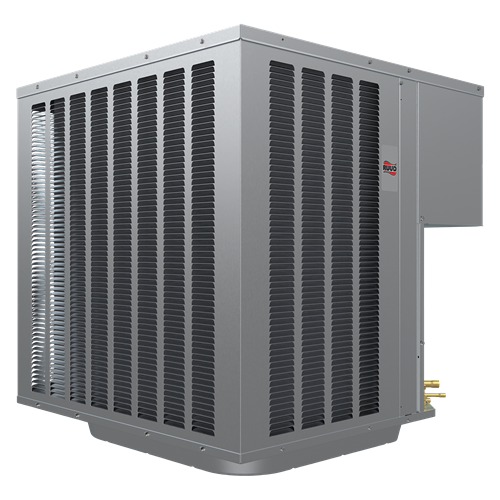

Ruud WP14AY36AJ2NA Endeavor Line Choice Series Heat Pump 3 Ton

Product Description

The Ruud WP14AY36AJ2NA Endeavor Line Choice Series Heat Pump is a three-ton unit designed for residential applications. It has a SEER2 rating of 14.3 and uses R-454B refrigerant. This heat pump features a two-stage scroll compressor, ensuring accurate temperature regulation. The unit functions within a voltage range of 208 to 230 V and is equipped with an expanded valve space and an integrated Refrigerant Detection System, enhancing system reliability.

• Two-stage scroll compressor for precise control.
• Fully louvered steel cabinet for protection against environmental damage.
• Integrated Refrigerant Detection System for safety.

Product Highlights

Product Information

Standard Information

• Type: Heat Pump
• Nominal Capacity: 36000 Btu/h

Technical Specifications

• Refrigerant Type: R-454B
• Voltage: 208 to 230 V
• Compressor Type: Scroll
• Sound Level: 72 dB
• Number of Phases: 1
• Frequency: 60 Hz
• Cooling Capacity: 34200 Btu/h
• Heating Capacity (47°F): 33600 Btu/h
• Dimensions: 33.655 inches (Depth) x 33.655 inches (Width) x 35.17 inches (Height)
• Weight: 213 pounds
• Compressor Stages: Two Stage
• Net Face Area: 19.5 ft²
