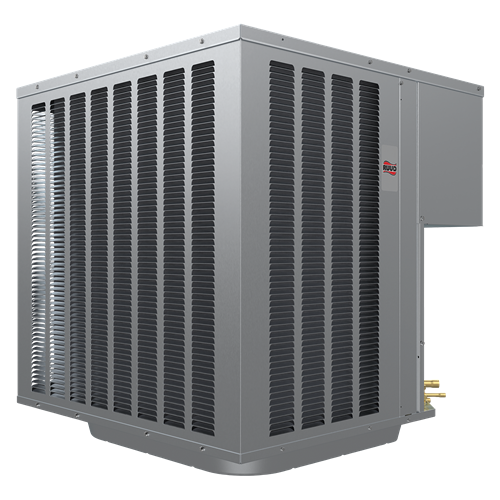

Ruud WP14AY30AJ2NA Endeavor Line Choice Series Heat Pump 30000 Btu/h

Product Description

The Ruud WP14AY30AJ2NA Endeavor Line Choice Series Heat Pump provides efficient heating and cooling with a nominal capacity of thirty thousand Btu per hour. It features a cooling efficiency rating of 15.2 SEER2, heating efficiency of 7.8 HSPF2, and operates on R-454B refrigerant at 208 to 230 volts.

• Fully louvered steel cabinet protects against weather and yard hazards.
• Includes a two-stage scroll compressor for improved efficiency and temperature control.
• Features PlusOne Refrigerant Detection System for enhanced protection and simplified wiring.

Product Highlights

This heat pump is built for performance with a low sound level of 72 dB and a robust design suitable for various outdoor environments.

Product Information

Standard Information

• Type: Heat Pump
• Refrigerant Type: R-454B

Technical Specifications

• Nominal Capacity: 30000 Btu/h
• Compressor Type: Scroll
• Sound Level: 72 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequence: 60 Hz
• Maximum Overcurrent Protection: 30 A
• Minimum Circuit Ampacity: 20 A
• Compressor - Rated Load Amps: 15 A
• Compressor - Locked Rotor Amps: 82 A
• CFM: 3391 ft³/min
• SEER2: 14.3
• EER2: 9.0
• HSPF2: 7.5
• Dimensions: 33.655 x 33.655 x 27.17 in
• Material: Steel
