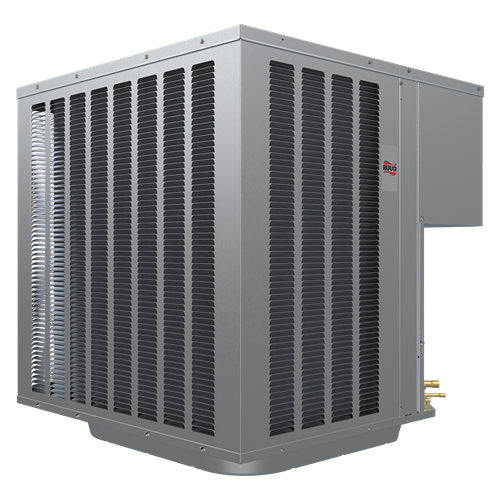

Ruud WP14AY24AJ2NA Endeavor Line Choice Series iC Heat Pumps 2.0 ton 24000 Btu/h

Product Description

The Ruud WP14AY24AJ2NA Endeavor Line Choice Series iC Heat Pumps is designed for reliable cooling and heating with a capacity of 24000 Btu/h. This heat pump offers efficiency ratings with a SEER2 of 14.3 and utilizes R-454B refrigerant for environmental safety. The unit features a durable steel cabinet that protects against external elements.

• Two-stage scroll compressor for enhanced temperature management.
• Low sound levels of 73 dB for quiet operation.
• Includes PlusOne Refrigerant Detection System for improved system safeguarding.

Product Highlights

Reliable performance for residential or commercial heating and cooling needs.

Product Information

Standard Information

• Brand: Ruud
• MPN: WP14AY24AJ2NA

Technical Specifications

• Nominal Capacity: 24000 Btu/h
• Refrigerant Type: R-454B
• Compressor Type: Scroll
• Sound Level: 73 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 25 A
• Minimum Circuit Ampacity: 16 A
• Rated Load Amps: 12 A
• Locked Rotor Amps: 65 A
• Condenser Fan Motor - Full Load Amps: 0.75 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 10.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 22
• Outdoor Fan Diameter: 20 in
• Number of Blades: 3
• Motor HP: 1/6 hp
• CFM: 2620 ft³/min
• RPM: 1075
• Watts: 145 W
• Total Capacity: 22800 Btu/h
• Net Sensible Capacity: 17500 Btu/h
• Net Latent Capacity: 5300 Btu/h
• SEER2: 14.3
• EER2: 9.0
• HSPF2: 7.5
• Indoor CFM: 775 ft³/min
• Heating Capacity - 47°F: 22800 Btu/h
• Heating Capacity - 17°F: 14000 Btu/h
• COP - 47°F: 3.60
• COP - 17°F: 2.50
• Depth: 29.543 in
• Width: 29.543 in
• Height: 25.17 in
• Shipping Depth: 32.625 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Number of Stages: 2
