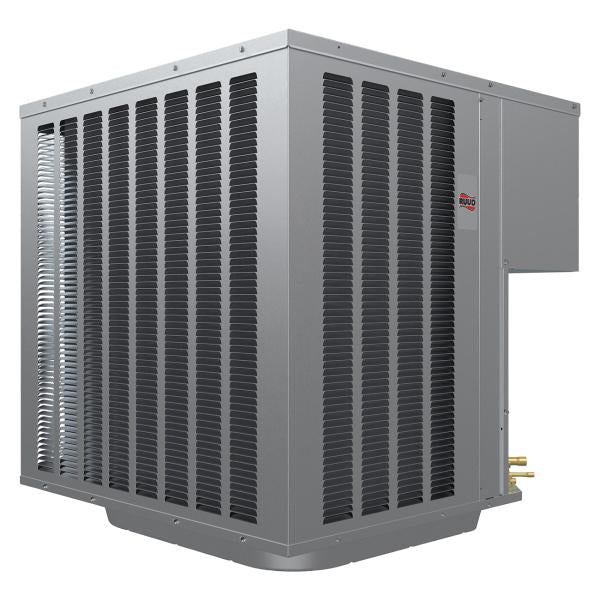

Ruud WA14AY24BJ1NA Choice iC Air Conditioner, 208/230 V, 24000 Btu/hr, 2 Ton

Product Description

The RUUD WA14AY24BJ1NA air conditioner from the Choice iC Series features a 2-ton nominal capacity and provides 22800 Btu/hr cooling and 24000 Btu/hr. Operates at 208/230 V, 14 A, and 7.03 kW with a scroll compressor and a 3146 cfm CFM rating. Designed for vertical configuration with R-454B refrigerant.

• 7mm condenser coil reduces refrigerant requirements up to 15%.
• Louvered panels and rugged corner posts provide excellent protection.
• Sound-dampening features ensure low sound levels.

Product Highlights

Efficient and durable air conditioner designed for quiet operation and reduced environmental impact.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: WA14AY24BJ1NA

Technical Specifications

• Type: Outdoor Unit
• Brand: RUUD
• Capacity: 22800 Btu/hr
• Tonnage: 2
• SEER2: 14.8
• Cooling: 22800 Btu/hr
• Power: 208/230 V
• Current: 14 A
• Power Consumption: 7.03 kW
• HP Rating: 1/6 hp
• Rotational Speed: 825 rpm
• Frequency: 60 Hz
• Phase: 1 ph
• Compressor: Scroll Compressor
• Configuration: Vertical Configuration
• CFM Rating: 3146 cfm
• EER: 12
• SEER: 15.2
• Stages: 1 Stage
• Refrigerant: R-454B
• Liquid Line: 3/8 in
• Suction Line: 3/4 in
• Sound Level: 71 dBA
• Fins per Inch: 24 FPI
• Fuse: 20 A
• Face Area: 13.3 sq-ft
