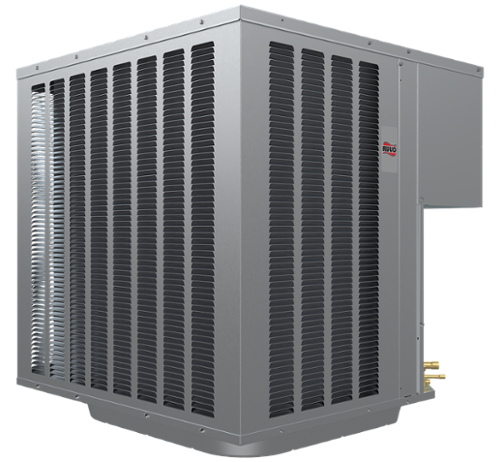

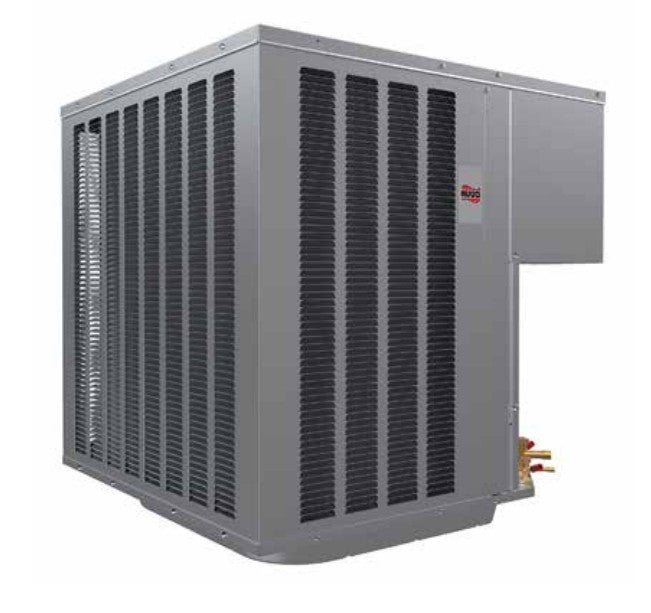

Ruud WA14AY18AJ1NA R454b Condenser 1.5 tonnage

Product Description

The Ruud WA14AY18AJ1NA R454B Condenser is a residential condenser with 1.5 tonnage and 18,000 BTU/HR capacity. Designed for SEER2 14+ applications, it features a scroll compressor and operates on 208-230/1/60 voltage. The condenser has a refrigerant detection system and is designed for sustainability with low GWP.

• Features a fully louvered steel cabinet for protection from yard hazards and weather corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Easily accessible control box allows for ease of installation and serviceability.

Product Highlights

This Ruud condenser is an efficient and sustainable choice for residential cooling, featuring a durable design and easy serviceability.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: WA14AY18AJ1NA
• Country of Origin: USA

Technical Specifications

• Application: Condenser SEER2 14+
• Tonnage: 1.5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Refrigerant Type: R454B
• Compressor Type: Scroll
• Maximum overcurrent protection (amps): 15
• Communication: Non-Communicating
• Capacity BTU/HR: 18,000
• STANDARD RATING (DBA): 70
• Liquid Line O.D. - in.: 3/8
• Suction Line O.D. - in.: 3/4
• Length (inches): 29.54
• Width (inches): 29.54
• Height (inches): 25.17
• Individual Item Weight - lbs.: 134
