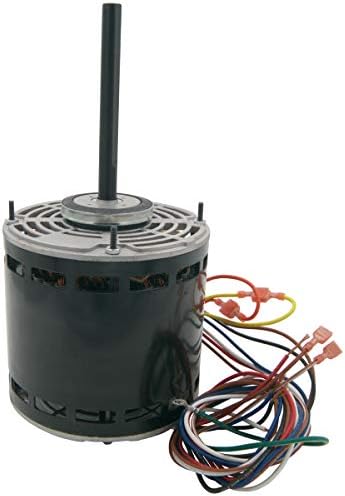

Ruud W51-12BJA3-02 Universal Blower Motor 1/2 HP (1075 RPM/3 Speed)

Product Description

The RUUD W51-12BJA3-02 TrueLine™ furnace blower motor is designed to withstand high humidity environments, offering corrosion resistance for an extended lifespan. This HVAC motor features unique rotor treatment and varnish dipped windings, making it an ideal replacement for residential and light commercial HVAC applications. It comes equipped with three speeds and reversible rotation capabilities.

• Corrosion-resistant design for extended lifespan.
• Features unique rotor treatment and varnish dipped windings.
• Equipped with three speeds and reversible rotation.

Product Highlights

Ideal for residential and light commercial HVAC applications, this blower motor offers three speeds and reversible rotation.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: W51-12BJA3-02

Technical Specifications

• Application: Blower
• Bearing type: Sleeve
• Drive type: Direct drive
• FLA at 208V (A): 2.70
• FLA at 230V (A): 2.70
• Frame size: 48
• Frequency (Hz): 60
• High speed (RPM): 1075
• Horsepower: 0.5 Horsepower
• Input Voltage (V): 208/230
• Keyed/Flat shaft length (inch): 4
• Motor body diameter (inch): 5.625
• Motor body length (inch): 6.375
• Mounting: Shell-band, thru-bolt
• Number of phases: 1
• Number of speeds: 3
• Overall motor length (inch): 11.375
• Overall shaft length (inch): 5
• Rotation direction (OSE): Reversible
• Shaft diameter (inch): 0.5
• Voltage: 230 Volts
• Material: Copper
