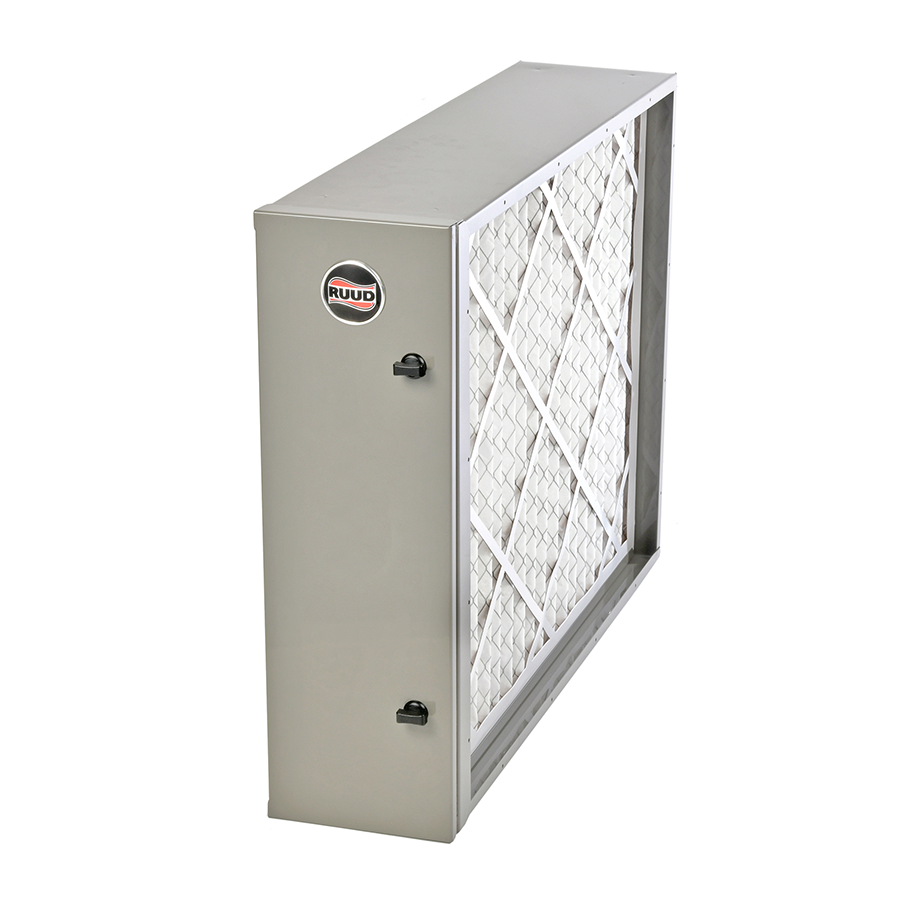

Ruud UXHF-E24M13 Media Air Cleaner Merv 13 21x24.5x5

Product Description

The RUUD UXHF-E24M13 is a media air cleaner designed for ducted central heating and air conditioning systems in residential and commercial applications. It ships with a high-efficiency MERV 13 filter capable of capturing particles as small as 0.5 micron, including pollen, dust, and pet dander. The unit measures 21 inches x 24.5 inches x 5 inches and is built with heavy-duty metal construction for long-term durability in forced-air systems. Filtration meets ANSI/ASHRAE 52.2 standards. Licensed HVAC technicians install this cleaner inline with existing ductwork as part of a whole-system indoor air quality solution.

The UXHF-E24M13 is suited for residential and light commercial forced-air heating and cooling systems rated up to five tons. It integrates into central ducted systems where improved particulate filtration is required without a standalone air purification unit. The media filter design allows straightforward replacement without specialized tools, reducing maintenance time during routine service calls. It is appropriate for gas furnace, heat pump, and air handler applications where duct dimensions accommodate the 21 x 24.5 x 5 inch housing.

Key Features

• MERV 13 filter captures particles as small as 0.5 micron, including pollen, dust, and dander
• Meets ANSI/ASHRAE 52.2 filtration performance standards
• Heavy-duty metal construction for durability in continuous-duty HVAC installations
• Compatible with forced-air systems up to five tons capacity
• Tool-free media filter replacement for efficient field servicing
• Fits ducted residential and commercial central heating and cooling systems

Compatibility

Designed for use in ducted residential and commercial forced-air heating and cooling systems up to five tons. Suitable for gas furnace, heat pump, and air handler installations where duct geometry accommodates a 21 x 24.5 x 5 inch media air cleaner housing.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut down the air handler or furnace and disconnect power before cutting into or modifying existing ductwork. The unit mounts inline with supply or return duct runs; verify duct dimensions match the 21 x 24.5 x 5 inch housing before cutting. Follow local mechanical codes and manufacturer clearance requirements when securing the cabinet to the duct system.

Technical Specifications

• Filter Efficiency Rating: MERV 13
• Minimum Particle Size Captured: 0.5 micron
• Unit Dimensions: 21 inches x 24.5 inches x 5 inches
• Maximum System Capacity: 5 tons
• Construction Material: Metal
• Filtration Standard: ANSI/ASHRAE 52.2
• Application: Residential and commercial ducted forced-air HVAC systems

Standard Information

• Brand: RUUD
• Manufacturer Part Number: UXHF-E24M13
