Ruud UXAQ-AT22B3 Electronic Air Purifier 2000 Cfm Merv 13

Product Description

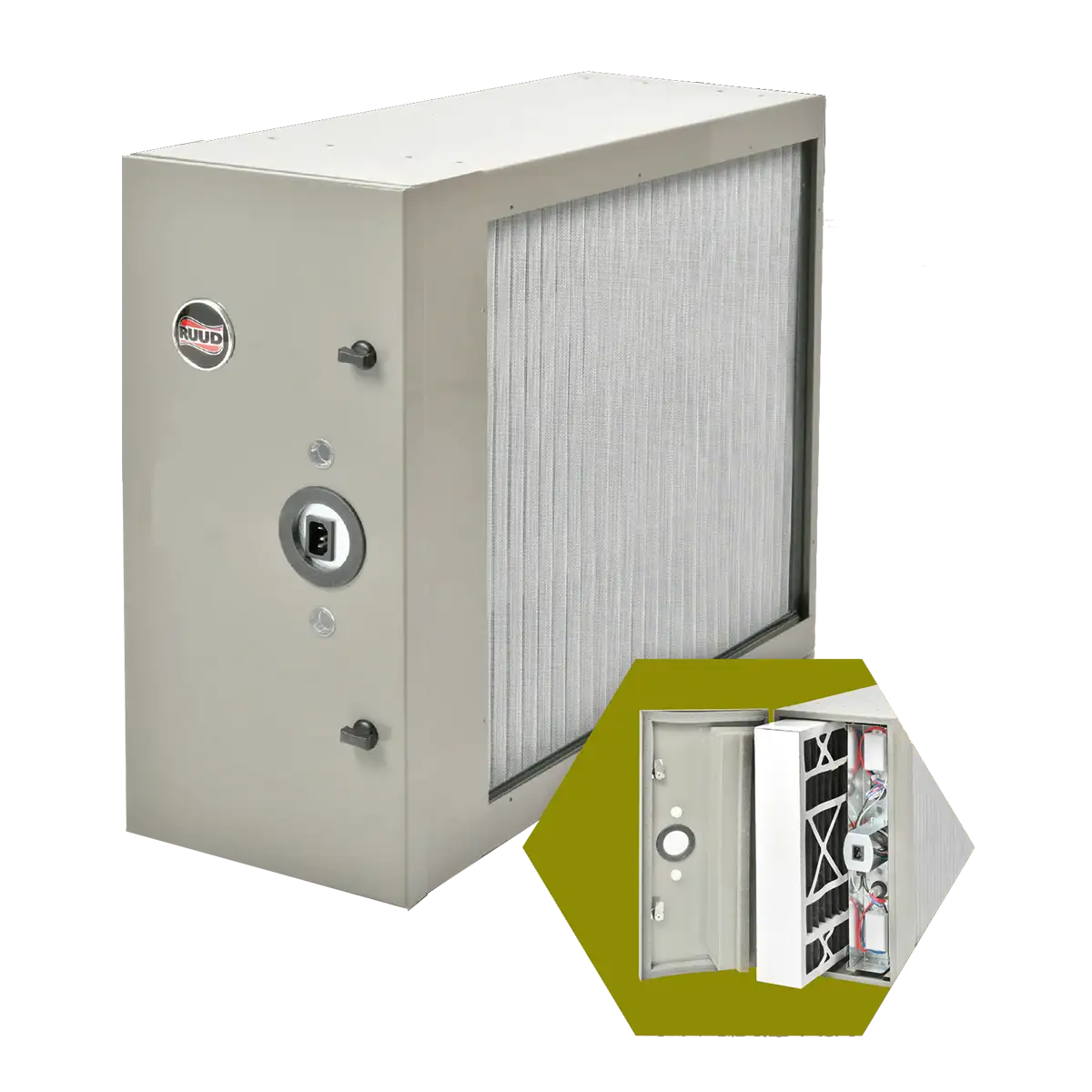

The RUUD UXAQ-AT22B3 is a 3-in-1 flow-through electronic air purification system that combines MERV 13 media filtration, UV-C germicidal lighting, and photocatalytic oxidation (PCO) in a single duct-mounted housing. Operating at 120 volts, the unit handles airflow up to 2000 CFM with a pressure drop of 0.43 inches W.C. at maximum rated flow. The 20 x 25 x 4 inch MERV 13 media filter achieves 92.30% particulate reduction at 0.3 microns. Licensed HVAC technicians install this unit into residential or light-commercial duct systems where whole-home air quality improvement is required.

The UXAQ-AT22B3 is designed for flow-through duct installation in forced-air HVAC systems serving homes and small commercial spaces. The UV-C lamp reduces airborne bacteria, viruses, and fungi, while the PCO process converts volatile organic compounds (VOCs) and odors into water vapor and carbon dioxide. The combination of high-efficiency media filtration and UV-C treatment also helps limit organic buildup on coils and other internal system components, supporting better energy efficiency and reduced maintenance intervals over time.

Key Features

• 3-in-1 design integrates MERV 13 media filtration, UV-C germicidal light, and photocatalytic oxidation (PCO) in one unit
• MERV 13 filter achieves 92.30% particulate reduction at 0.3 microns for capture of fine allergens and particulate matter
• UV-C lighting targets airborne bacteria, viruses, and fungi within the airstream
• PCO process neutralizes VOCs and odors, converting them to water vapor and carbon dioxide
• Rated for up to 2000 CFM maximum airflow with a pressure drop of 0.43 inches W.C. at peak flow
• Flow-through duct configuration fits standard residential and light-commercial air handler installations

Compatibility

Designed as a flow-through duct-mounted replacement or new-installation air purification unit for forced-air HVAC systems. Replacement UV lamp part number is 54-109479-01. Replacement MERV 13 media filter part number is 54-109478-01.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler and confirm the circuit is de-energized before cutting into ductwork or making any electrical connections. The unit requires a 120-volt supply and must be installed in accordance with local mechanical codes and the manufacturer wiring instructions. Ensure the airflow direction matches the flow-through orientation marked on the housing before sealing duct connections.

Technical Specifications

• Duct Configuration: Flow-Through
• Maximum Rated Airflow: 2000 CFM
• MERV Rating: 13
• Particulate Reduction at 0.3 Microns: 92.30%
• Media Dimensions (Nominal): 20 x 25 x 4 inches
• Housing Depth: 25 inches
• Housing Height: 21 inches
• Housing Width: 10 inches
• Voltage: 120 volts
• Pressure Drop at 600 CFM: 0.05 inches W.C.
• Pressure Drop at 800 CFM: 0.08 inches W.C.
• Pressure Drop at 1000 CFM: 0.12 inches W.C.
• Pressure Drop at 1200 CFM: 0.17 inches W.C.
• Pressure Drop at 1400 CFM: 0.22 inches W.C.
• Pressure Drop at 1600 CFM: 0.28 inches W.C.
• Pressure Drop at 1800 CFM: 0.35 inches W.C.
• Pressure Drop at 2000 CFM: 0.43 inches W.C.
• Replacement UV Lamp: 54-109479-01
• Replacement Media Filter: 54-109478-01

Standard Information

• Brand: RUUD
• Manufacturer Part Number: UXAQ-AT22B3
