Ruud UP2024BJVCA 2T 20 SEER Inverter HP

Product Description

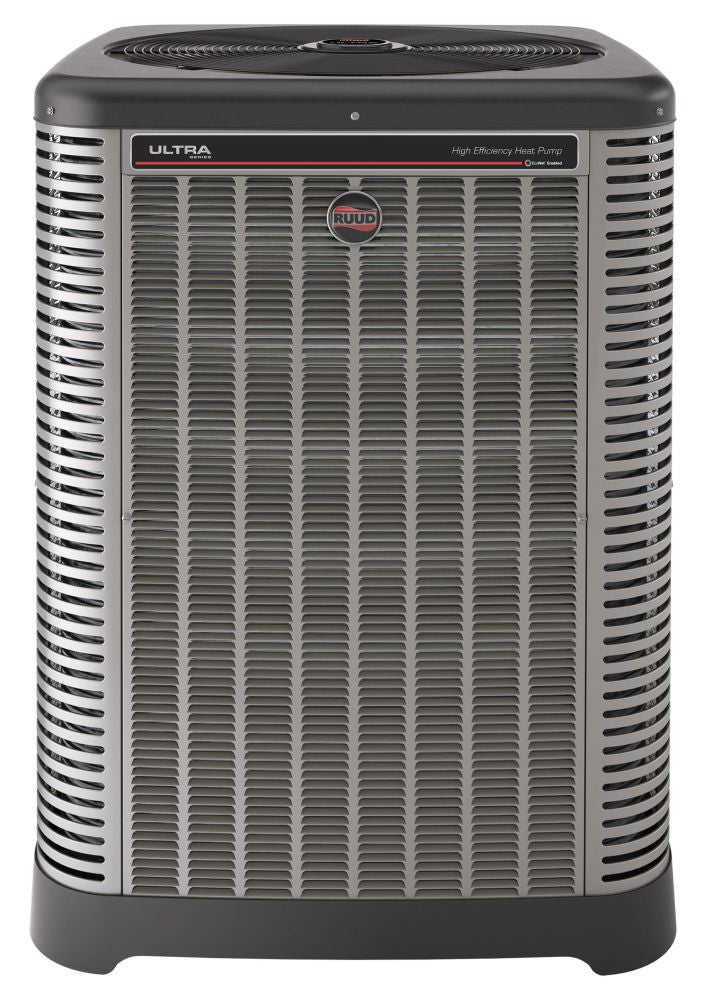

The Ruud UP2024BJVCA is a heat pump outdoor unit with a scroll variable speed compressor and inverter. Operating on 208/230 Volt AC at 60 Hertz with a single phase, it delivers 24000 BTU/Hour cooling capacity. Constructed with an ASTM B117 steel enclosure and galvanized, powder-painted finish, it's designed for ground/rooftop installation.

• Features a scroll variable speed compressor and inverter for efficient operation.
• Constructed with a durable ASTM B117 steel enclosure with a galvanized, powder-painted finish.
• Suitable for ground or rooftop installation.

Product Highlights

This Ruud heat pump offers efficient cooling and robust construction for versatile installation.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: UP2024BJVCA

Technical Specifications

• Manufacturer Part Number: UP2024BJVCA
• Type: Scroll Variable Speed Compressor, Inverter
• Voltage Rating: 208/230 Volt AC
• Current Rating: 15.4 Amp (Compressor), 1.9 Amp (Fan Motor)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Cooling Capacity: 24000 BTU/Hour
• Temperature Control Type: Thermostat
• Operating Temperature: 55 to 125 Deg F
• Installation: Ground/Rooftop
• Enclosure Material: ASTM B117 Steel
• Enclosure Finish: Galvanized, Powder Painted;Galvanized, Bonderized Powder Painted
• Approval: UL (Canada and US)
• Drive Type: Direct
• Minimum Circuit Rating: 25 Amp
• Energy Efficiency Ratio: 16 SEER/13 EER
• Refrigerant Type: R410A
• Airflow Rate: 4450 CFM
• Connection Type: Lug
• Minimum Circuit Current Rating: 22 Amp
• SEER: 20
• Flow Rate: 800 CFM
• Air Flow Type: Inverter
• Controls: Communicating
• Nominal Cooling (Tons): 24000
• Electrical Designation: 1-60-208/230
• Building Type: Residential
• Suction Line Size: 3/4
• Liquid Line Size: 3/8
• Minimum Circuit Breaker: 22
• Rated Load Amperes (RLA): 15.4
• Locked Rotor Amperes (LRA): 35
• Circuit Breaker Capacity: 30
• Refrigerant per circuit (oz): 210
