Ruud UP19AY60AJVCA Endeavor Line Ultra Series Heat Pump 5 Ton

Product Description

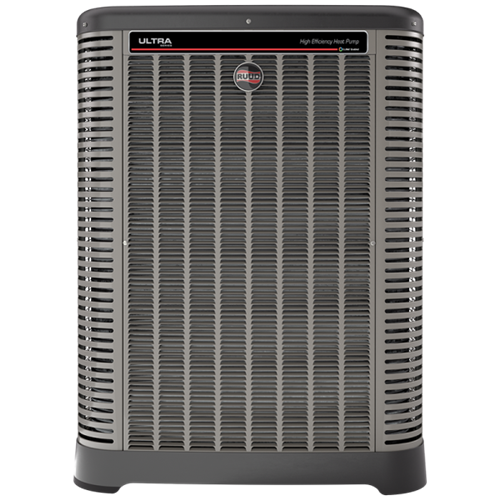

The Ruud UP19AY60AJVCA Endeavor Line Ultra Series Heat Pump is a five-ton heat pump designed for residential and commercial use. It features EcoNet Enabled technology, allowing for automatic system configuration and optimization. The heat pump operates at a voltage of 208/230 and utilizes R-454B refrigerant for efficient cooling and heating.

• Variable-speed scroll compressor for precise temperature management.
• Sound levels as low as 58 dB.
• Designed for sustainability with a low Global Warming Potential (GWP).

Product Highlights

This unit provides effective heating and cooling capacities ranging from 22.8 to 55.0 kBTU, making it suitable for various applications.

Product Information

Standard Information

• Type: Heat Pump
• Nominal Capacity: 60000 Btu/h

Technical Specifications

• Refrigerant Type: R-454B
• Compressor Type: Variable Speed Scroll
• Sound Level: 58 to 73 dB
• Shipping Weight: 309 lb
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 30 A
• Compressor - Rated Load Amps: 25 A
• Net Face Area - Outer Coil: 32.5 ft²
• Tube Diameter: 0.375 in
• Outdoor Fan Diameter: 26 in
• Motor HP: 1/2 hp
• SEER2: 5.0
• HSPF2: 5.0
• Depth: 36.13 in
• Width: 36.13 in
• Height: 51.17 in
