Product Description

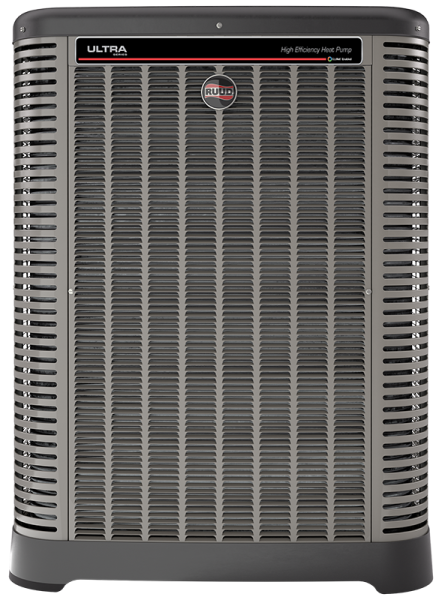

The Ruud UP19AY36AJVCA Endeavor Line Ultra Series Heat Pump is a 3-ton heat pump with EcoNet enabled inverter driven variable speed. It features cooling and heating efficiency of 20 SEER2/12 EER2/8.5 HSPF2 and uses R-454B refrigerant. The unit operates at 208 to 230 V and has a variable speed scroll compressor.
- EcoNet enabled for automatic system configuration and optimization.
- Features PlusOne Diagnostics with Bluetooth connectivity for easy monitoring and troubleshooting.
- Variable speed scroll compressor and inverter drive for precise temperature and humidity control.
Product Highlights
This Ruud heat pump offers efficient and reliable performance with advanced features for easy maintenance and optimal comfort.
Product Information
Standard Information
-
Brand: RUUD
-
Manufacturer Part Number: UP19AY36AJVCA
Technical Specifications
-
Type: Heat Pump
-
Nominal Capacity: 36000 Btu/h
-
Refrigerant Type: R-454B
-
Refrigerant Furnished oz.: 200
-
Compressor Type: Variable Speed Scroll
-
Sound Level: 60 to 70 dB
-
Voltage: 208 to 230 V
-
Number of Phases: 1
-
Frequency: 60 Hz
-
Minimum Circuit Ampacity: 20 A
-
Compressor - Rated Load Amps: 16 A
-
Compressor - Locked Rotor Amps: 50 A
-
Net Face Area - Outer Coil: 32.5 ft²
-
Tube Diameter: 0.375 in
-
Number of Rows: 1
-
Fins per Inch: 20
-
Outdoor Fan Diameter: 26 in
-
Number of Blades: 3
-
Motor HP: 1/2 hp
-
Total Capacity: 34200 Btu/h
-
Net Sensible Capacity: 26200 Btu/h
-
Net Latent Capacity: 8000 Btu/h
-
Heating Capacity - 47°F: 34200 Btu/h
-
Heating Capacity - 17°F: 30500 Btu/h
-
COP - 47°F: 4.00
-
COP - 17°F: 2.00
-
Depth: 36.13 in
-
Width: 36.13 in
-
Height: 51.17 in
-
Liquid Line O.D.: 3/8 in
-
Suction Line O.D.: 3/4 in
-
BTU Rating: 36000 BTU/hr
-
Application: Heat Pump
-
Tonnage: 3
-
Maximum overcurrent protection (amps): 35
-
Communication: EcoNet Enabled
-
Capacity BTU/HR: 36,000
-
Standard Rating (DBA): 60-70
-
Liquid Line O.D. – in.: 3/8
-
Suction Line O.D. – in.: 3/4
-
Outdoor Fan Number of Blades: 3
-
Motor hp: 1/2
-
Motor RPM: Variable speed
-
Length (inches): 36.13
-
Width (inches): 36.13
-
Height (inches): 51.17
-
Individual Item Weight – lbs.: 298
-
Brand: Ruud / Rheem
-
Ton: 3.0 Ton
-
Cooling Btu: 34,200
-
Cooling Stage(s): Inverter
-
Compressor Stage: Inverter
-
Electrical Phase(s): 1-Phase
-
Decibel Level (dB): 70
-
Suction Valve Size (Inches): 3/4
-
Liquid Valve Size (Inches): 3/8
-
Heating Btu: 34,200
-
Blower: Variable Speed
-
Heating Stage(s): Inverter
-
Phase: 1
-
Tons: 3
-
Volts: 208/230
