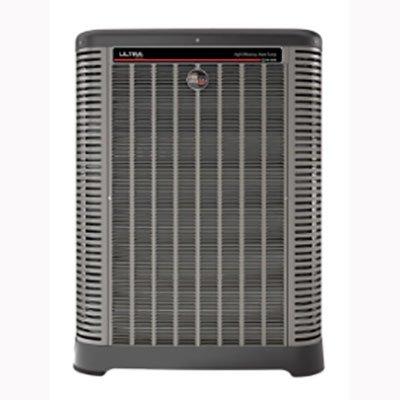

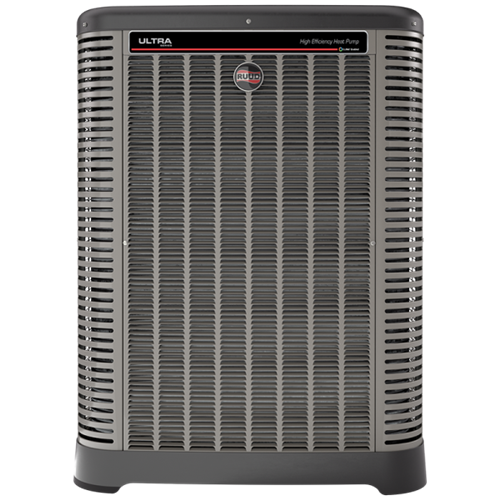

Ruud UP19AY24AJVCA Endeavor Line Ultra Series Heat Pump 2 Ton

Product Description

The Ruud UP19AY24AJVCA Endeavor Line Ultra Series heat pump is a two-ton HVAC unit designed to deliver efficient heating and cooling. Equipped with EcoNet technology, this unit enhances system performance through automatic configuration. The variable speed scroll compressor ensures precise temperature control by modulating capacity from forty to one hundred percent.

• EcoNet Enabled: Automates system setup and optimization.
• Variable Speed Scroll Compressor: Operates smoothly from 40% to 100% capacity.
• Bluetooth Connectivity: Simplifies setup and troubleshooting.

Product Highlights

This heat pump is optimized for low environmental impact with the use of R-454B refrigerant. Its design minimizes energy consumption while maximizing comfort settings.

Product Information

Standard Information

• Type: Heat Pump
• UPC: 662021725586

Technical Specifications

• Nominal Capacity: 24000 Btu/h
• Compressor Type: Variable Speed Scroll
• Sound Level: 59 to 69 dB
• Shipping Weight: 282 lb
• Voltage: 208 to 230 V
• Frequency: 60 Hz
• Depth: 36.13 in
• Width: 36.13 in
• Height: 45.17 in
