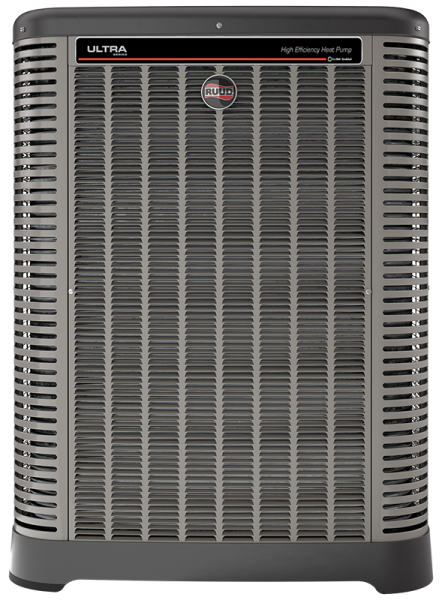

Ruud UP18AZ24AJVCA Endeavor Line Ultra Series iM Heat Pump, 18 SEER2, 2 Ton, 24k BTUH

Product Description

The RUUD UP18AZ24AJVCA is an Endeavor Line Ultra Series iM Heat Pump with an 18 SEER2 rating. This EcoNet enabled unit uses R-410A refrigerant and features an inverter driven variable speed motor. Operates at 208/230-1-60V with a 2 Ton capacity and 24k BTUH. Designed for efficient and reliable heating and cooling.

• EcoNet Enabled for system configuration and optimization.
• Features a variable speed scroll compressor and inverter drive.
• Equipped with Brushless DC Condenser Motors (BLDC) for enhanced reliability.

Product Highlights

This heat pump offers precise temperature control, advanced humidity control, and greater efficiency. The swept wing fan technology ensures quieter operation and improved unit acoustics.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: UP18AZ24AJVCA

Technical Specifications

• Brand: RUUD
• MPN: UP18AZ24AJVCA
• Model: UP18AZ24AJVCA
• SEER2 Rating: 18
• Refrigerant Type: R410A
• Voltage Data (Volts-Phase-Hz): 208/230-1-60
• Capacity: 2 Ton
• BTUH: 24,000
• EcoNet Enabled: Yes
• Motor Type: Inverter Driven Variable Speed
• Compressor Type: Variable Speed Scroll
• Maximum overcurrent protection (amps): 30
• STANDARD RATING (DBA): 59-69
• Liquid Line O.D. – in.: 3/8
• Suction Line O.D. – in.: 3/4
• Outdoor Fan Diameter-in.: 26
• Outdoor Fan Number of Blades: 3
• Motor hp: 1/2
• Motor RPM: Variable speed
• Length (inches): 36.13
• Width (inches): 36.13
• Height (inches): 45.17
• Category: Heating
• Series: ENDEAVOR™ LINE ULTRA® SERIES
