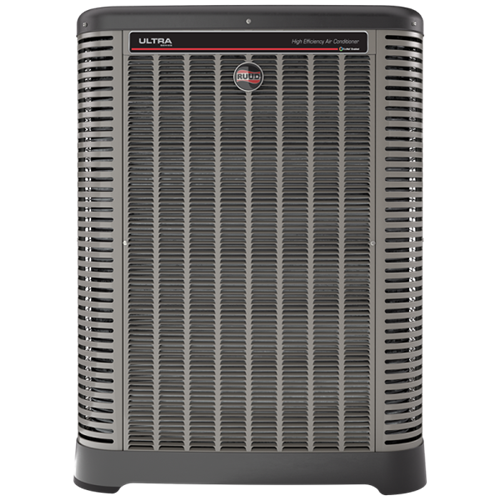

Ruud UA19AY48AJVCA Endeavor Line Ultra Series 4 ton Air Conditioner - 208/230/1/60

Product Description

The Ruud UA19AY48AJVCA Endeavor Line Ultra Series air conditioner is a 4 ton cooling unit. It features EcoNet Enabled Inverter Driven Variable Speed technology for efficient operation. This model has a cooling efficiency of 20 SEER2 and 13 EER2, utilizing R-454B refrigerant. Operating on 208 to 230 volts and 60 Hz, it produces minimal sound, as low as 57 dB.

• EcoNet Enabled for automatic configuration and optimization.
• Includes PlusOne Diagnostics & Bluetooth Connectivity for service ease.
• Designed for sustainability using a low GWP refrigerant.

Product Highlights

This air conditioner provides high efficiency and advanced features, making it suitable for various cooling needs.

Product Information

Standard Information

• Type: Air Conditioner
• Nominal Capacity: 48000 Btu/h

Technical Specifications

• Refrigerant Type: R-454B
• Compressor Type: Variable Speed Scroll
• Sound Level: 54 to 72 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 40 A
• Minimum Circuit Ampacity: 24 A
• Compressor - Rated Load Amps: 19 A
• Compressor - Locked Rotor Amps: 50 A
• Net Face Area - Outer Coil: 32.5 ft²
• Tube Diameter: 0.375 in
• Number of Rows: 1
• Fins per Inch: 20
• Outdoor Fan Diameter: 26 in
• Number of Blades: 3
• Motor HP: 1/2 hp
• Total Capacity: 45500 Btu/h
• Net Sensible Capacity: 34900 Btu/h
• Net Latent Capacity: 10600 Btu/h
• SEER2: 19.0
• EER2: 12.0
• Indoor CFM: 1590 ft³/min
• Depth: 36.13 in
• Width: 36.13 in
• Height: 51.17 in
• Shipping Depth: 39.37 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Air Flow Type: Fully Variable
• Controls: Communicating
• Tonnage: 4
• Application: A/C
