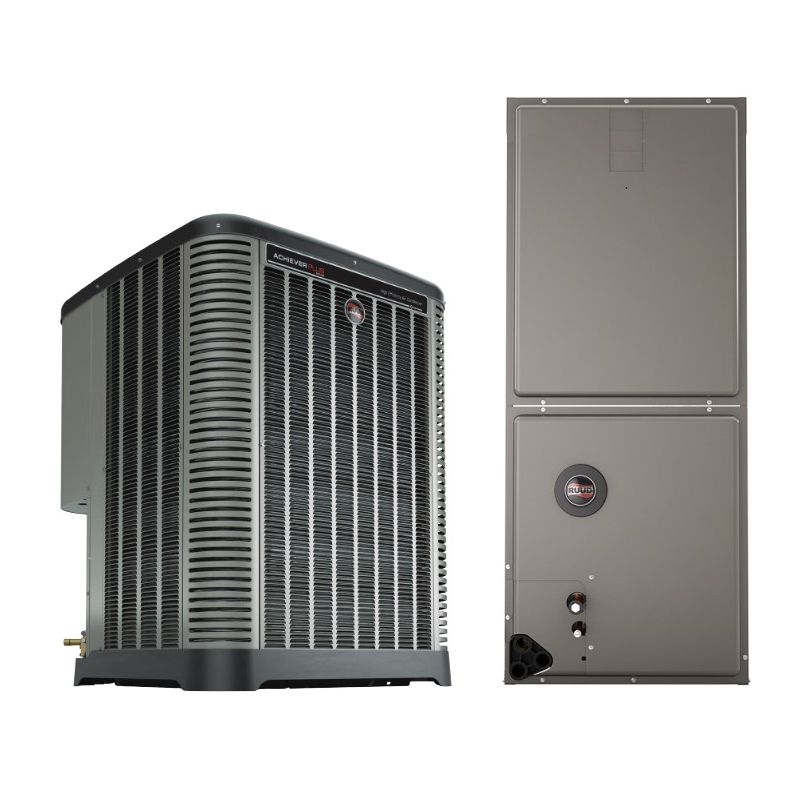

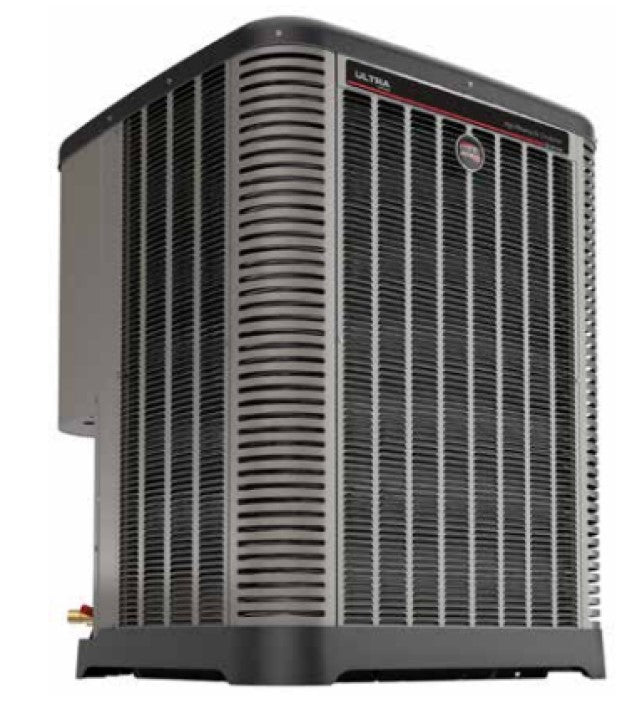

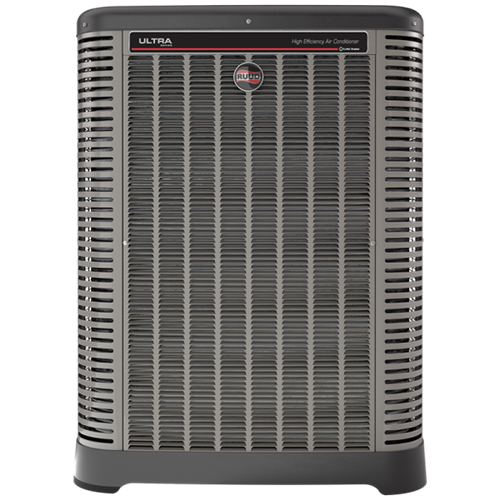

RUUD UA19AY36AJVCA Endeavor Line Ultra Series 3 ton Air Conditioner - 208/230/1/60

Product Description

The RUUD UA19AY36AJVCA Endeavor Line Ultra Series air conditioner offers efficient cooling with a rated efficiency of 20 SEER2 and a cooling capacity of thirty-six thousand BTU per hour. This unit uses R-454B refrigerant and is designed for residential and light commercial use. It has a low sound level, operating as quietly as fifty-seven decibels. It is EcoNet enabled for optimal performance and energy management.

• Energy-efficient with low GWP refrigerant.
• Bluetooth connectivity for easy diagnostics.
• Quiet operation, making it suitable for residential areas.

Product Highlights

The RUUD UA19AY36AJVCA is designed for energy efficiency and sustainable operation.

Product Information

Standard Information

• Type: Air Conditioner
• Nominal Capacity: 36000 BTU/hr

Technical Specifications

• Refrigerant Type: R-454B
• Compressor Type: Variable Speed Scroll
• Sound Level: 57 to 72 dB
• Voltage: 208 to 230 V
• Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 35 A
• Compressor Load Amps: 16 A
• Net Sensible Capacity: 26200 BTU/hr
• SEER2: 19.0
• Indoor CFM: 1225 ft³/min
• Dimensions: 36.13 in depth, 36.13 in width, 51.17 in height
• Parts Warranty: 10 years
• Compressor Warranty: 10 years
