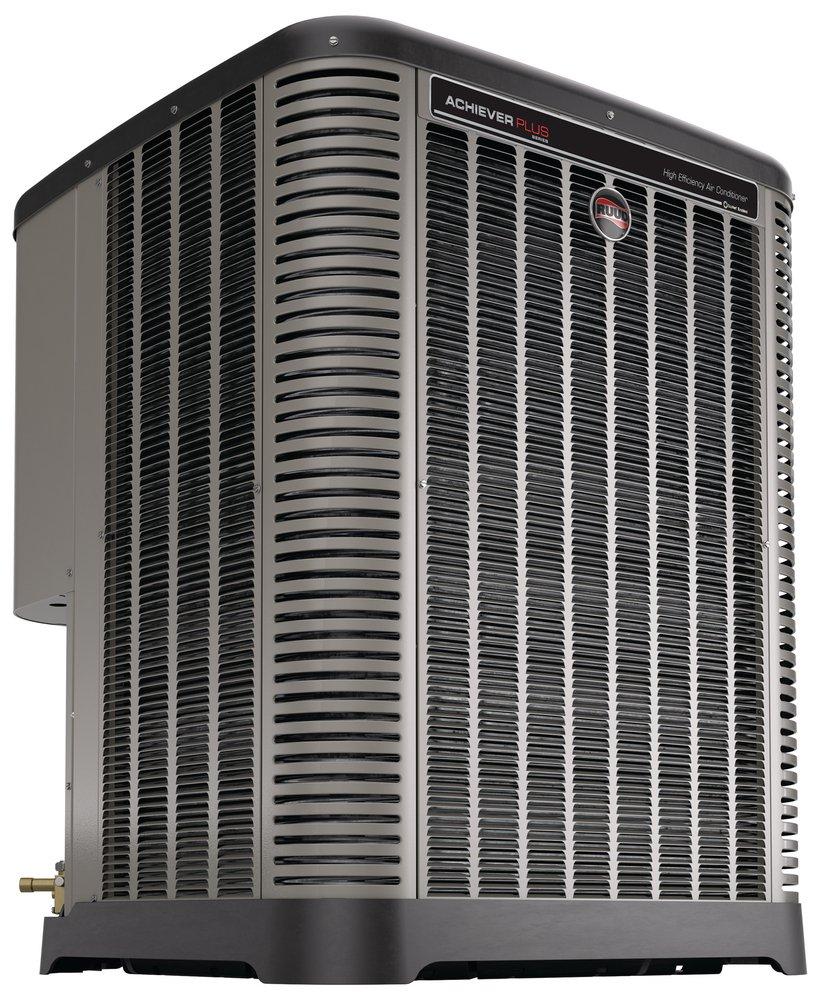

Ruud UA16AZ60AJ3CA Endeavor Line Achiever Plus Series iM Air Conditioner 5 Ton

Product Description

The RUUD UA16AZ60AJ3CA Endeavor Line Achiever Plus Series iM Air Conditioner is EcoNet enabled. This 5 ton air conditioner features Plus One diagnostics and Bluetooth connectivity. It also has a Plus One variable speed twin rotary compressor and inverter drive, and offers 3-speed operation.

• Plus One Diagnostics
• Bluetooth Connectivity
• Econet enabled

Product Highlights

The RUUD UA16AZ60AJ3CA air conditioner provides precise temperature control, advanced humidity control, and greater efficiency.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: UA16AZ60AJ3CA

Technical Specifications

• Brand: RUUD
• MPN: UA16AZ60AJ3CA
• SEER2: 16
• BTUH: 60k
• Tonnage: 5 Ton
• Voltage: 208/230-1-60V
• Nominal Tonnage: 5
• Line Voltage Data (Volts-Phase-Hz): 208/230-1-60
• Refrigerant Type: R410A
• Compressor Type: Twin Rotary
• Maximum overcurrent protection (amps): 50
• Communication: EcoNet Enabled
• Capacity BTU/HR: 60,000
• Standard Rating (DBA): 76.7-65.7
• Liquid Line O.D. – in.: 3/8
• Suction Line O.D. – in.: 7/8
• Outdoor Fan Diameter-in.: 26
• Outdoor Fan Number of Blades: 3
• Motor hp: 1/2
• Motor RPM: 1075
• Length (inches): 35.75
• Width (inches): 35.75
• Height (inches): 31
• Model Number (s): UA16AZ60AJ3CA - RH3VZ6024STACNJ
• Type: Air Conditioning
• SEER: 15.5
• Cooling Btu: 60,000
• Cooling Stage(s): 1
• Compressor Stage: Three
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 77
• Suction Valve Size (Inches): 7/8
• Liquid Valve Size (Inches): 3/8
• Outdoor Unit Height (Inches): 31
• Outdoor Unit Width (Inches): 33 3/4
• Outdoor Unit Depth (Inches): 33 3/4
• Blower: Variable Speed
• A2L Compatible: No
• AMP: 25
• CEC Compliant: For Sale in CA
• CFM: 4508
• Collection: Endeavor™ Line Classic Plus® Series
• Communicating: Communicating
• Compressor Stages: Multi
• Decibel Rating (dB): 76.2 dB
• Depth: 33-3/4
• EER2: 10.5
• EER2 Range: 0 - 10.5
• Horsepower: 1/3 hp
• Liquid Line (OD): 3/8
• Max CFM: 4508
• Max Fuse Size: 40
• Phase: Single Phase
• Power Source: Electric
• RPM: 1075
• Sound Blanket: No
• Suction Line (OD): 7/8
• UL Listed: Yes
• Volts: 208/230V
• Watts: 379
