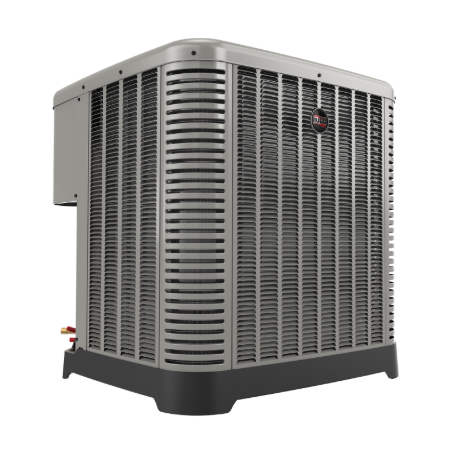

Ruud UA16AY24AJ2NA R454B Condenser 2 Ton

Product Description

The Ruud UA16AY24AJ2NA is a two-ton condenser designed for SEER2 16+ applications using R454B refrigerant. This model features a two-stage scroll compressor and runs on 208/230-1-60 voltage, providing a capacity of 24,000 BTU/hr.

• 7mm condenser copper coil enhances reliability with less refrigerant.
• Quieter operation thanks to swept wing fan technology.
• PlusOne Triple Service Access simplifies maintenance and repairs.

Product Highlights

This outdoor unit is efficient and easy to maintain, making it ideal for residential use.

Product Information

Standard Information

• Application: Condenser SEER2 16+
• Tonnage: 2

Technical Specifications

• Voltage Data (Volts-Phase-Hz): 208/230-1-60
• Refrigerant Type: R454B
• Compressor Type: 2-Stage Scroll
• Maximum Overcurrent Protection (amps): 25
• Communication: Non-Communicating
• Capacity BTU/HR: 24,000
• Standard Rating (dBA): 74.1
• Liquid Line O.D.: 3/8
• Suction Line O.D.: 3/4
• Outdoor Fan Diameter (inches): 24
• Outdoor Fan Number of Blades: 2
• Motor HP: 1/6
• Motor RPM: 825
• Length (inches): 33.75
• Width (inches): 33.75
• Height (inches): 25
• Shipping Weight (lbs.): 190
• Type: Outdoor Unit
• Phase: 1
• SEER2 (Up to): 16
