Ruud U97VA100M521KSA Gas Furnace 97% Afue 100000 Btu/h

Product Description

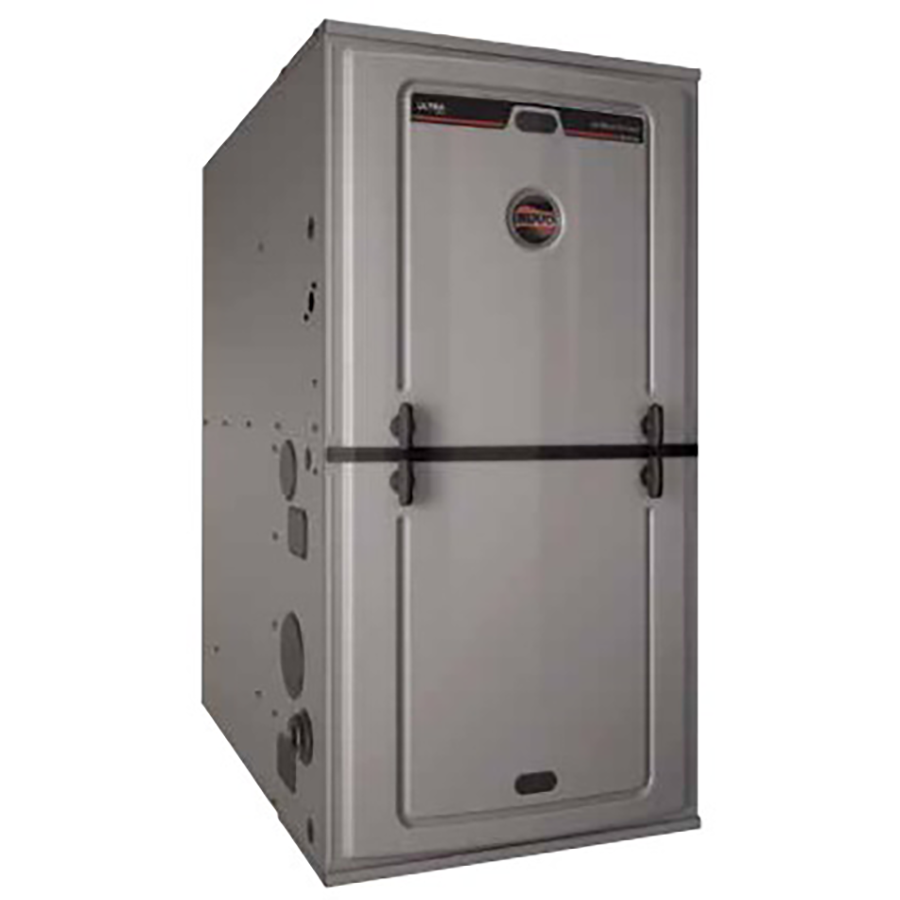

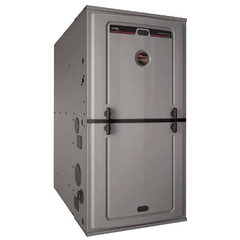

The RUUD U97VA100M521KSA is a high-efficiency, modulating natural gas furnace configured for downflow installation. It delivers up to 100,000 BTU/h of heating capacity at 97% AFUE, meaning nearly all fuel burned converts to usable heat. The modulating burner adjusts output across a range of firing rates to match building load, reducing short-cycling and improving temperature consistency. This unit is designed for installation in confined mechanical closets, alcoves, or utility spaces where airflow must be directed downward through the supply plenum. Licensed HVAC technicians handle installation and startup.

The U97VA100M521KSA is suited for residential and light-commercial heating applications where high efficiency and precise capacity control are required. The downflow configuration makes it appropriate for installations above a crawl space or slab where supply ducts run below the unit. Its 97% AFUE rating positions it well above federal minimum efficiency standards, making it a strong candidate for energy-efficiency rebate programs in applicable jurisdictions. Verify local utility and jurisdiction requirements before installation.

Key Features

• 97% AFUE efficiency rating for near-complete fuel utilization
• 100,000 BTU/h heating capacity suitable for larger residential or light-commercial spaces
• Modulating burner adjusts firing rate to match actual heating load, reducing temperature swings
• Downflow air discharge configuration for below-unit duct systems
• Natural gas fuel type with compatibility for standard residential gas supply

Compatibility

Designed as an OEM-style downflow modulating gas furnace replacement or new installation unit for residential and light-commercial natural gas heating systems requiring 97% AFUE performance and 100,000 BTU/h capacity.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with the manufacturer instructions, NFPA 54, local gas codes, and applicable mechanical codes. Shut off gas supply and disconnect electrical power before beginning any service or installation work. Verify flue venting is sized and routed correctly for a condensing appliance, as a 97% AFUE unit produces acidic condensate that requires proper drainage. Do not operate the unit before verifying gas pressure, venting integrity, and condensate drain continuity.

Technical Specifications

• Fuel Type: Natural Gas
• Heating Capacity: 100,000 BTU/h
• Efficiency: 97% AFUE
• Configuration: Downflow
• Burner Type: Modulating

Standard Information

• Brand: RUUD
• Manufacturer Part Number: U97VA100M521KSA
