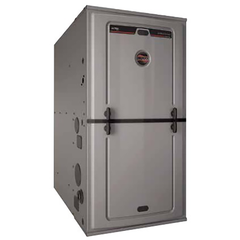

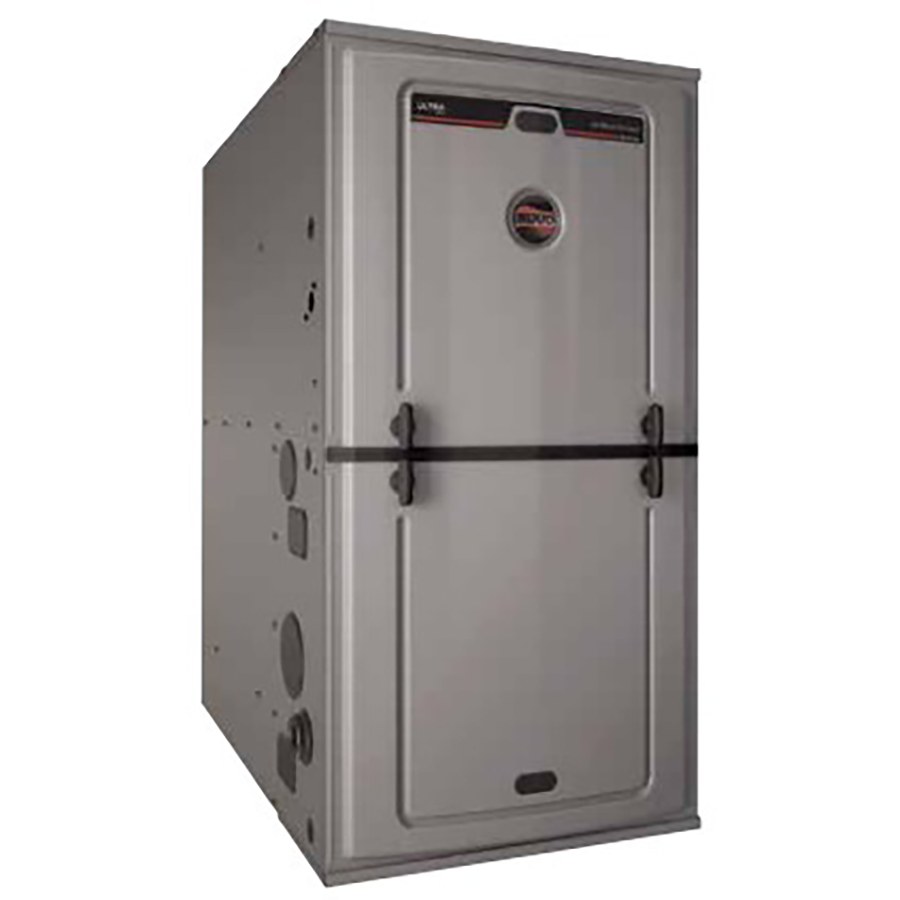

Ruud U97MV0855A21DHSGAP Gas Furnace 97% Afue 85000 Btu

Product Description

The RUUD U97MV0855A21DHSGAP is a modulating natural gas furnace rated at 97% AFUE and 85,000 BTU/h input capacity. It uses a Direct Spark Ignition (DSI) system and an ECM variable-speed blower motor to deliver consistent heat output while minimizing energy consumption. The modulating heating stage adjusts output from low fire up to 100% capacity based on real-time load demand. A fully insulated blower cabinet reduces operating noise. The integrated 7-Segment LED display provides onboard diagnostics, reducing time spent on service calls. This unit is ENERGY STAR certified and EcoNet enabled for remote monitoring via compatible smart thermostat and app. Licensed HVAC technicians install and commission this furnace.

The U97MV0855A21DHSGAP is designed for residential applications where high-efficiency heating and precise comfort control are priorities. At 21 inches wide, it fits standard multi-position installations in downflow and horizontal configurations, making it suitable for closet, alcove, attic, and crawlspace installs. The multi-position design supports flexible duct layout options. The patented block drain sensor monitors condensate and automatically shuts down the furnace if a drain blockage is detected, then alerts the technician via a diagnostic fault code. Nominal cooling capacity pairing is up to 5 tons. Natural gas is the rated fuel type.

Key Features

• 97% AFUE modulating operation with automatic adjustment from low fire to 100% capacity
• ECM variable-speed blower motor for humidity control, quiet operation, and year-round energy savings
• Direct Spark Ignition (DSI) system for reliable, consistent ignition
• 7-Segment LED onboard diagnostics display for fast fault identification during service calls
• Patented condensate block drain sensor with automatic furnace shutoff and diagnostic alert
• ENERGY STAR certified across all model sizes in the U97MV line
• EcoNet enabled for integration with compatible smart thermostat and remote monitoring

Compatibility

Designed as an OEM multi-position residential gas furnace. Compatible with EcoNet smart thermostat and EcoNet monitoring system for remote alerts and control. Nominal cooling coil pairing up to 5 tons. Consult the installation manual for approved coil and thermostat model pairings.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Shut off all gas and electrical supply to the system before beginning any connections or service work. This is a high-efficiency condensing furnace and requires a properly sized PVC condensate drain line and sealed combustion or direct-vent flue piping. Do not use B-vent or single-pipe atmospheric venting configurations with this unit.

Technical Specifications

• Fuel Type: Natural Gas
• BTU/h Input Capacity: 85,000 BTU/h
• AFUE Efficiency: 97%
• Heating Stage: Modulating
• Motor Type: ECM Variable Speed
• Nominal Cooling Tonnage: 5 tons
• Width: 21 inches
• Configuration: Multi-Position (Downflow / Horizontal)
• Certification: ENERGY STAR

Standard Information

• Brand: RUUD
• Manufacturer Part Number: U97MV0855A21DHSGAP
