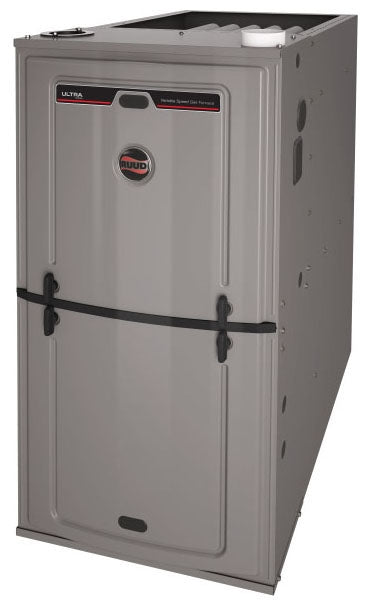

Ruud U96VA0702521MSA Gas Furnace 70000 BTU 5T

Product Description

The RUUD U96VA0702521MSA is a gas furnace with a 70000 BTU per hour capacity and an airflow capacity of 5 tons. This upflow, multi-position, 2-stage, 4-way, variable speed furnace features a direct spark ignition, ECM motor, and a primary and secondary heat exchanger. It is designed for residential applications and is CSA (Canada and US) and AHRI approved.

• Features a PlusOne Diagnostics 7-Segment LED for easy diagnostics.
• Equipped with a PlusOne Water Management System with a patented blocked drain sensor.
• Aluminized steel primary and stainless steel secondary heat exchanger construction provides corrosion resistance.

Product Highlights

The RUUD U96VA0702521MSA gas furnace offers efficient heating with its two-stage operation and variable speed blower motor, ensuring optimal comfort and energy savings.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: U96VA0702521MSA

Technical Specifications

• Manufacturer Part Number: U96VA0702521MSA
• Type: Upflow, Multi-Position, 2-Stage, 4-Way, Variable Speed
• Btu Per Hour: 70000
• Capacity: 1332 CFM (Heating), 1750 CFM (Cooling)
• Control Type: 115 Volt AC 60 Hertz 1-Phase
• Size: 17-1/2 Inch Width x 29-5/8 Inch Depth x 34 Inch Height
• Gas Inlet Size: 1/2 Inch Threaded
• Vent Size: 2 or 3 Inch
• Inclusion Features: Remote Sensor, Direct Spark Ignition, Gas Valve and Manifold, Draft Inducer, Blocked Drain Sensor, ECM Motor, Control Board, Pressure Switch, Modulating Burner, Primary and Secondary Heat Exchanger
• Fuel Type: Natural/LP Gas
• AFUE Rating: 96 Percent
• Minimum Circuit Rating: 12 Amp
• Motor Power Rating: 3/4 HP
• Vent Material: PVC
• Motor Type: ECM
• Rising Temperature Rating: 20 to 50 Deg F
• Application: Residential
• Approval: CSA (Canada and US)
• Applicable Standard: ISO 9001, AHRI
• Airflow Capacity: 5 Ton
