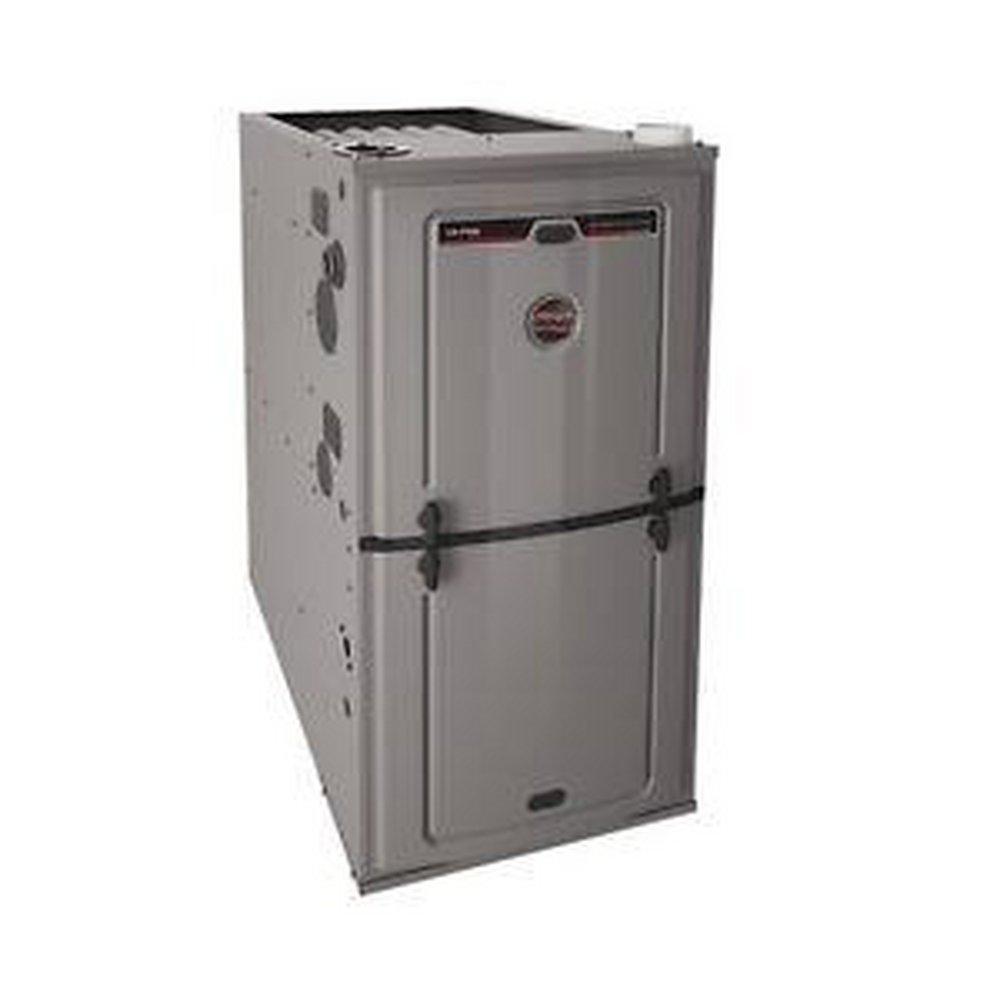

Ruud U96VA0402317MSA Gas Furnace 42000 BTU

Product Description

The RUUD U96VA0402317MSA gas furnace is a 2-stage, multi-position, variable speed unit with a 42000 BTU per hour capacity. It features a remote sensor, direct spark ignition, and a modulating burner. The furnace is designed for residential applications and is CSA approved for both Canada and the US.

• Equipped with a remote sensor and direct spark ignition.
• Features a gas valve and manifold, draft inducer, and blocked drain sensor.
• Includes an ECM motor, control board, pressure switch, and modulating burner.

Product Highlights

This RUUD gas furnace offers efficient heating with its ECM motor, modulating burner, and multiple safety features for residential use.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: U96VA0402317MSA

Technical Specifications

• Type: Upflow, Multi-Position, 2-Stage, 4-Way, Variable Speed
• BTU per Hour: 42000
• Capacity: 1250 CFM (Heating), 1050 CFM (Cooling)
• Control Type: 115 Volt AC 60 Hertz 1-Phase
• Gas Inlet Size: 1/2 Inch Threaded
• Vent Size: 2 or 3 Inch
• Inclusion Features: Remote Sensor, Direct Spark Ignition, Gas Valve and Manifold, Draft Inducer, Blocked Drain Sensor, ECM Motor, Control Board, Pressure Switch, Modulating Burner, Primary and Secondary Heat Exchanger
• Fuel Type: Natural/LP Gas
• AFUE Rating: 96 Percent
• Minimum Circuit Rating: 8 Amp
• Motor Power Rating: 1/2 HP
• Vent Material: PVC
• Motor Type: ECM
• Rising Temperature Rating: 15 to 45 Deg F
• Application: Residential
• Approval: CSA (Canada and US)
• Applicable Standard: ISO 9001, AHRI
• A2L Compatible: Contingent
• AMP: 8, 15
• BTU Heat Rating: 41000 Btu/h
• Blower Type: 1/2 HP Variable Speed
• CEC Compliant: For Sale in CA
• CFM: 1250 ft3/min
• Collection: Ultra™ Series
• Communicating: Communicating
• Condensing: Yes
• Configuration: Multi-Position
• Depth: 29-5/8 in
• Energy Star Compliant: Yes
• Fan Speeds: Variable
• Gas Valve Stages: Two-Stage
• Heat Exchanger Type: Aluminized Steel
• Height: 34 in
• Horsepower: 1/2 hp
• Ignition System: Direct Spark Ignition
• MBH: 42
• Phase: Single Phase
• Power Source: Gas
• Temperature Range: 20 to 50 Deg F (11 to 28 Deg C)
• Tonnage: 3.5 Ton
• Volts: 115V
• Width: 17-1/2 in
• BTU Input: 42000
• BTU Output: 41000
• Annual Fuel Usage Efficiency (AFUE): 96.0
• Nominal Cooling Capacity (Tons): 3
• Vent Type: Direct Vent
• Supply Opening Depth: 19.84375
• Supply Opening Width: 16.265625
• Return Opening Depth: 19.78125
• Return Opening Width: 16.203125
• Building Type: Residential
• Flue Size: 2
