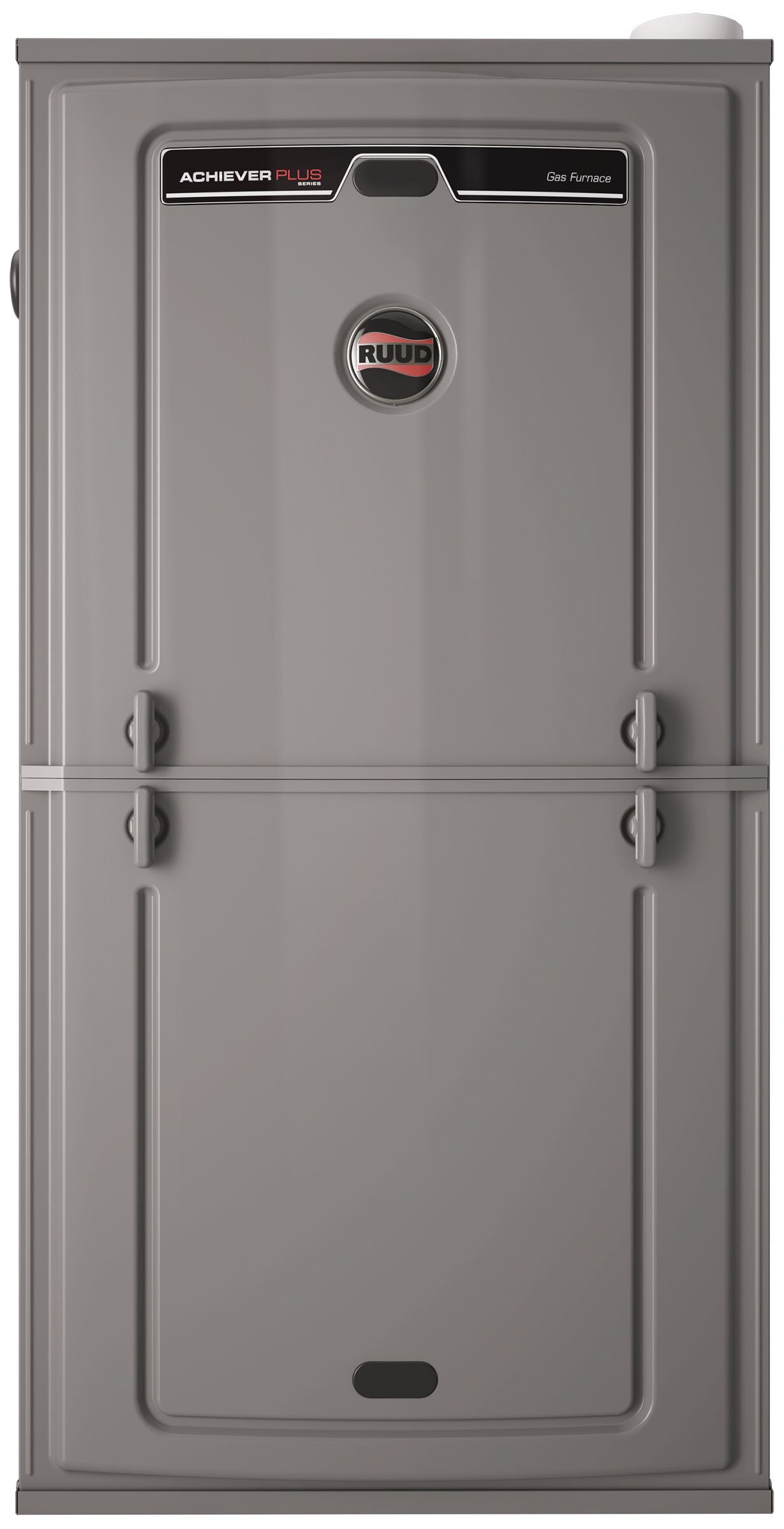

Ruud U802VA075317MSA Gas Furnace 75000 BTU

Product Description

The Ruud U802VA075317MSA gas furnace operates at 75000 BTU and has an 80% AFUE rating. This model uses variable speed blower motor technology, which enhances humidity control while providing energy savings. The furnace features two-stage operation for better efficiency. It is EcoNet enabled, allowing for advanced diagnostics through its PlusOne diagnostics system with a seven-segment LED display. The unit has a low-profile cabinet perfect for installations where space is limited.

• CSA certified for residential applications
• Two-stage operation for improved energy efficiency
• Variable speed blower for effective humidity control

Product Highlights

The Ruud U802VA075317MSA gas furnace is designed to provide high heating performance with efficiency in mind. It is equipped with advanced features that cater to both comfort and cost savings.

Product Information

Standard Information

• Brand: Ruud
• Model Number: U802VA075317MSA

Technical Specifications

• AFUE: 80.00%
• BTU: 75000
• Blower Type: ECM
• CFM: 1254 ft³/min
• Configuration: Horizontal, Upflow
• Dimensions: 34 inches (Height) x 17.5 inches (Width) x 28.0625 inches (Depth)
• Fan Speeds: Variable
• Fuel Type: Natural Gas, Propane
• Height: 34 inches
• Ignition System: Direct Spark Ignition
• Vent Type: B-Vent
• Volts: 115V
• Weight: 125 pounds
• Heat Exchanger Warranty: 20 years
• Maximum CFM: 1650
