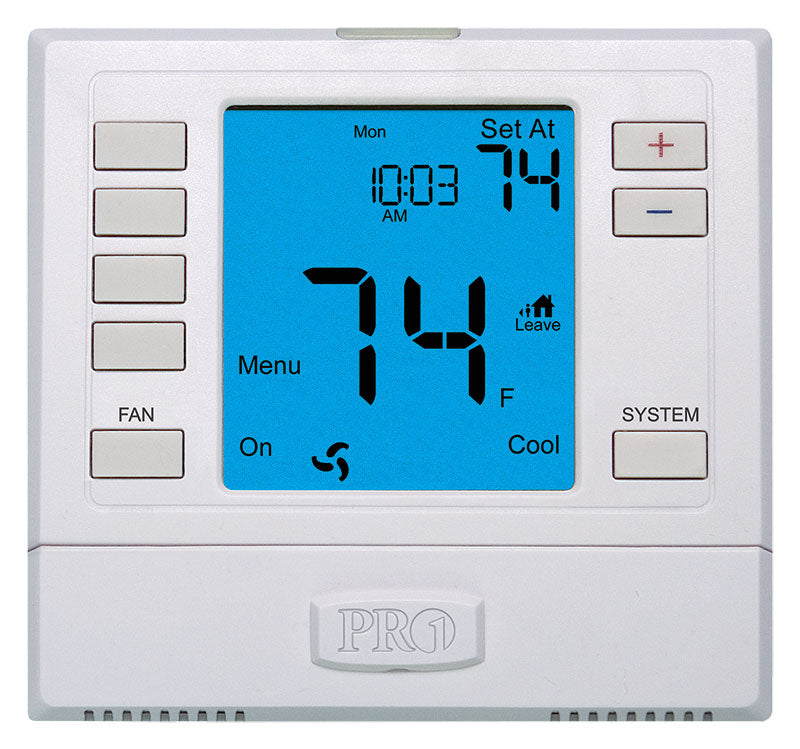

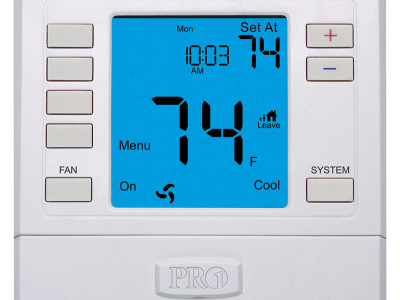

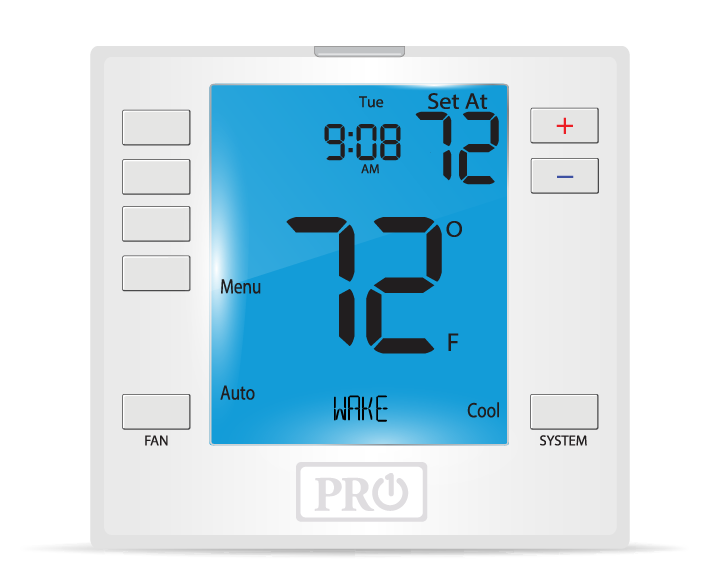

RUUD T755S Programmable Keypad Thermostat

Product Description

The RUUD T755S is a keypad thermostat suitable for both residential and commercial applications. This device offers flexible programmability, supporting both 5+1+1 and 7-day scheduling options. It is compatible with a variety of heating and cooling systems, including gas, electric, and oil systems.

• Programmable thermostat with 5+1+1 or 7-day options
• User-friendly keypad interface
• Works with 3 Heat/2 Cool or 2 Heat/2 Cool systems

Product Highlights

The RUUD T755S is designed for ease of use. It features adjustable temperature swings and a compressor short cycle delay. The thermostat includes a filter change indicator and allows for room temperature calibration adjustments.

Product Information

Standard Information

• Brand: RUUD
• MPN: T755S

Technical Specifications

• Type: Programmable
• Programmability: 5+1+1, 7 Day
• Stages: 3 Heat, 2 Cool
• Heat Pump Compatible: Yes
• User Interface: Keypad
• Power: Battery or 24V Power

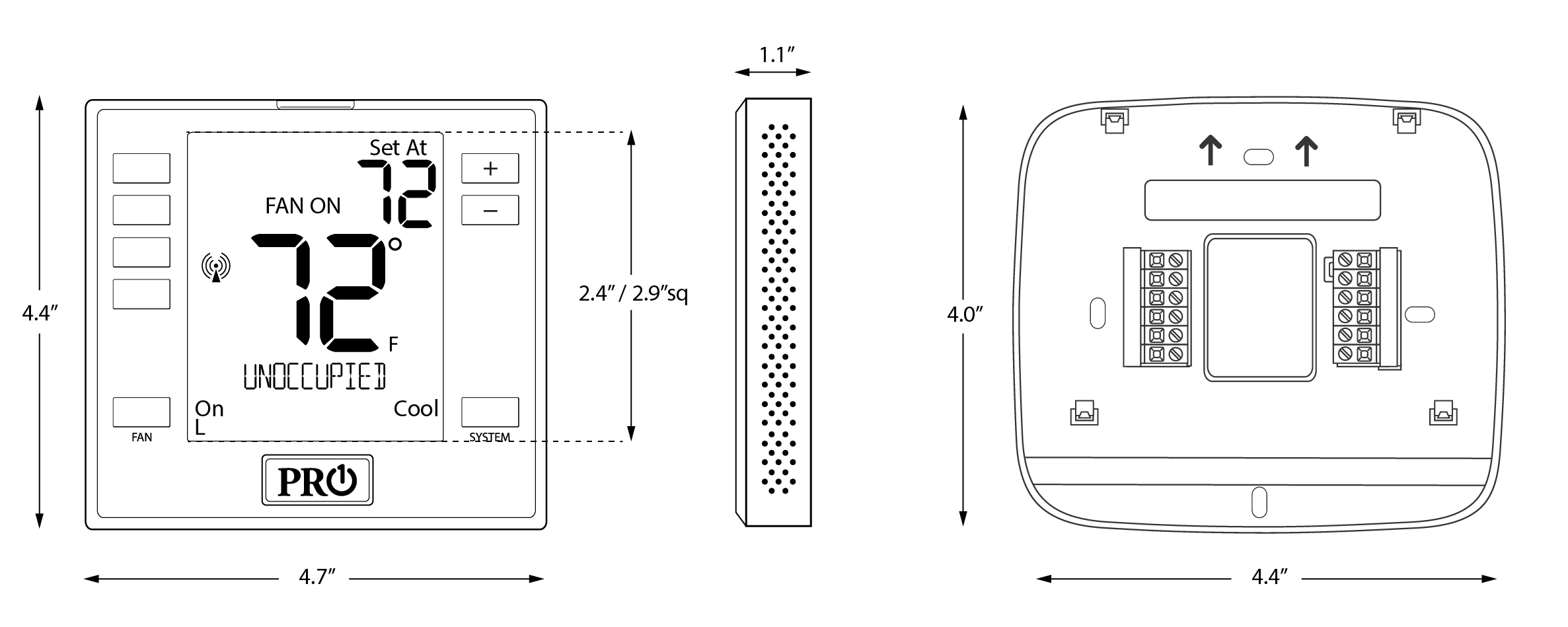

• Display: 4 square inch display
• Backlight: Blue back-light
• Terminal Designation: B, C, G, W/E, O, Rc, Y, Y2, W2, S1, S2, Rh
• Height: 1.90 inches
• Width: 5.30 inches
• Approximate Length: 5.30 inches
• Approximate Weight: 0.85 pounds
• Energy Star: No
