Ruud SP20131 Horizontal Extension Vent Kit 4 in Water Heater

Product Description

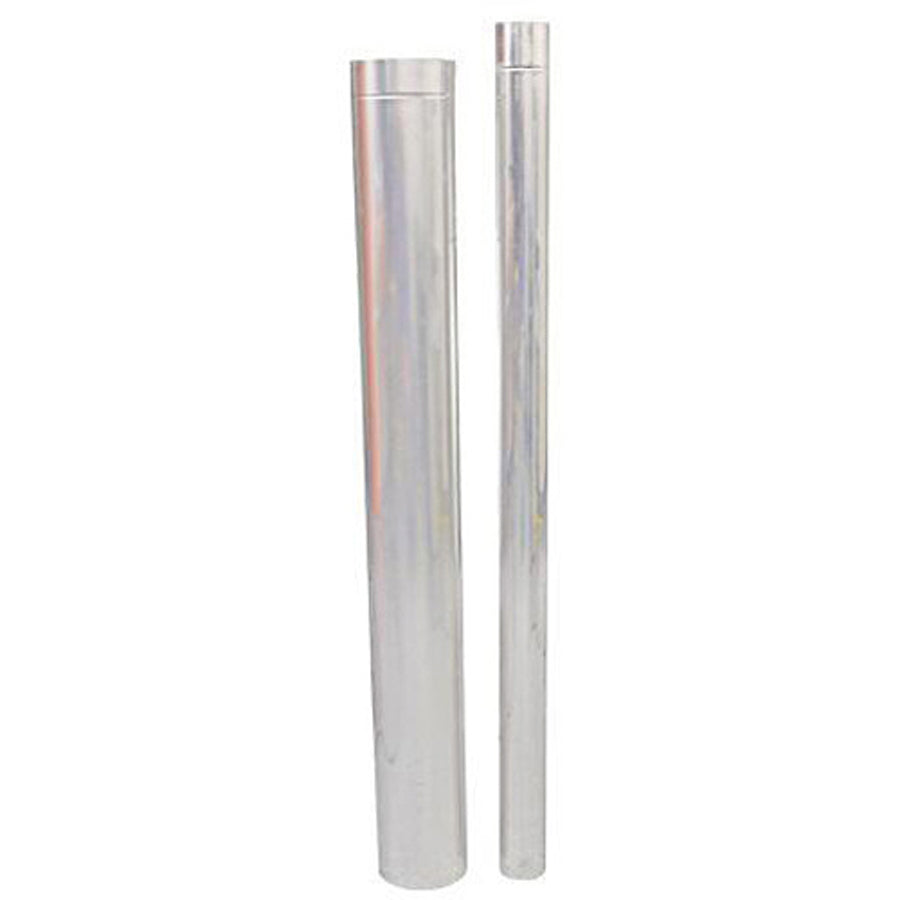

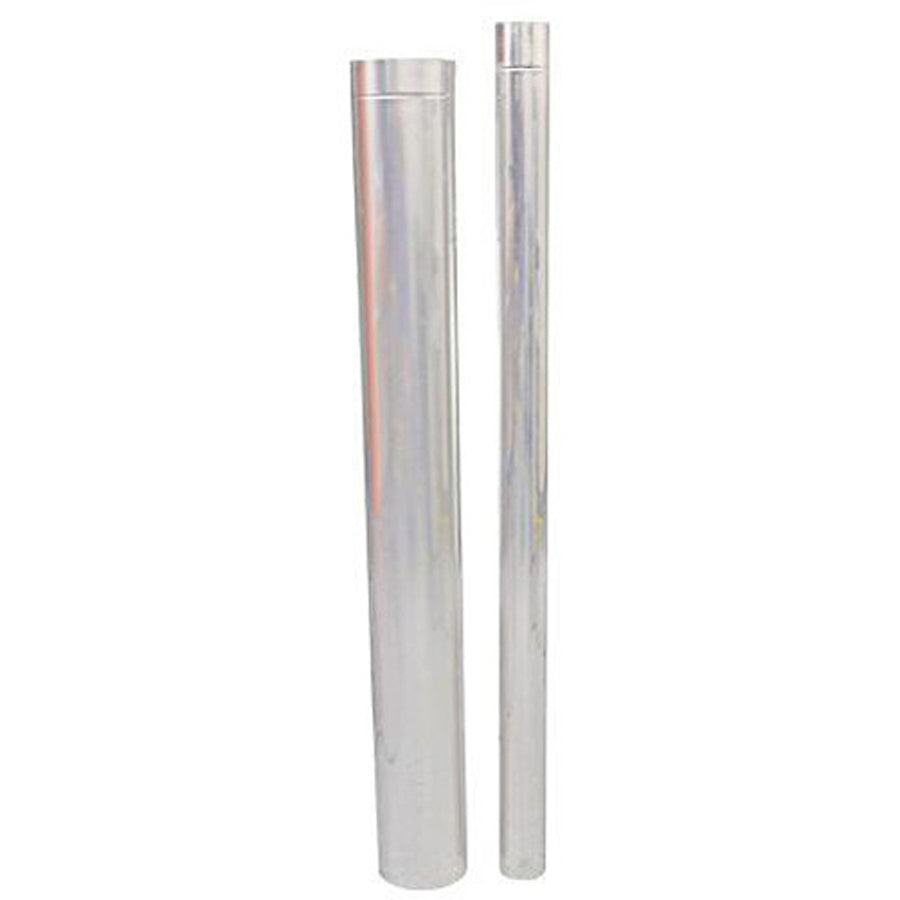

The RUUD SP20131 is a 4-inch horizontal extension vent kit designed for residential water heater venting applications. The kit includes a vent tube, silicone band, and self-drill screws, providing all the hardware needed for a complete horizontal vent extension installation. At 5.75 pounds and measuring 54.0 inches in length, this kit is sized for standard horizontal vent runs on power-vent or direct-vent water heaters. Licensed plumbers and HVAC technicians install this component as part of a compliant venting system.

This vent kit is intended for horizontal venting configurations on residential water heaters. It is typically installed where the vent must extend laterally before exiting the structure, such as through a side wall. The self-drill screw and silicone band hardware simplifies field assembly and ensures a secure, sealed connection at the vent tube joint. This kit is appropriate for new installations and vent system modifications.

Key Features

• 4-inch vent tube sized for standard residential water heater vent outlets
• Includes silicone band for a sealed, leak-resistant tube connection
• Self-drill screw included for secure field assembly without pre-drilling
• 54.0-inch vent tube length supports extended horizontal vent runs
• Complete kit reduces the need for separate hardware sourcing on the job

Compatibility

Designed as an OEM-style horizontal extension vent kit for residential water heaters requiring a 4-inch horizontal vent configuration.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with local plumbing codes and the water heater manufacturer's venting instructions. Shut off the water heater and allow it to cool before beginning any venting work. Ensure all vent connections are properly sealed and that horizontal vent runs maintain the required slope per the appliance manufacturer's specifications. Do not use this kit on venting systems that require materials or ratings beyond the scope of this component.

Technical Specifications

• Vent Diameter: 4 inches
• Vent Tube Length: 54.0 inches
• Package Length: 54.0 inches
• Package Height: 7.0 inches
• Package Width: 7.25 inches
• Weight: 5.75 pounds
• Included Components: Vent tube, silicone band, self-drill screw

Standard Information

• Brand: RUUD
• Manufacturer Part Number: SP20131
